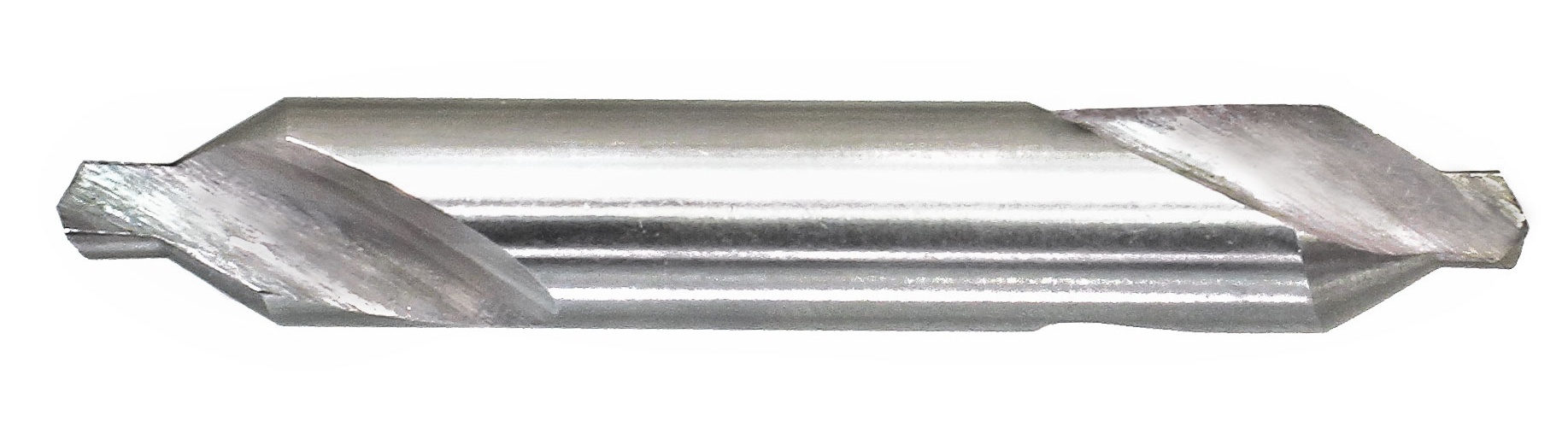

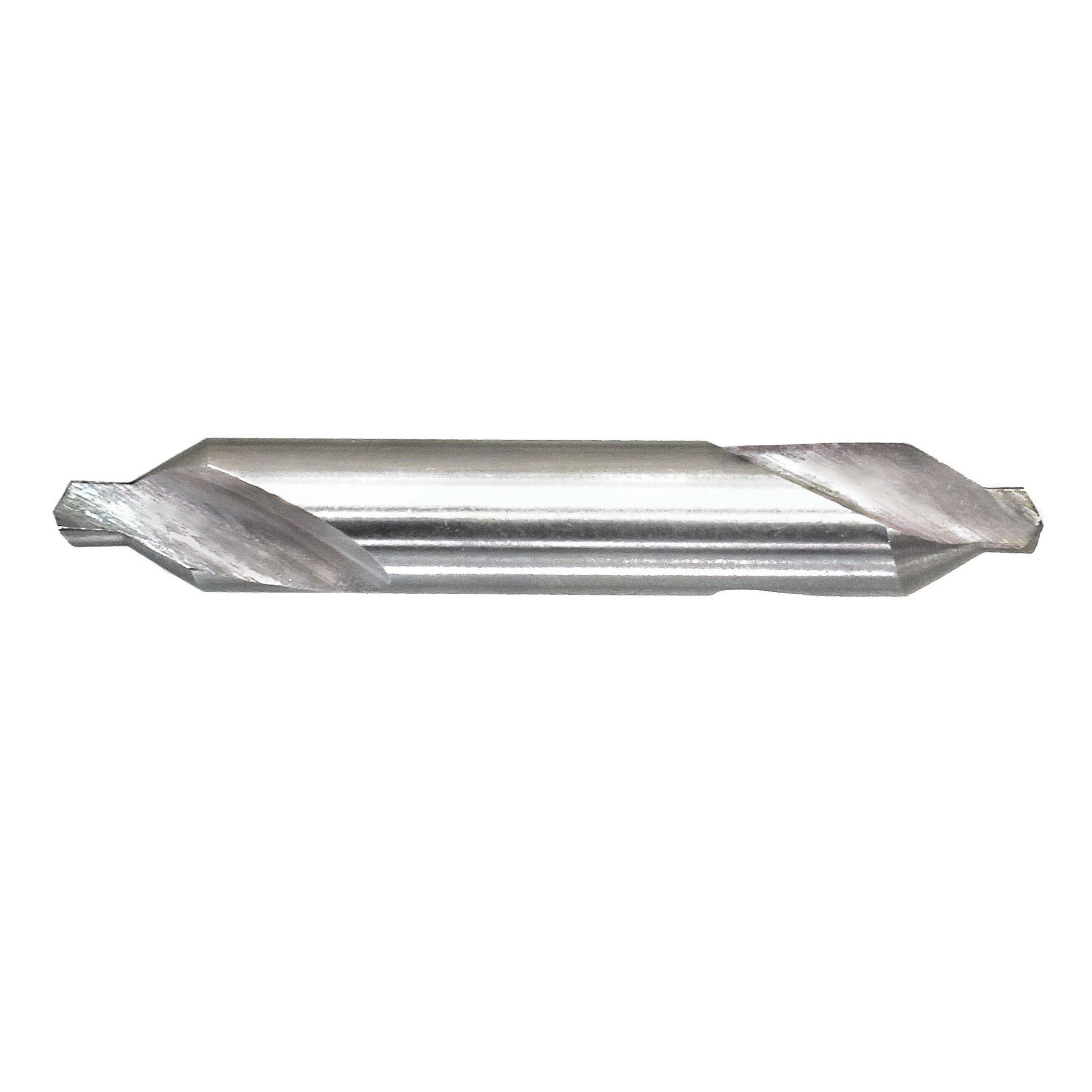

Drillco 350A005 3500 Imperial Plain Combined Drill and Countersink, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 60 deg Included Angle, 60 deg Point Angle, HSS, Uncoated
When metal parts are machined on centers, as in turning or cylindrical grinding, it is always necessary to drill and countersink the center holes to serve as seats or bearings in the machine centers.
-
BrandDrillco
-
UPC045996999068
-
Manufacturer Part Number350A005
-
CountryUSA|Canada
-
FinishUncoated
-
Point Angle60 deg
-
Point Diameter3/16 in
-
MaterialHSS
-
TypeImperial Plain
-
Series3500
-
Shank Size7/16 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialHSS
-
Included Angle60 deg
-
Drill Size - Decimal Inch0.1875 in
-
Drill Size - Fraction3/16 in
-
Body Diameter7/16 in
-
Overall Length2-3/4 in
- Made with premium grade HSS to last longer
- Plain type with single 60 chamfer
- Bright finish for added lubricity
- Double ended for twice the life
- Double ended for twice the life
-
UNSPSC20121600
-
Package Description1/PK
-
SDS
-
Catalog
