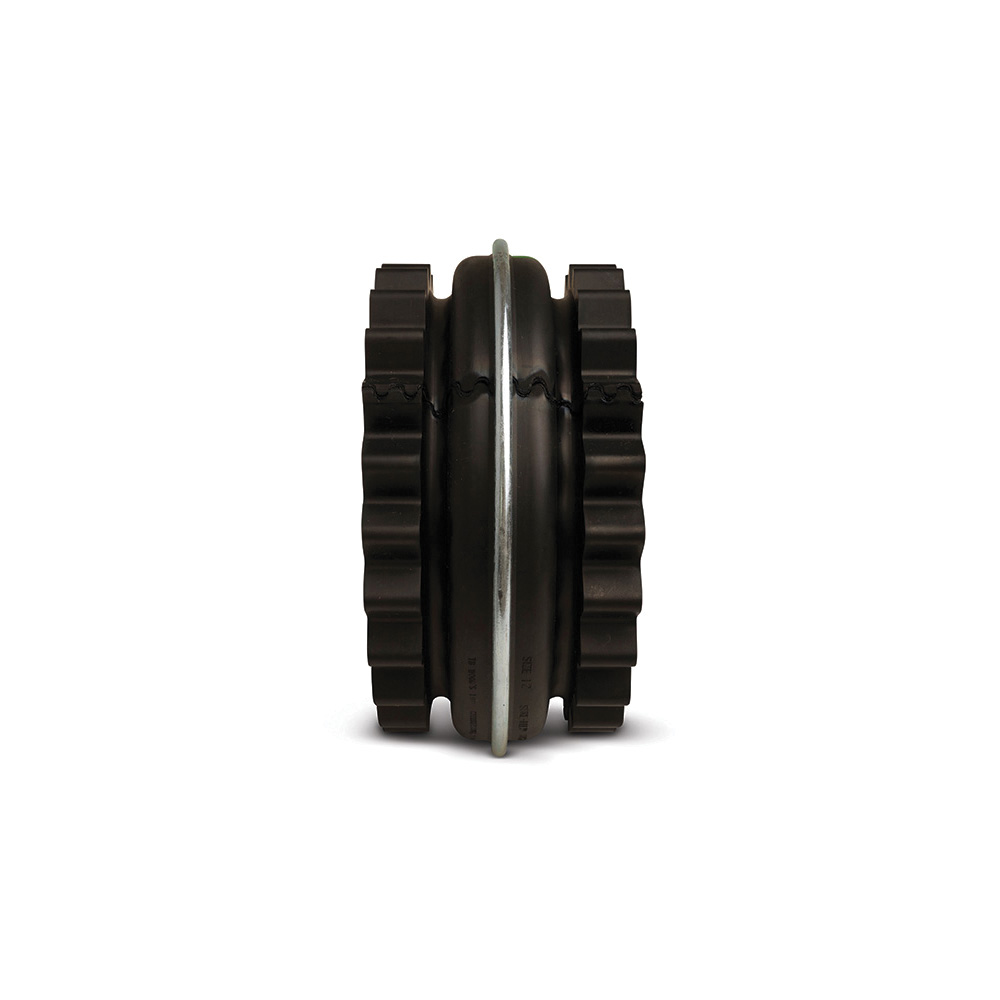

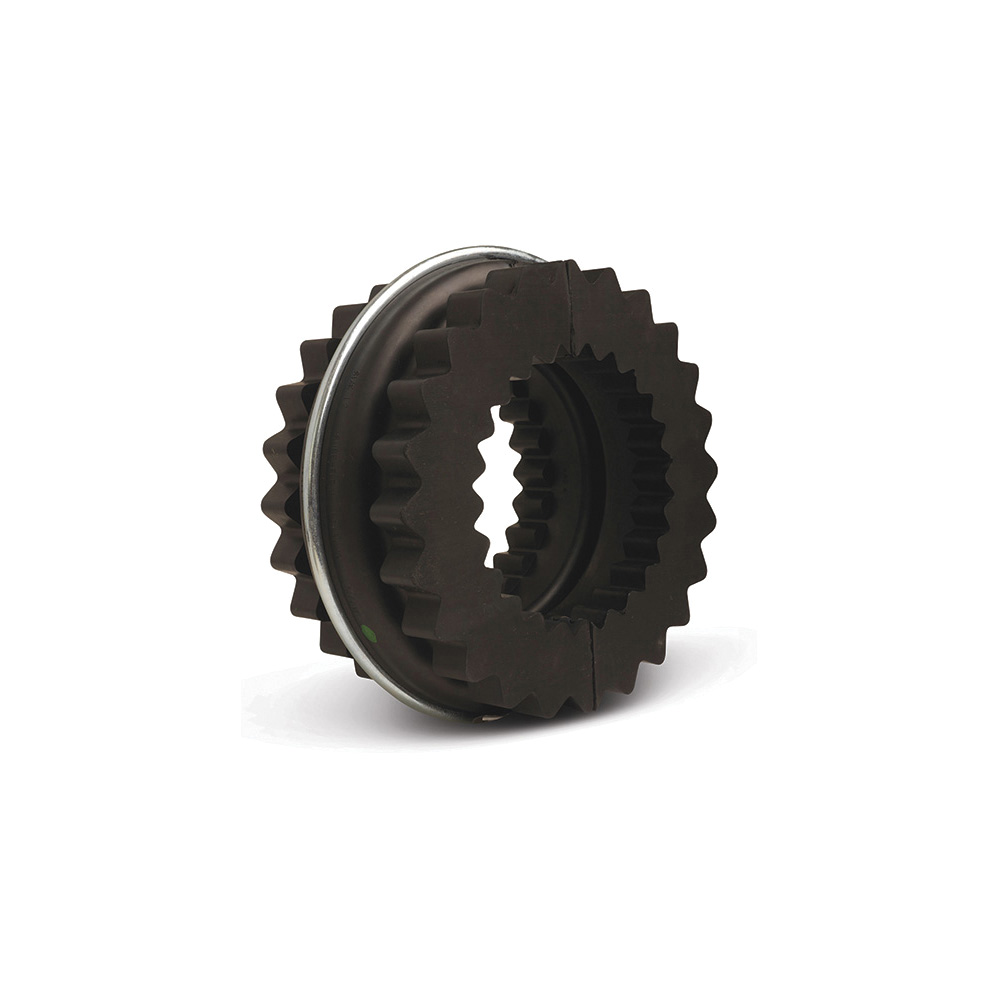

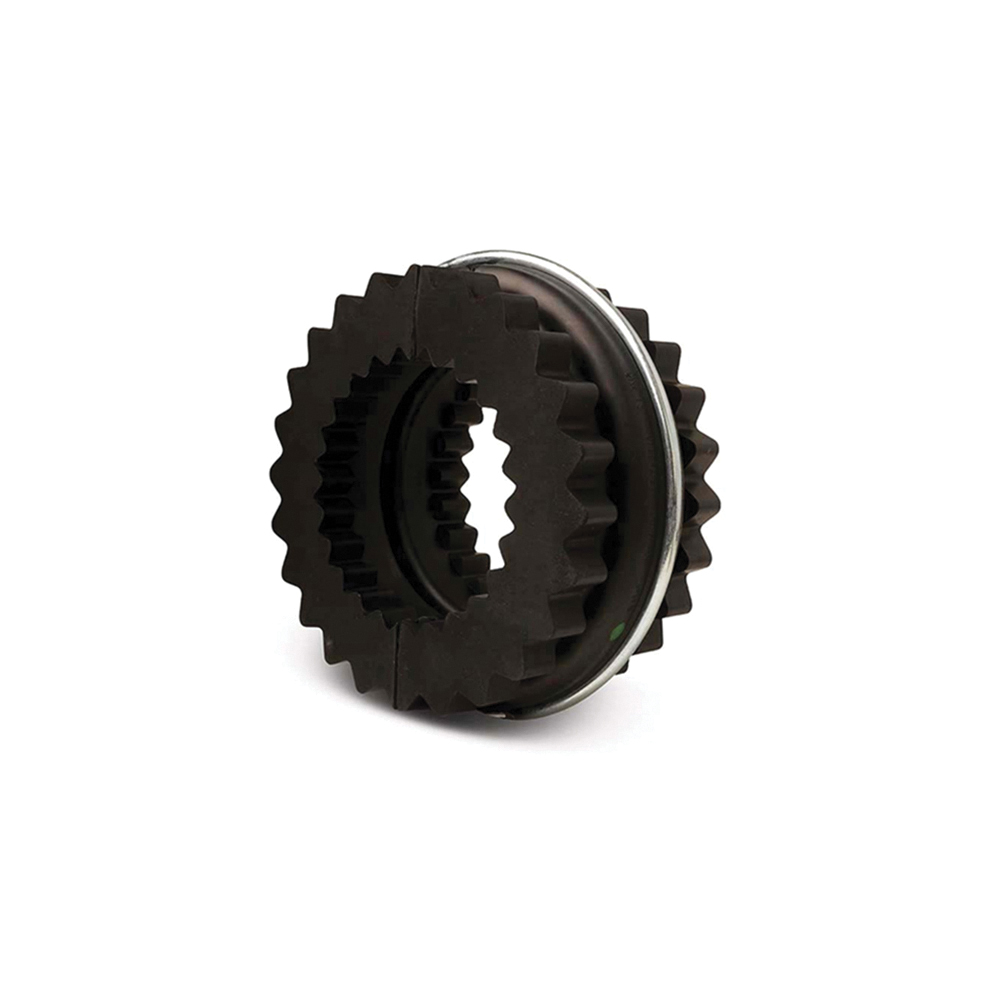

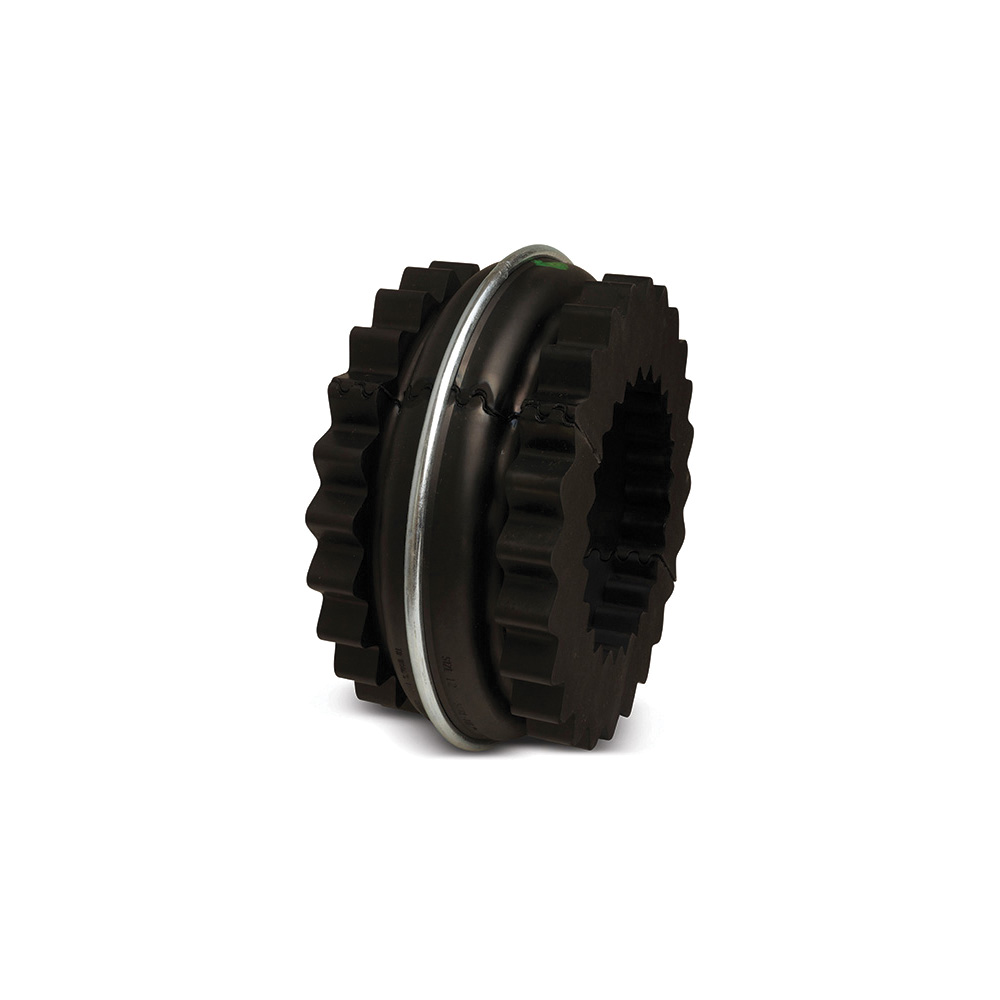

T.B. Woods COUPLING INSERTS TBW 7-N
Our new Sure-Flex® Plus EPDM and neoprene sleeves are best-in-class for coupling performance and value. Their 4-way flexing action absorbs virtually all types of shock, misalignment and end float. With Sure-Flex® couplings, the need for lubrication and maintenance is eliminated.
-
BrandTB Wood's®
-
UPC698672920483
-
Manufacturer Part Number7N
-
CountryUSA
-
Temperature Rating-0 to 200 deg F
-
FinishBlack with Green Dot
-
MaterialNeoprene
-
Maximum Speed5250 rpm
-
Torque Rating940 in-lb
-
Type2-Piece Split Type N
-
Coupling Size7
-
Inside Diameter5/8 to 1-7/8 in
-
Outside Diameter4-11/32 in
-
Length2-3/16 in
-
Suitable For Use WithSure-Flex® Plus Flange and Elastomeric Coupling
-
UNSPSC31163000
-
Standards/ApprovalsCE Certified|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Instruction/Installation Manual
-
Catalog
