Browning COUPLINGS--USE "IDC" L-225 X 202-K

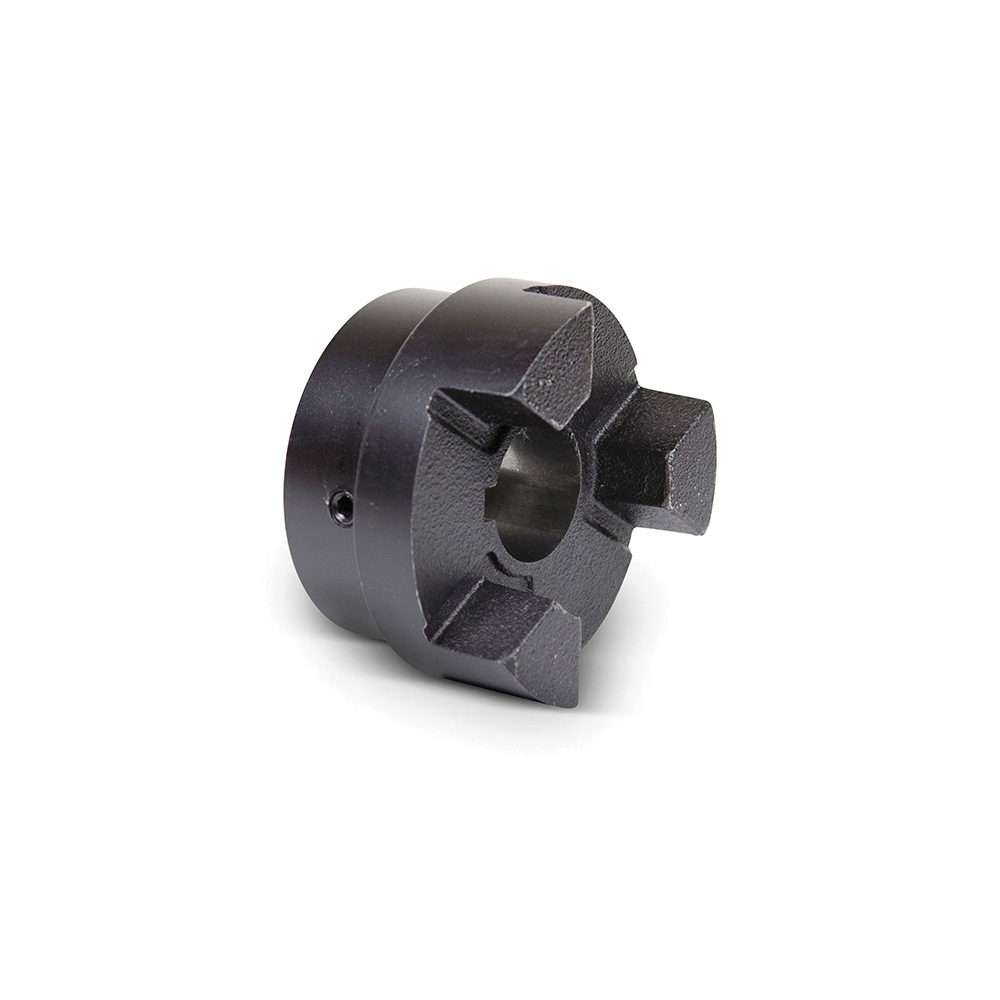

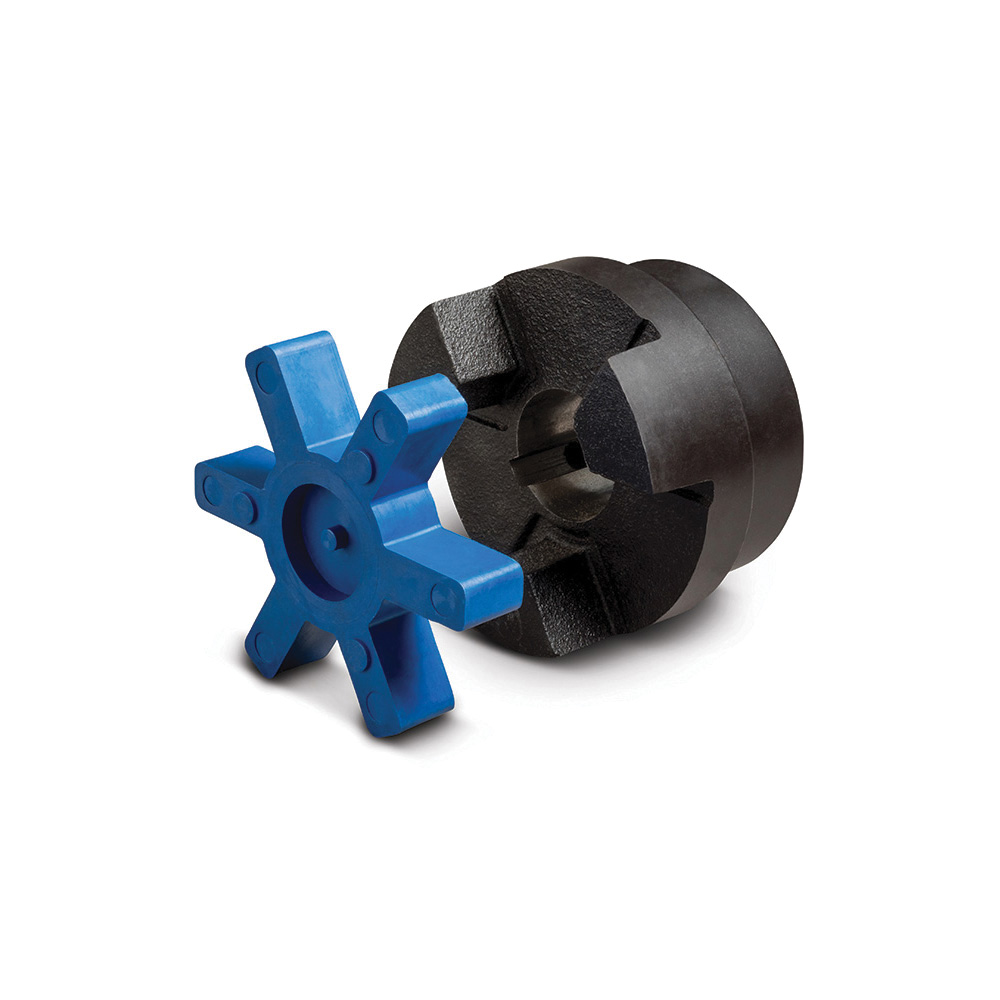

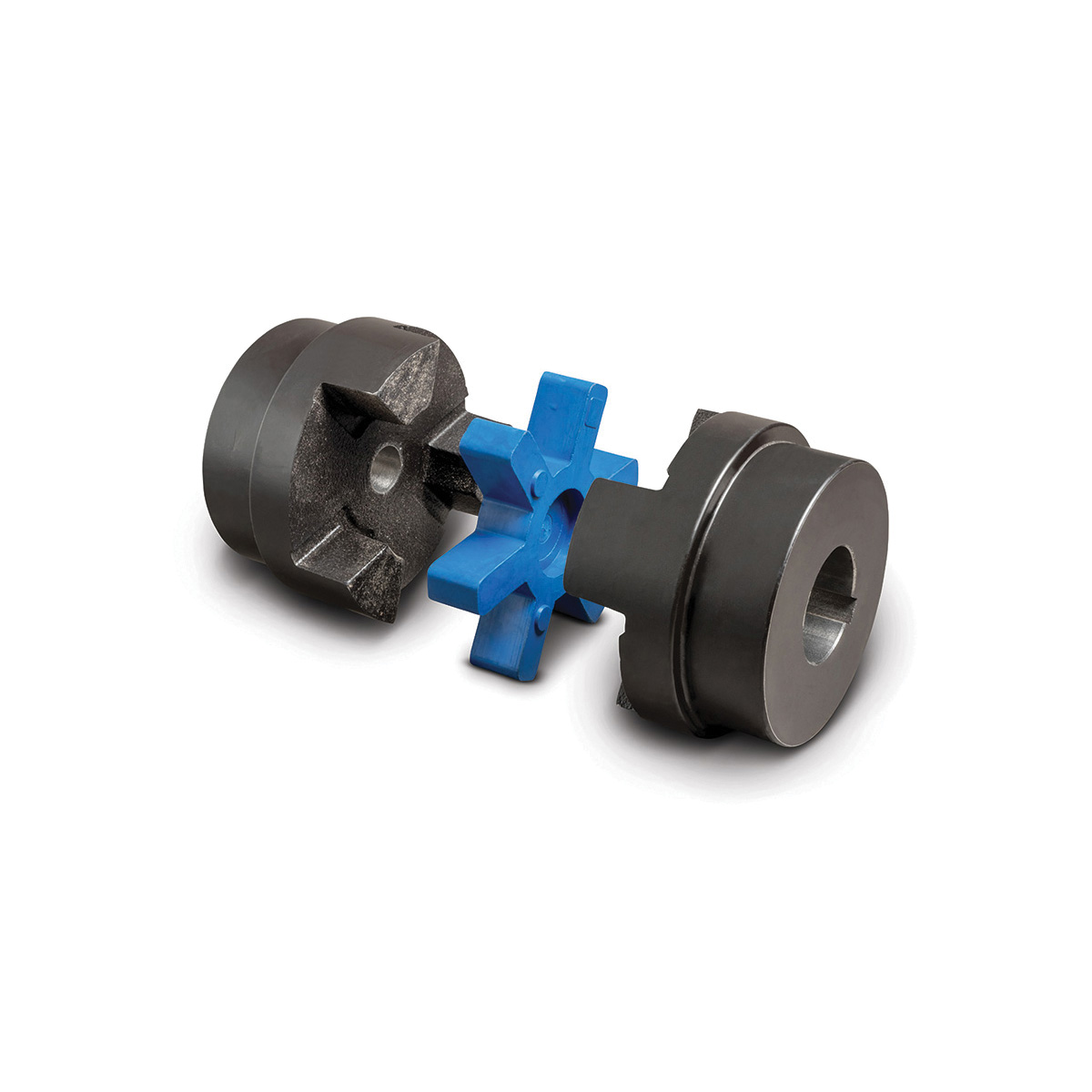

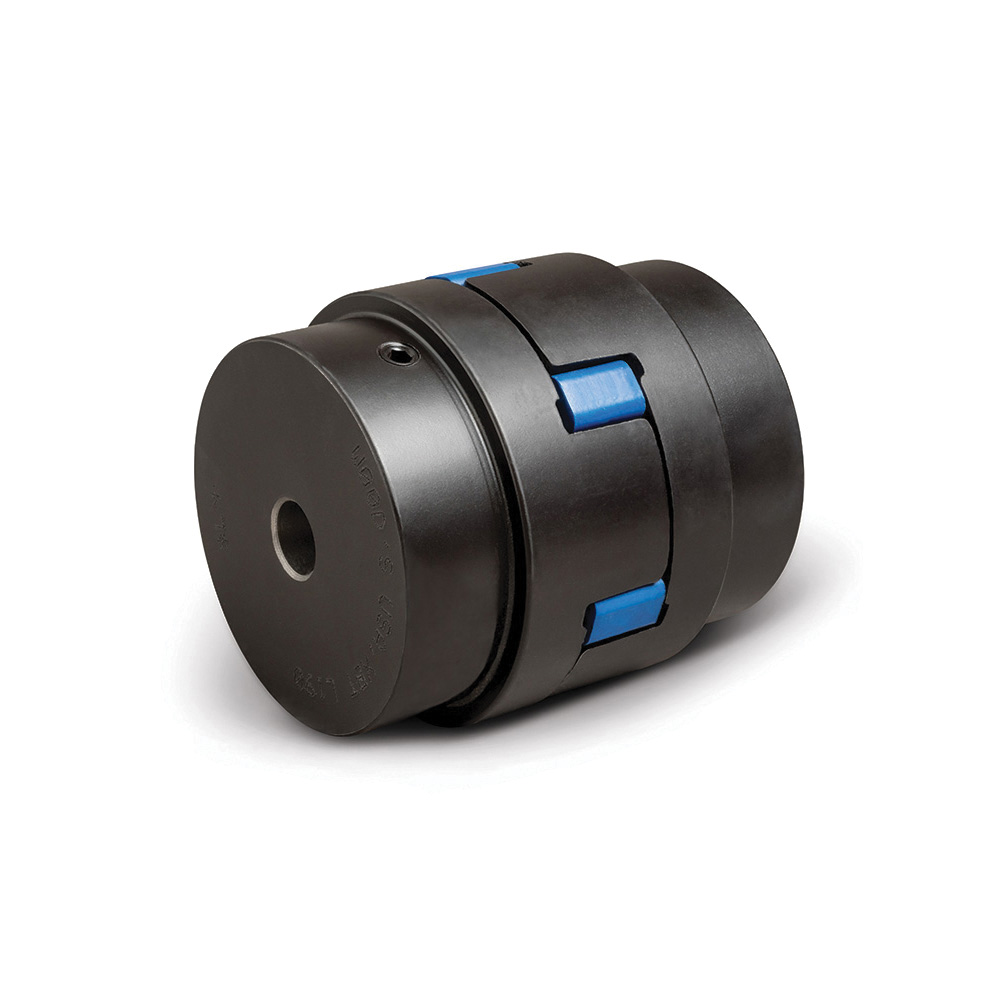

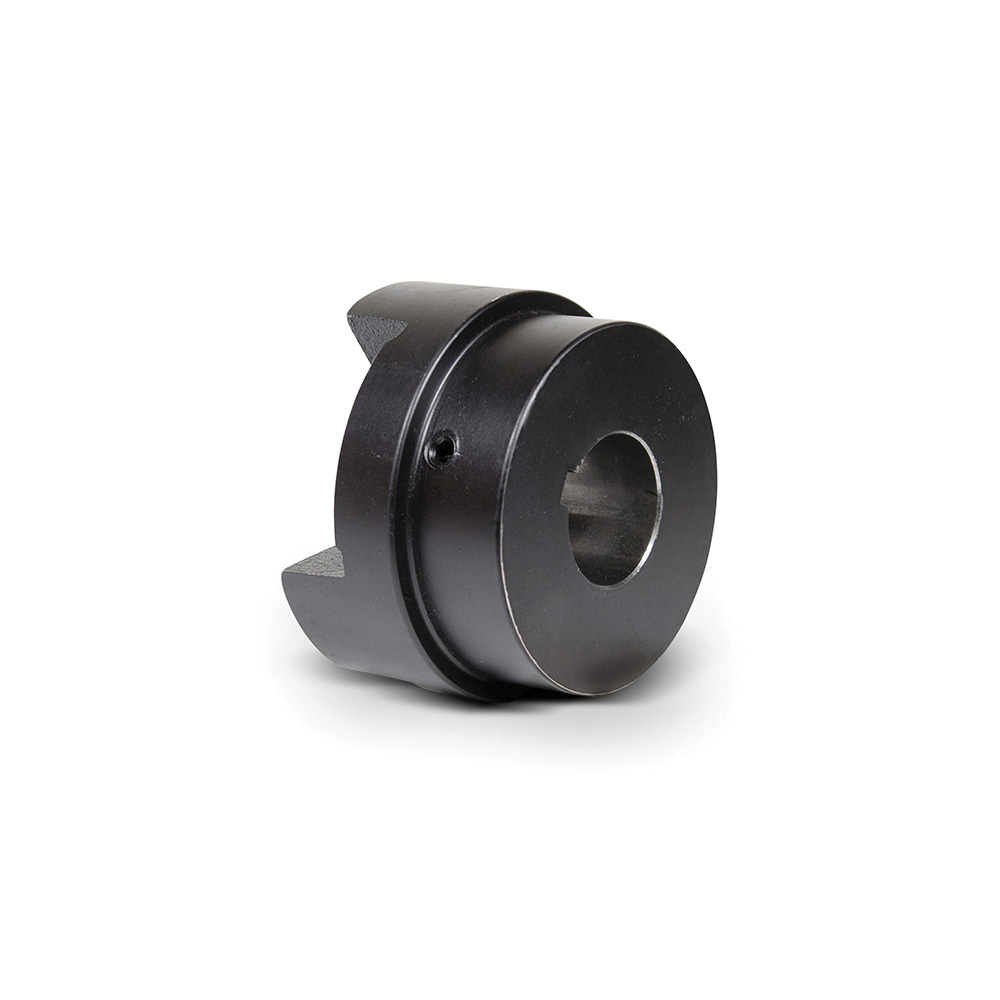

TB Wood's® L225218 Straight L-Jaw Coupling Hub, L225 Coupling, 2-1/8 in Bore, 2.19 in, 4-1/4 in Hub, Cast Iron
-
BrandTB Wood's®
-
UPC698672119177
-
Manufacturer Part NumberL225218
-
CountryUSA
-
MaterialCast Iron
-
Maximum Speed4600 rpm
-
Screw Size7/16-14 UNC-2B x 5/8 in L
-
Coupling SizeL225
-
Hub Diameter4-1/4 in
-
Hub Length5.38 in
-
Keyway Size1/2 x 1/4 in
-
Length Through Bore2.19 in
-
Bore Diameter2-1/8 in
-
UNSPSC31163000
-
Standards/ApprovalsPROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Catalog
-
Instruction/Installation Manual
Recently Viewed
TB Wood's® L225218 Straight L-Jaw Coupling Hub, L225 Coupling, 2-1/8 in Bore, 2.19 in, 4-1/4 in Hub, Cast Iron
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
