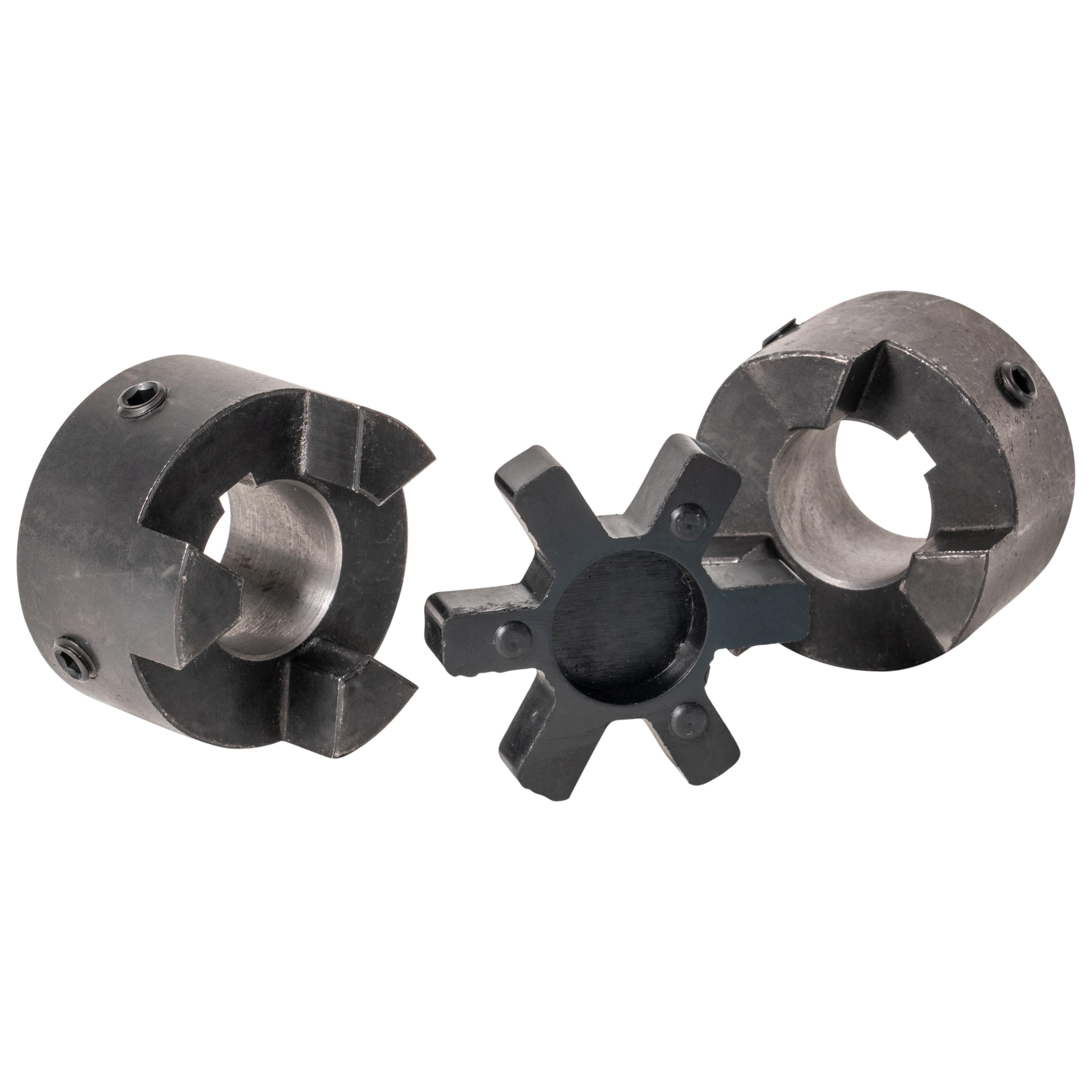

MasterDrive L075-20MM L075 Standard Jaw Coupling, 20 mm Dia Bore, 0.82 in L Through Bore, 1.75 in Dia Hub, Powdered Metal
Jaw Couplings provide standard shaft-to-shaft connection for general duty applications. Two hubs are used in pair with an elastomer or bronze element (spider), each sold seperately. The element eliminates metal-to-metal contact and acts as a shock absorber. The design is fail-safe in that it will perform if the element fails.
-
BrandMasterDrive
-
UPC806372053855
-
Manufacturer Part NumberL075-20MM
-
CountryUSA
-
FinishGray Painted
-
MaterialPowdered Metal
-
TypeStandard
-
Screw Size1/4-20 in
-
SeriesL075
-
Hub Diameter1.75 in
-
Hub Length2.12 in
-
Keyway Size6 x 2.8 mm
-
Length Through Bore0.82 in
-
Bore Diameter20 mm
- Two hubs used in pair with elastomer element (spider), each sold seperatly
- Fail-Safe, will still perform if elastomer element fails
- No metal-to-metal contact
-
Alternative Part Number2105004323
-
Package DescriptionEACH
-
Catalog
-
Line Drawing
