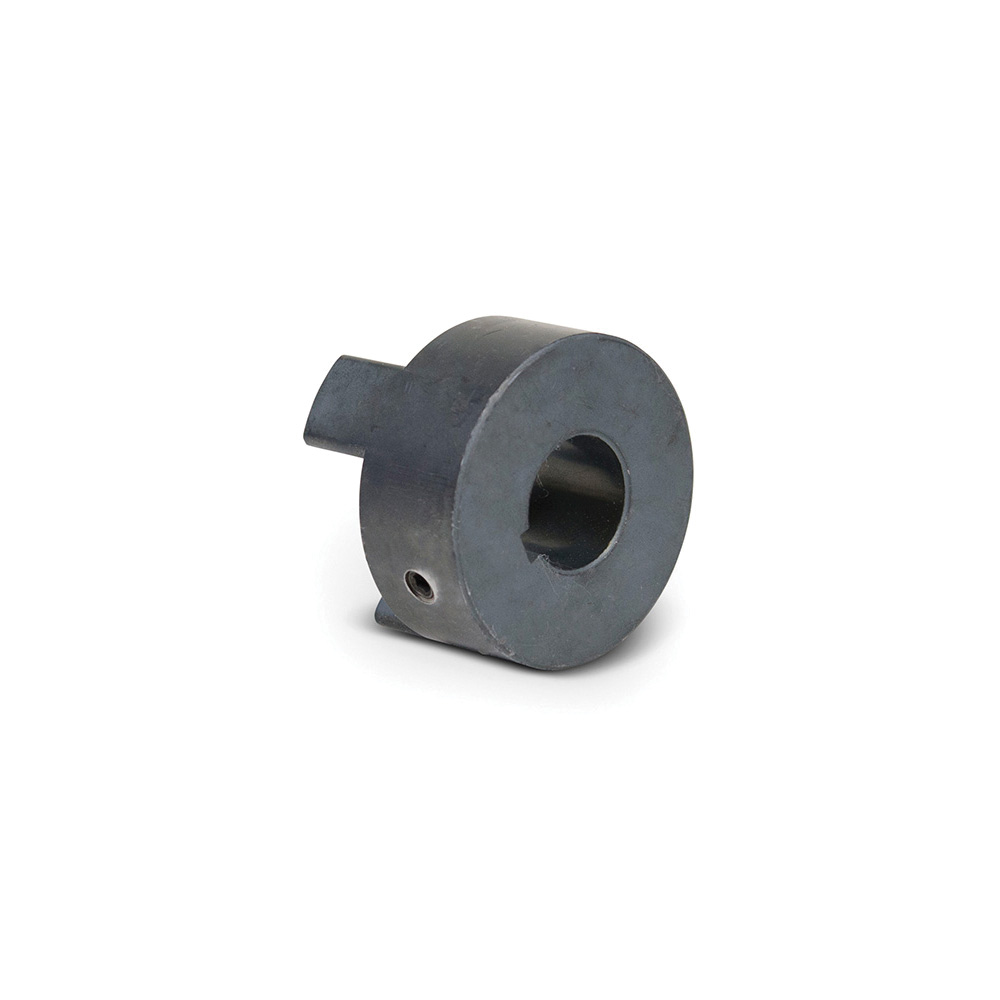

BROWNING® L100X13/8 Straight L-Jaw Coupling Hub, L100 Coupling, 1-3/8 in Bore, 1.38 in, 2.53 mm Hub, Sintered Carbon Steel
Straight L-Jaw Coupling Hub, L100 Coupling, 1-3/8 in Bore, 1.38 in, 2.53 mm Hub, Sintered Carbon Steel
-
BrandTB Wood's®
-
UPC698672110839
-
Manufacturer Part NumberL100138
-
CountryUSA
-
MaterialSintered Carbon Steel
-
Maximum Speed7000 rpm
-
Screw Size5/16-18 UNC-2B x 3/8 in L
-
Coupling SizeL100
-
Hub Diameter2.53 mm
-
Hub Length3-1/2 in
-
Keyway Size5/16 x 5/32 in
-
Length Through Bore1.38 in
-
Bore Diameter1-3/8 in
-
UNSPSC31163000
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Catalog
-
Instruction/Installation Manual
