Browning COUPLINGS--USE "IDC" L-075 X 007-K

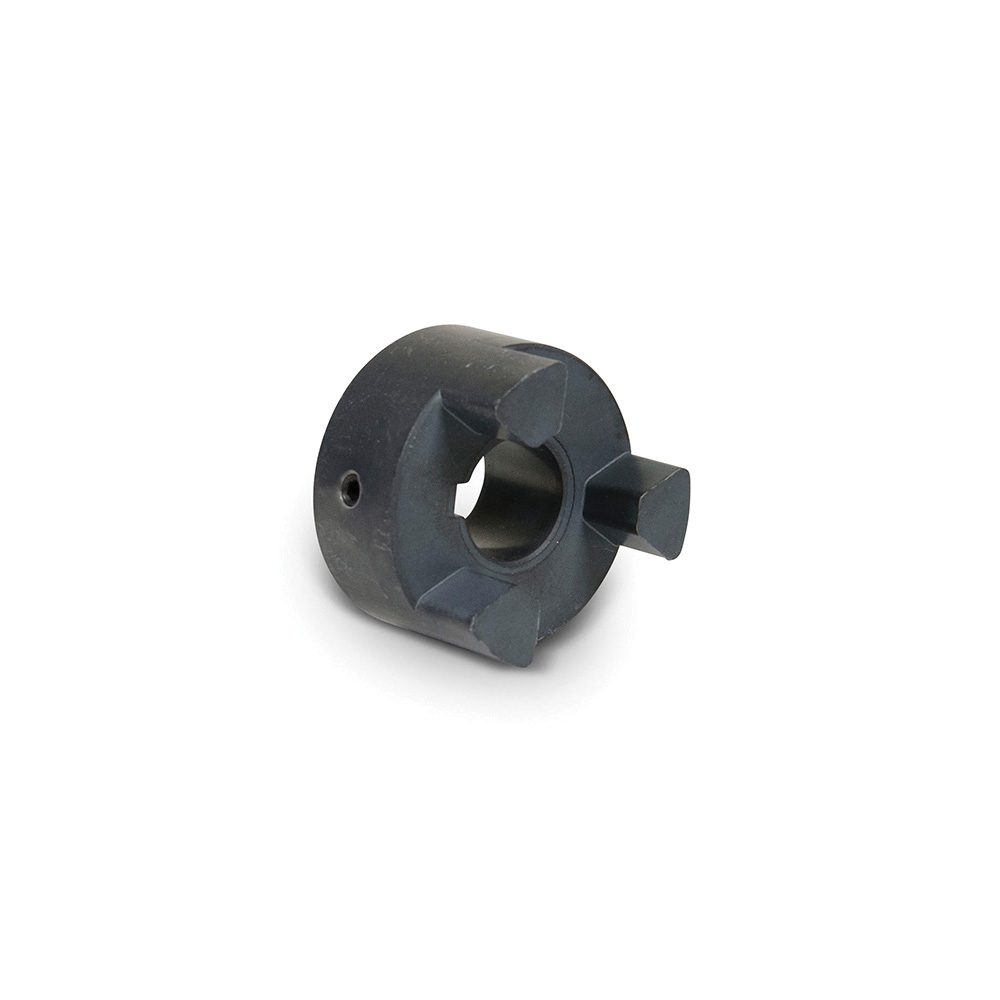

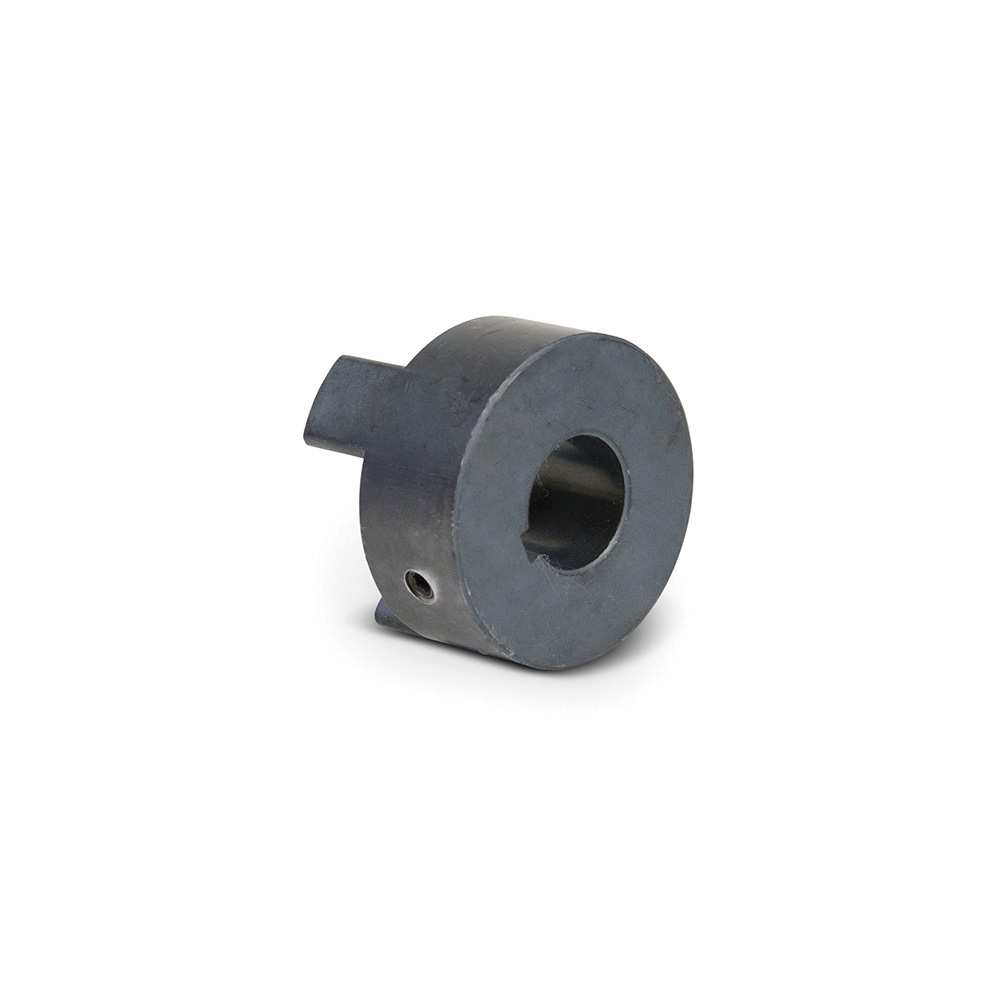

TB Wood's® L0757/16 Straight L-Jaw Coupling Hub, L075 Coupling, 7/16 in Bore, 0.81 in, 1-3/4 in Hub, Sintered Carbon Steel
-
BrandTB Wood's®
-
UPC698672042420
-
Manufacturer Part NumberL0757/16
-
CountryUSA
-
MaterialSintered Carbon Steel
-
Maximum Speed11000 rpm
-
Screw Size1/4-20 UNC-2B x 3/8 in L
-
Coupling SizeL075
-
Hub Diameter1-3/4 in
-
Hub Length2.13 in
-
Keyway Size3/32 x 3/64 in
-
Length Through Bore0.81 in
-
Bore Diameter7/16 in
-
UNSPSC31163000
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
