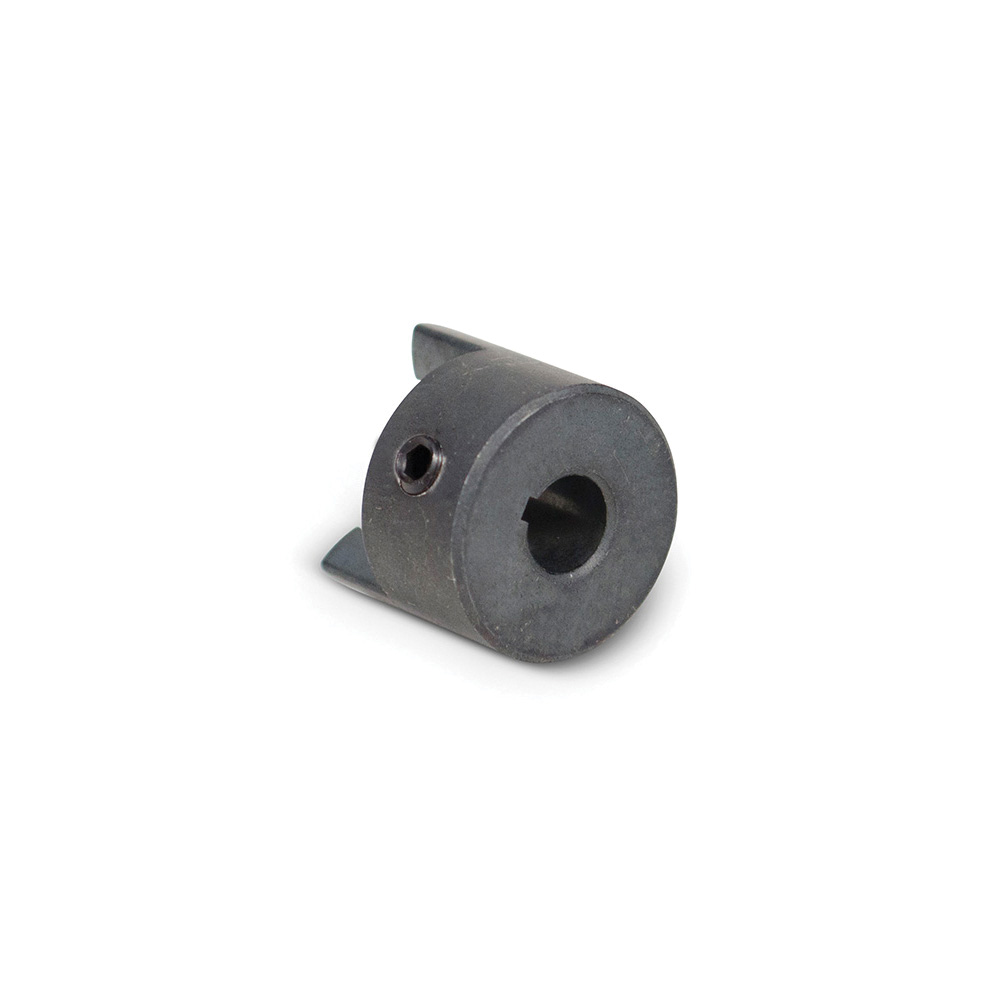

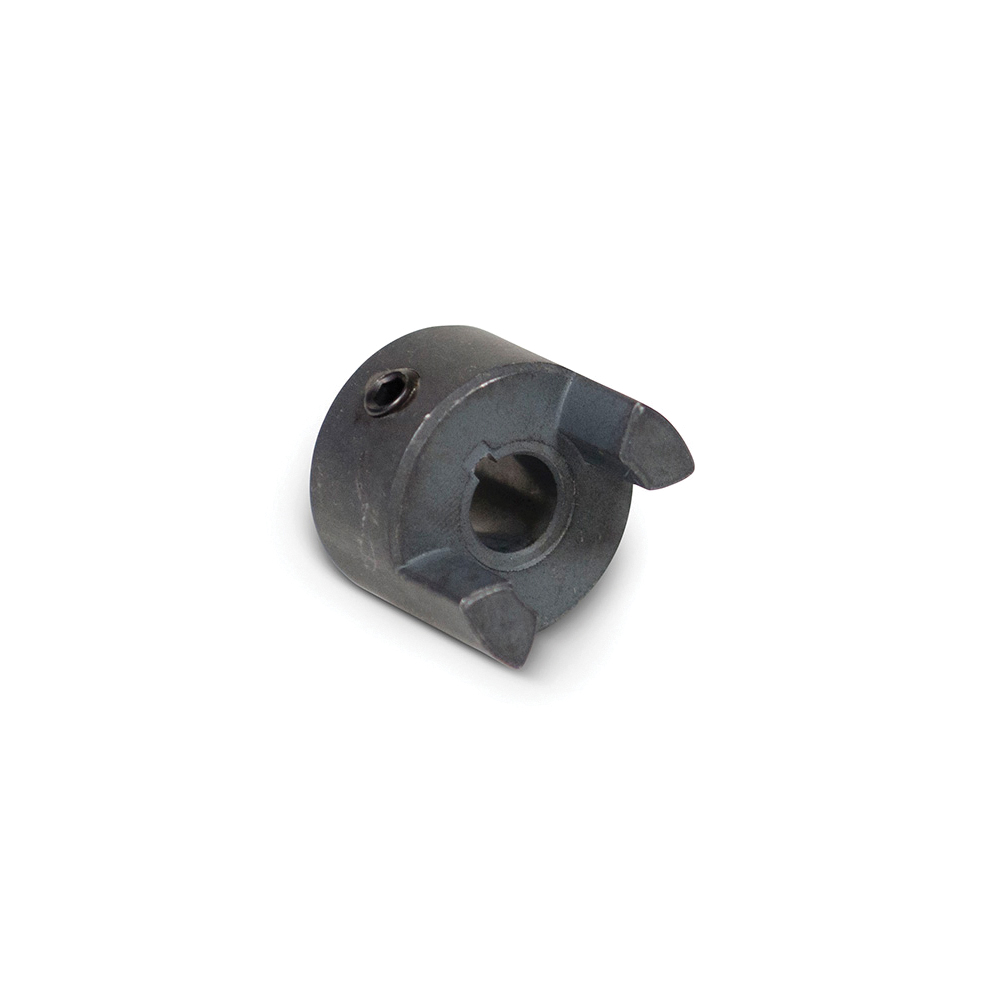

TB Wood's® L03538 Straight L-Jaw Coupling Hub, L035 Coupling, 3/8 in Bore, 0.27 in, 0.63 in Hub, Sintered Carbon Steel
-
BrandTB Wood's®
-
UPC698672043854
-
Manufacturer Part NumberL03538
-
CountryUSA
-
MaterialSintered Carbon Steel
-
Maximum Speed31000 rpm
-
Screw SizeNO 5 to 40 UNC-2B x 1/8 in L
-
Coupling SizeL035
-
Hub Diameter0.63 in
-
Hub Length0.81 in
-
Keyway Size3/32 x 3/64 in
-
Length Through Bore0.27 in
-
Bore Diameter3/8 in
-
UNSPSC31163000
-
Standards/ApprovalsPROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Catalog
-
Instruction/Installation Manual
Recently Viewed
TB Wood's® L03538 Straight L-Jaw Coupling Hub, L035 Coupling, 3/8 in Bore, 0.27 in, 0.63 in Hub, Sintered Carbon Steel
Type J flanges sizes 3, 4 and 5 are manufactured of sintered carbon steel. The powdered metal manufacturing process provides high dimensional accuracy and uniform material properties for high strength. Size 6 is made of high strength cast iron. Flanges are bored-to-size for a slip fit on standard shafts. The outside face of the flange is precision machined, allowing the surface to be used to align the coupling without special tools.
