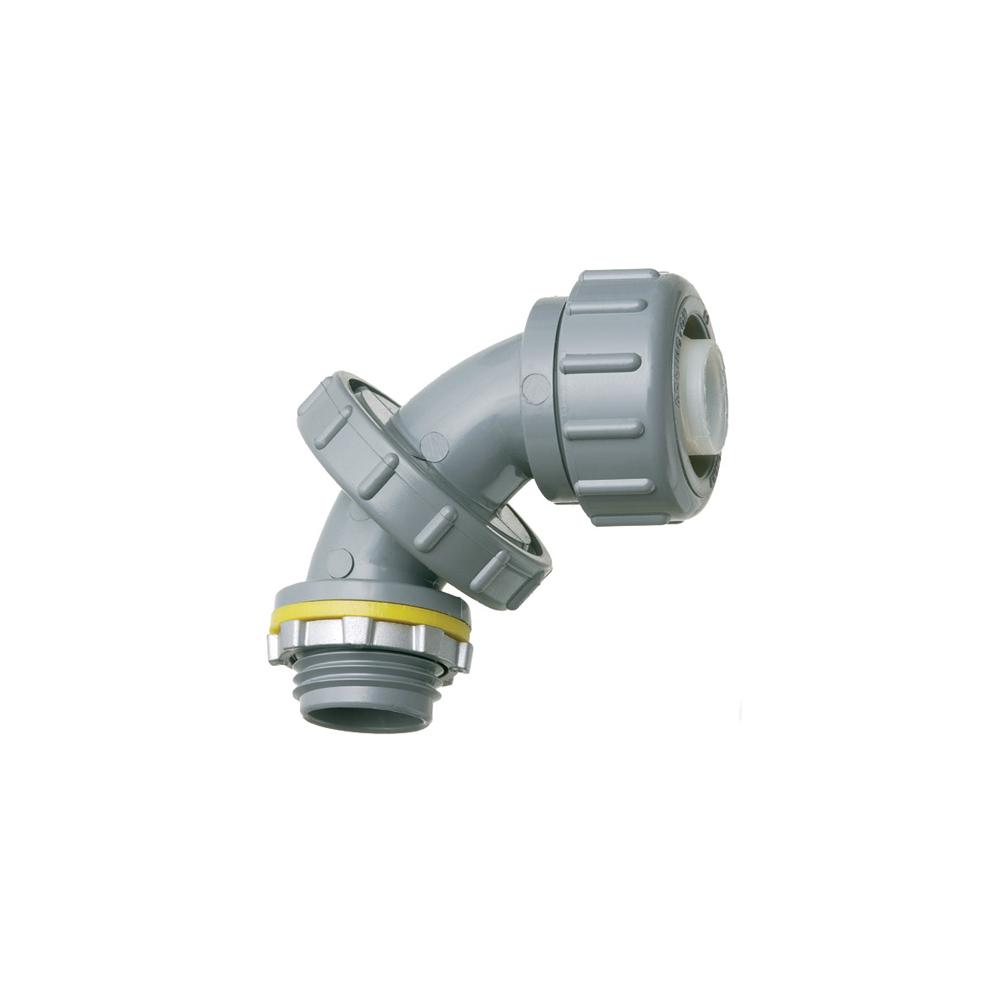

Arlington Zero to 90™ NMLT7590 Non-Metallic Liquidtight Conduit Connector, 3/4 in Trade, 90 deg, Plastic
Arlington Zero to 90™ NMLT7590 Non-Metallic Liquidtight Conduit Connector, 3/4 in Trade, 90 deg, Plastic
-
BrandArlington
-
UPC018997062604
-
Manufacturer Part NumberNMLT7590
-
CountryUSA|Canada
-
MaterialPlastic
-
Trade Size3/4 in
-
ColorGray
-
TypeNon-Metallic
-
Mounting TypeThreaded
-
Angle90 deg
-
Dimensions2.82 in L x 3.25 in W x 2.59 in H
-
Suitable For Use WithType B Liquidtight Non-Metallic Conduit
- Adjusts for all angles from 0 to 90 deg by simply loosening the center nut, twist to the correct angle and then retightening the nut
- Threaded x screw-in connection
-
Alternative Part Number8280774
-
UNSPSC39121420
-
IDEA Index ID8280774
-
Package DescriptionEACH
-
Standards/ApprovalsUL and CSA
-
Warranty1 year
-
Warranty Information
-
Specification Sheet
-
Line Drawing
