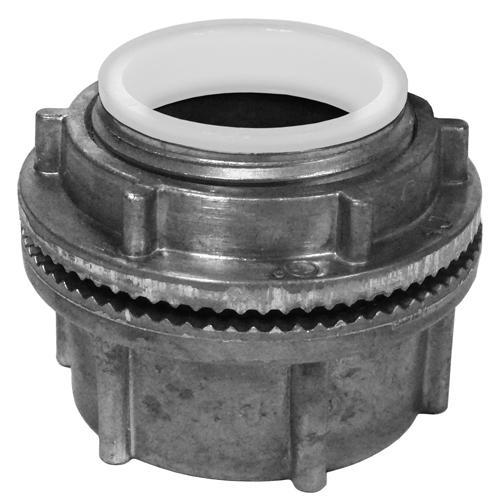

Appleton® NEER™ HUB50DN Watertight Conduit Hub, 1/2 in, For Use With IMC/Rigid Conduit, Die Cast Zinc
Appleton® zinc diecast hubs for use in wet or dry locations, indoors or outdoors. They are used to connect rigid metal conduit or IMC conduit to a threadless opening in an enclosure. The smooth, accurately machined NPT threads facilitate flawless installation.
-
BrandAppleton®
-
UPC687855002115
-
Manufacturer Part NumberHUB50DN
-
CountryUSA|Canada
-
MaterialDie Cast Zinc
-
SeriesHUB
-
Dimensions1.44 in OD x 1.44 in L
-
Size1/2 in
-
Suitable For Use WithIMC/Rigid Conduit
- Rugged metallic construction ensures mechanical protection
- Insulated throat, rated up to 221 deg F, prevents wire abrasion
- Integral O-ring provides watertight seal
- Unique profile permits easy wrenching
- Smooth, accurately tapped threads facilitate installation
- Watertight and corrosion resistant
-
Alternative Part Number10639924
-
UNSPSC39121311
-
IDEA Index ID10639924
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Standard C22.2 No 18.3|CSA Certified 065178|NEMA FB-1|UL 514B Listed|UL File No. E14814|UL File No. E24264|UL File No. E11853|UL Listed for Class I, Div 2, Class II, Div 1 and 2, Class III|NEC 501.10(B)(4), 502.10(A)(3), 502.10(B)(4), 503.10(A)(1)
-
Specification Sheet
