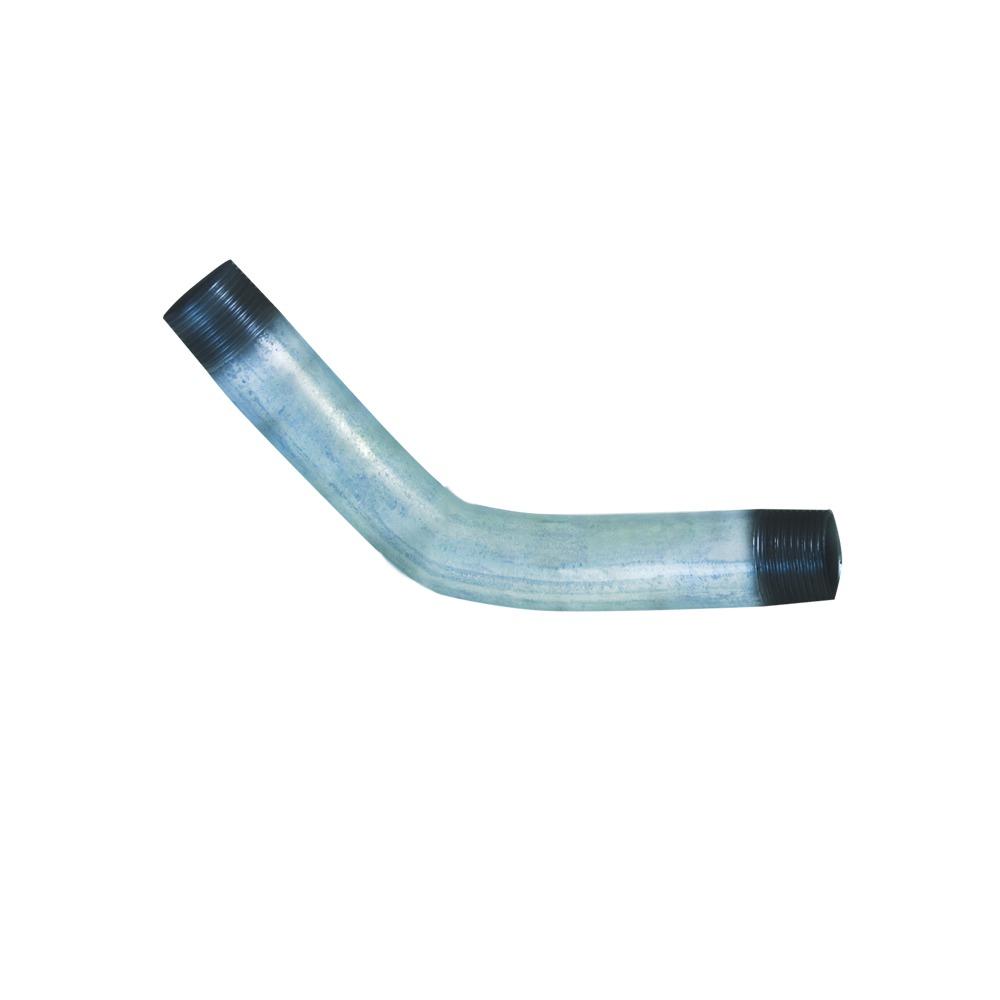

Southwire - Topaz 18 Threaded Conduit Elbow, 3 in Trade, 45 deg, Steel, Galvanized
Topaz's Rigid 45° elbow is precision manufactured to deliver optimum safety and performance. Fabricated from galvanized steel for low conductivity and high corrosion resistance, all surfaces, both interior and exterior are defect free to ensure a secure connection to Rigid conduit and to preserve longevity. Available in sizes from 1/2” to 6”; UL listed, HDG, meets Federal specification WW-C-563.
-
BrandSouthwire - Topaz
-
UPC751338333703
-
Manufacturer Part Number18
-
CountryUSA
-
FinishGalvanized
-
MaterialSteel
-
Radius13 in
-
Trade Size3 in
-
TypeThreaded
-
Angle45 deg
-
Dimensions5-3/16 in L Leg
-
Suitable For Use WithRigid Conduit
- Low conductivity, high corrosion resistance
- Smooth defect free interior and exterior
-
Alternative Part Number8755397
-
UNSPSC39131717
-
IDEA Index ID8755397
-
Package DescriptionEACH
-
Standards/ApprovalsUL 6/514B|cULus E223147|CSA E223147|ANSI C80.1|Federal Specification WW-C-563, A-A-50552|NEMA/ANSI FB-1|Military Specification Number W-F-406D, W-F-406E, W-F-408D, W-S-610D
-
Warranty1 Year
-
Warranty Information
-
Catalog
-
Specification Sheet
