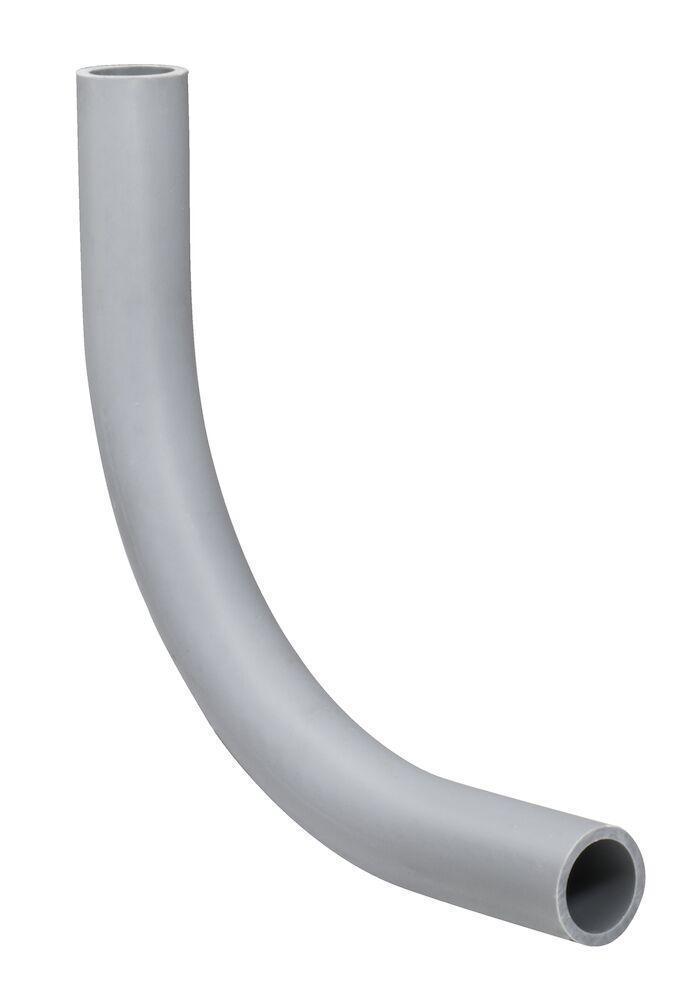

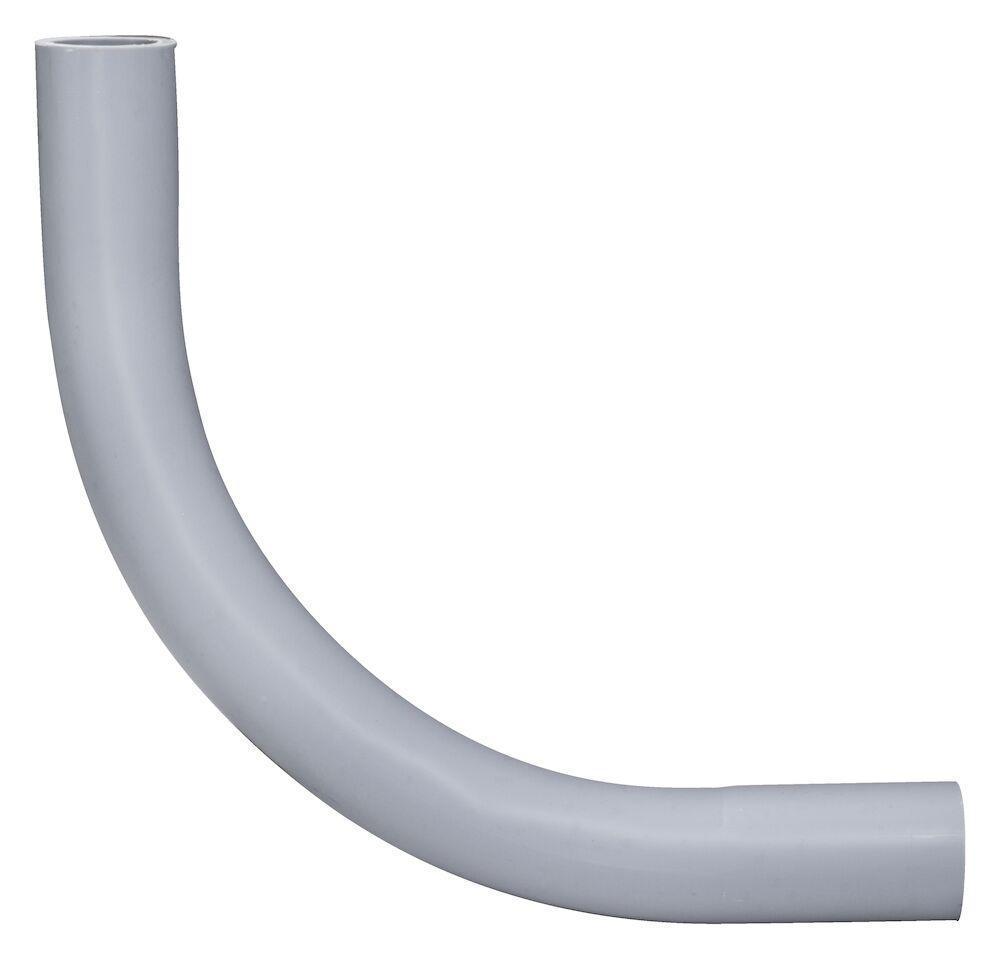

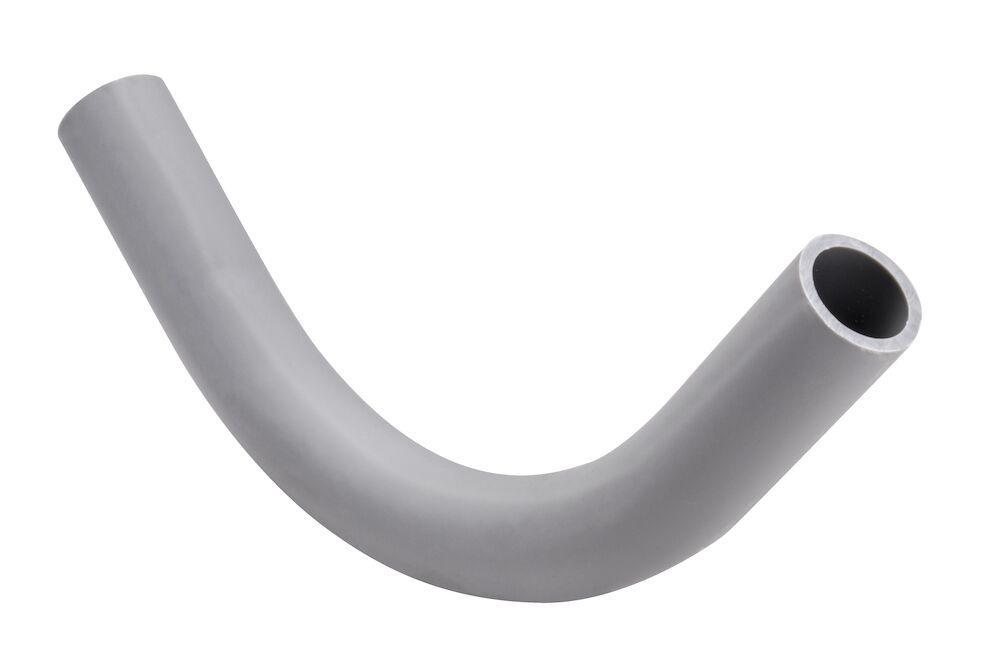

Southwire® 1046TZ Schedule Plain End Elbow, 2 in Trade, 90 deg, PVC
Enable fast, easy and secure 45°directional changes in conduit runs and allow for design configuration changes with Topaz's Schedule 40 PVC 90° Plain End Elbows. Manufactured from rugged, nonconductive PVC, the elbow is finished with two plain, spigot ends. Suitable for above or below ground use and in concrete casement; cULus approved in sizes from 1/2” to 6.”
-
BrandSouthwire®
-
UPC751338230439
-
Manufacturer Part Number1046TZ
-
CountryUSA
-
MaterialPVC
-
Trade Size2 in
-
ColorGray
-
TypePlain End
-
Angle90 deg
-
SeriesSchedule
-
Dimensions2-3/8 in OD
-
Suitable For Use WithConcrete Encasement
-
Radius9.50 in
- Longer radius than "standard" UL elbows
- Both ends of the bend are spigot(plain) end
- Plain-end connections are solvent weld
-
Alternative Part Number18198550
-
UNSPSC39131717
-
IDEA Index ID18198550
-
Package DescriptionEACH
-
Standards/ApprovalsUL E170258|UL 514B|Federal Specification A-A-50563|NEMA/ANSI FB-1|Military Specification Number W-F-406D|W-F-406E|W-F-408D|W-S-610D
-
Specification Sheet
-
Specification Sheet
-
Full Engineering Drawing
