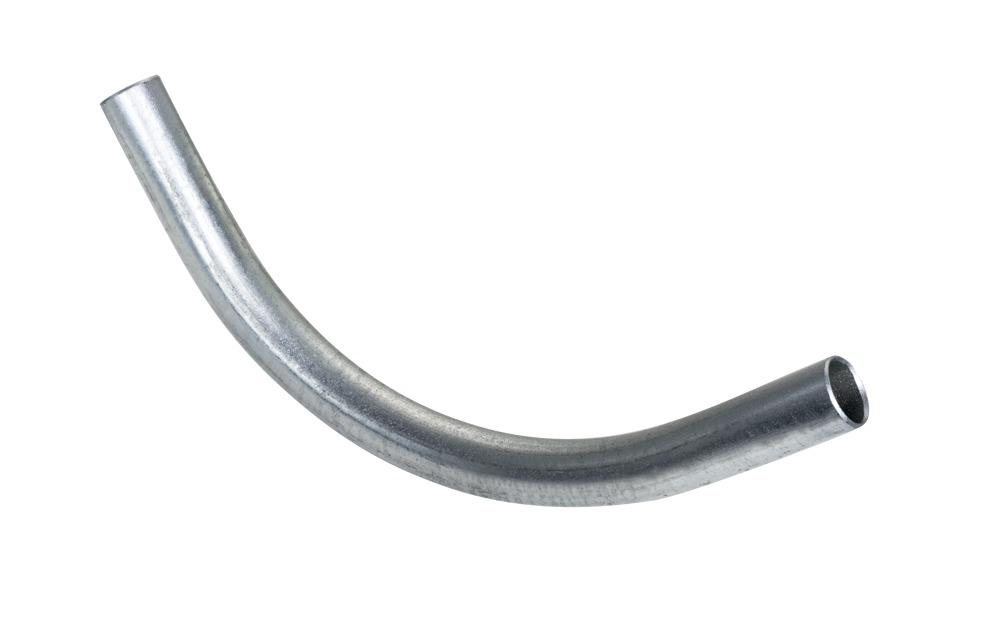

Southwire - Topaz 86 Conduit Elbow, 2 in Trade, 90 deg, Steel, Galvanized
Topaz's EMT 90° elbow is precision manufactured to deliver optimum safety and performance. Fabricated from galvanized steel for low conductivity and high corrosion resistance, all surfaces, both interior and exterior are free from defect to ensure a secure connection to EMT conduit and to preserve integrity and longevity. Available in sizes from 1/2” to 4”; cULus approved, meets Federal specification WW-C-563.
-
BrandSouthwire - Topaz
-
UPC751338304703
-
Manufacturer Part Number86
-
CountryUSA
-
FinishGalvanized
-
MaterialSteel
-
Radius9-1/2 in
-
Trade Size2 in
-
Angle90 deg
-
Dimensions4-3/16 in L Leg
-
Suitable For Use WithEMT Conduit
- Low conductivity, high corrosion resistance
- Smooth defect free interior and exterior
-
Alternative Part Number8753399
-
UNSPSC39121464
-
IDEA Index ID8753399
-
Package DescriptionEACH
-
Standards/ApprovalsUL 514B|UL 797|cULus E197604 Listed|US Federal Spec Number A-A-50552|NEMA/ANSI FB-1|Military Specification:W-F-406D|W-F-406E|W-F-408D|W-S-610D|ANSI C80.3|Federal Spec WW-C-563
-
Warranty1 Year
-
