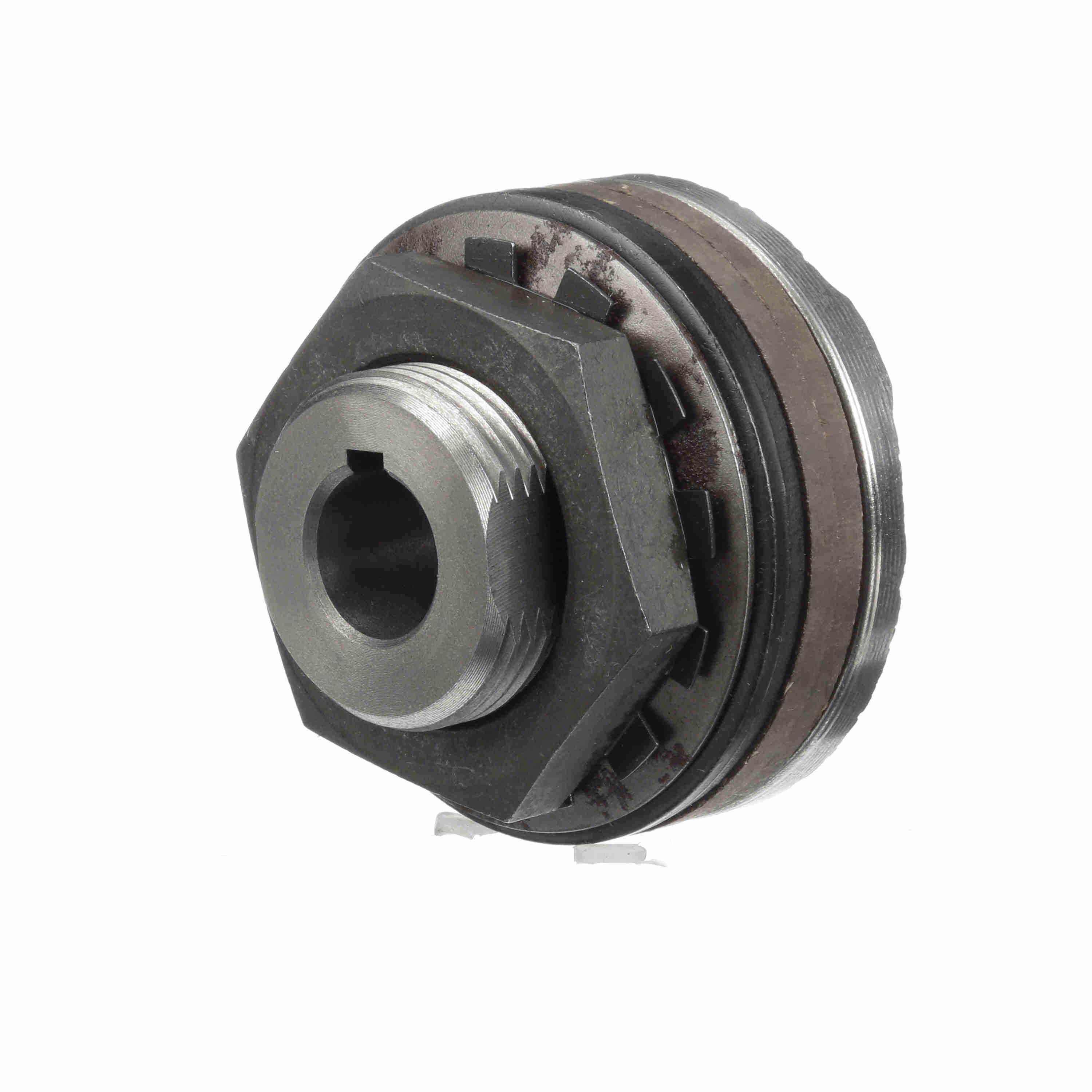

Morse® 465702 TL Series Torque Limiter, 5/8 in Straight Bore, 2-1/2 in OD, 5 to 20 in-lb Torque
The Morse® torque limiter is a protective device that limits torque transmitted in a drive system by slipping when the torque demand exceeds a preset value as a result of shock loads, overloads or machine jams. It automatically re-engages when the overload torque has passed, no resetting is required. The Morse® torque limiter helps prevent machine damage and eliminates costly downtime. Using spring loaded friction surfaces for its operation, the Morse® torque limiter presets slip torque by adjustment of the spring force. This device can be used with a sprocket, gear, sheave or flange plate as the center member that is clamped between two friction facings.
-
BrandMorse®
-
UPC662288478775
-
Manufacturer Part Number465702
-
CountryUSA
-
Maximum Speed1000 rpm
-
Torque Rating5 to 20 in-lb
-
Minimum Sprocket Teeth25 Stock/MTO (NO. 35 Chain), 20 Stock/MTO (NO. 40 Chain), 20 Stock/MTO (NO. 41 Chain), 16 Stock/MTO (NO. 50 Chain)
-
SeriesTL Series
-
Outside Diameter2-1/2 in
-
Bore Diameter5/8 in
-
Bore TypeStraight
-
Overall Length1-7/8 in
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- The load on the friction pads is adjusted so that process torque is transmitted
- An overload causes the unit to slip
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
- The load on the friction pads is adjusted so that process torque is transmitted
- An overload causes the unit to slip
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
- Bushing kits are available in a wide range of bore size and are easily installed
-
Alternative Part Number250A-1 TL 5/8 FB
-
UNSPSC41114510
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
