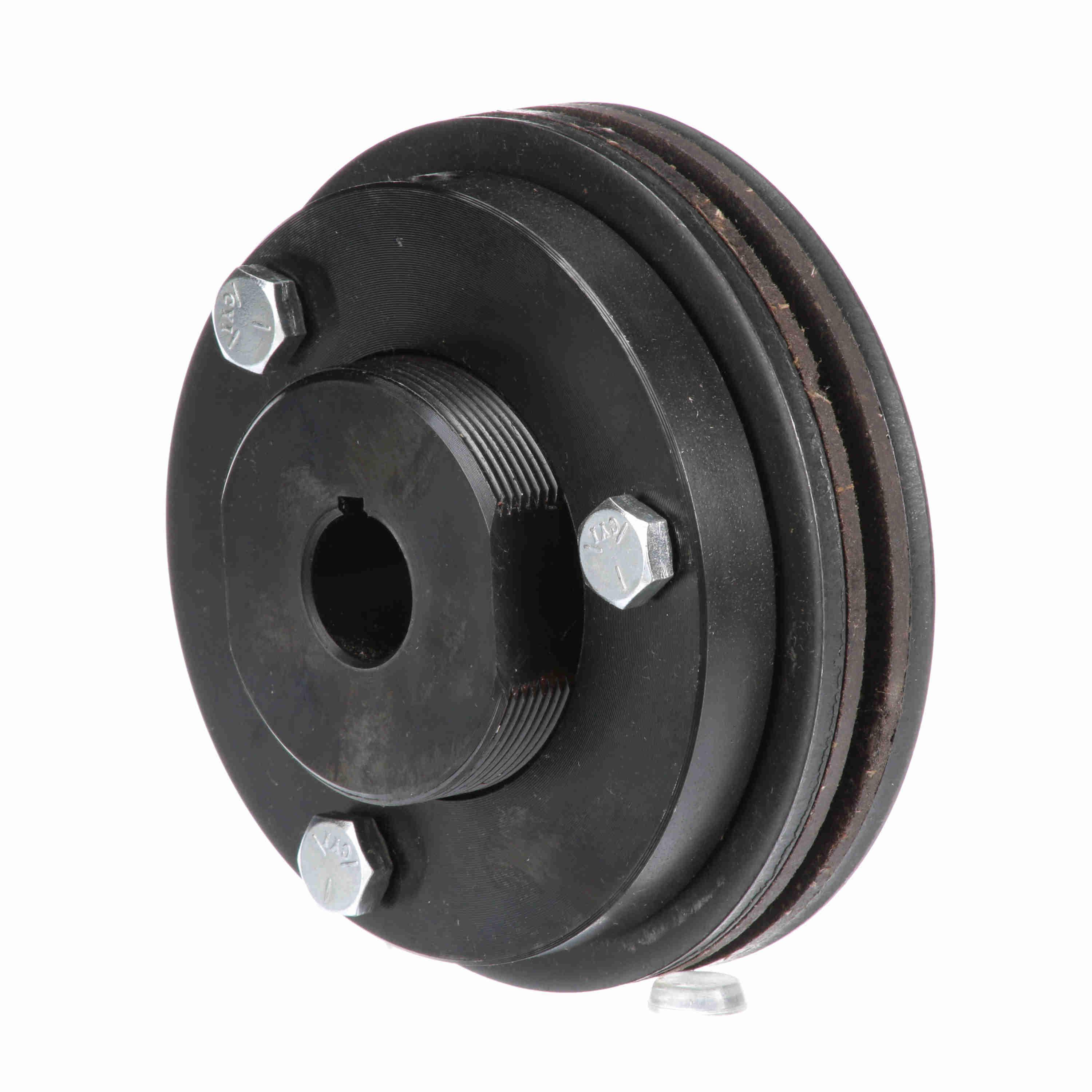

Browning® 1296417 T45L Automatic Torque Limiter, 3/4 in Finished Bore, 4-1/2 in OD, 2800 in-lb (1-Spring)/4900 in-lb (2-Spring) Torque
The Browning® torque limiter is a spring loaded friction style torque overload device. The load on the friction pads is adjusted so that the process torque is transmitted. An overload torque in excess of the set torque causes the unit to slip. This prevents overloads from transmitting through the system. When the load falls below the set level, the torque limiter stops slipping and transmits the torque. A torque limiter does not maintain phase between input and output. Although it is a similar size, the Browning® torque limiter has a higher torque density than the Morse® torque limiter. It is also well suited for applications that trip infrequently at high loads. It is most often used in a chain drive. A specially machined sprocket is inserted between the friction pads and acts as the slip interface. Torque capacity is up to 8800 in-lb.
-
BrandBrowning®
-
UPC662289271627
-
Manufacturer Part Number1296417
-
CountryUSA
-
Maximum Speed1400 rpm
-
Torque Rating2800 in-lb (1-Spring)/4900 in-lb (2-Spring)
-
TypeAutomatic
-
Minimum Sprocket Teeth32 (NO. 40 Chain), 26 (NO. 50 Chain), 22 (NO. 60 Chain)
-
SeriesT45L
-
Outside Diameter4-1/2 in
-
Bore Diameter3/4 in
-
Bore TypeFinished
-
Overall Length2-3/4 in
- Helps prevent machine and product damage caused by shock loads, overloads or machine jams
- Adjustable spring pressure determines overload setting and reengages drive when overload condition subsides
- Compact and friction type unit resets to any position
- Slips under excessive load
- Reversible and no need to reset
- Non asbestos pads
-
Alternative Part NumberT45LX3/4
-
UNSPSC41114510
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
-
Warranty Information
-
Catalog
