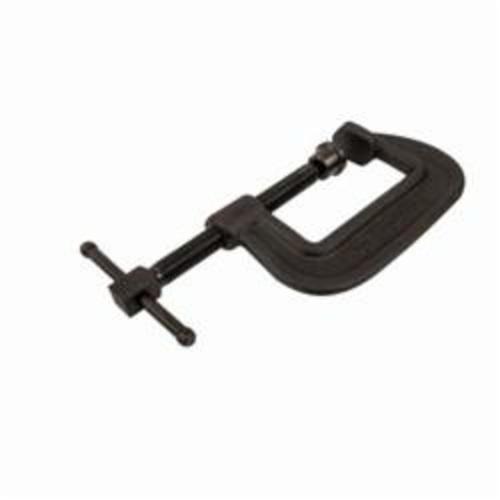

Wilton HEAVY DUTY C-CLAMPS WIL 110
Wilton® Brute Force™ 100 series CClamps are ideal for heavy construction with a drop forged frame, black oxide coating and clamping pressure ranging up to 15,000 lbs. Spindles are full length, machined from a single piece of square, cold drawn steel tempered and hardened. Square spindle heads stand up to heavy wrench tightening.
-
BrandWilton®
-
UPC019907141846
-
Manufacturer Part NumberWL9-14184
-
CountryUSA
-
Throat Depth2-7/8 in
-
Clamping Capacity6 to 10 in
-
Clamping Pressure13750 lb
-
TypeHeavy Duty
-
Screw Size3/4 in
-
Series100 Series
-
Dimensions16.9 in L x 6.6 in W x 1.7 in H
-
Body MaterialForged Steel
- Recommended for heavy industrial and construction job site demands, the heavy duty models are some of the toughest products available for their weight to strength ratio
- 100 series model frames are forged of superior quality steels
- Forged square head spindle with rolled thread
- Black oxide coating for added strength
- PermaPads® are standard and are also black oxide coated
- Standard c-clamps are used for holding and aligning together multiple workpieces
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 6YA88 |
-
Alternative Part Number14184
-
UNSPSC27112120
-
Package Description1/CT
-
WarrantyLifetime
-
