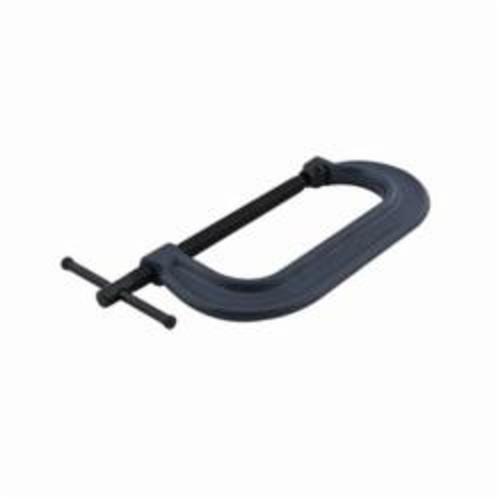

Wilton® WL9-14798 800 Series Regular Duty Standard Throat Depth C-Clamp, 3-7/8 in D Throat, 1-1/8 to 12 in Clamping, 3/4 in Screw
Wilton 800 series c-clamps are a smart value alternative for clamping applications that don't require as much throat depth or clamping pressure as a 400 series clamp. Each is drop forged and features replaceable Perma-Pads and spindles.
-
BrandWilton®
-
UPC019907147985
-
Manufacturer Part NumberWL9-14798
-
CountryUSA
-
Throat Depth3-7/8 in
-
Clamping Capacity1-1/8 to 12 in
-
Clamping Pressure8000 lb
-
TypeRegular Duty Standard Throat Depth
-
Screw Size3/4 in
-
Anvil TypeV-Grooved
-
Series800 Series
-
Dimensions20.9 in L x 10.2 in W x 1.6 in H
-
Body MaterialForged Steel
- Drop forged, regular duty with standard-throat depth
- A value alternative for clamping, not requiring as much throat depth or clamping pressure as a 400 series clamp
- Equipped with Wilton Perma-Pads® and a precision cut, single lead ACME thread
- ACME rolled spindle and black oxide coating
- V-grooved anvil allows secure holding of all materials including rounds, squares and flats
- Standard c-clamps are used for holding and aligning together multiple workpieces
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 18G710 |
-
Alternative Part Number14798
-
UNSPSC27112120
-
Package Description1/CT
-
WarrantyLifetime
-
