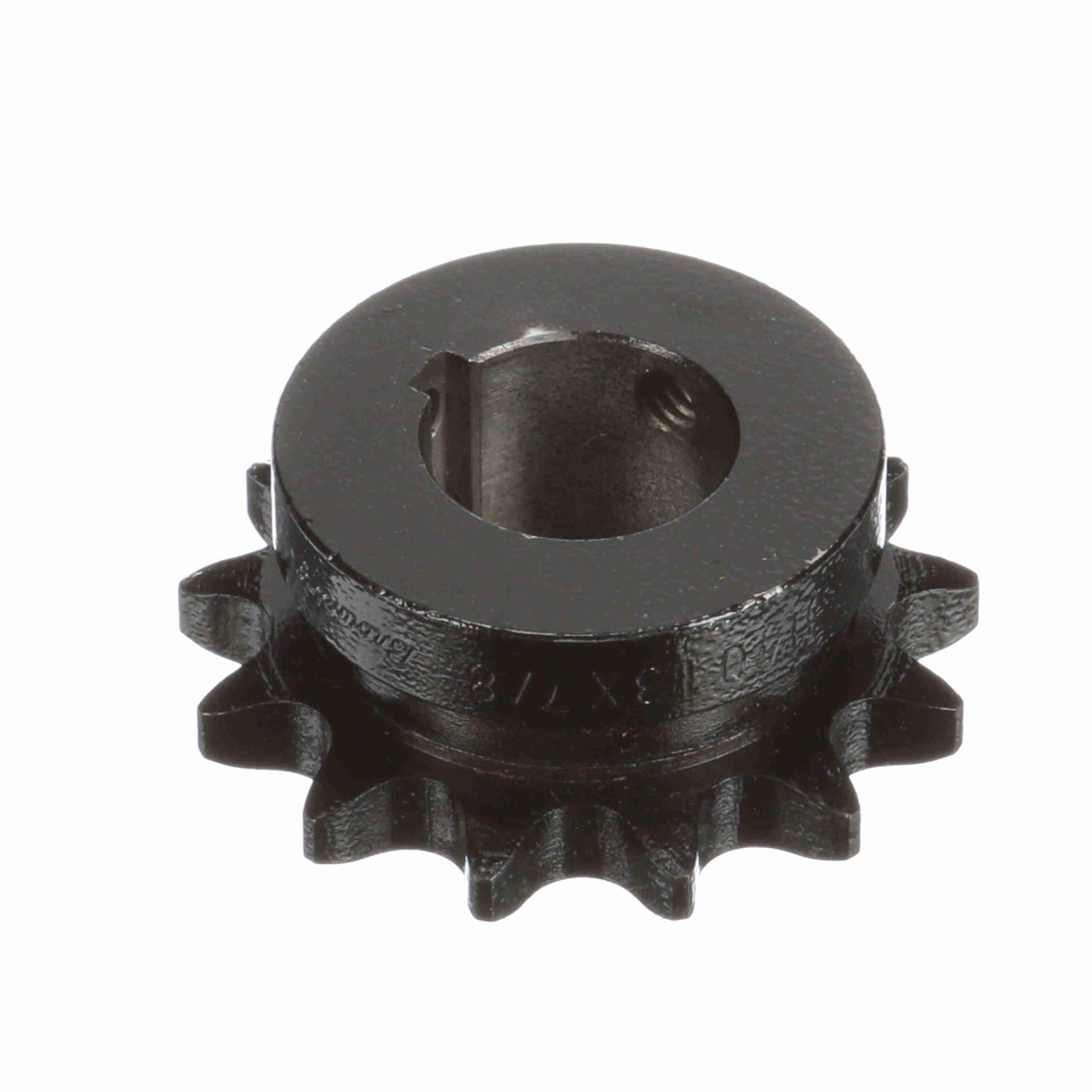

Browning 13-TOOTH #40-1 CHAIN SPROCKETS BRW H-4013 X 7/8
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289282920
-
Manufacturer Part Number1128065
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter2.089 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter1.766 in
-
Number of Teeth13
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter2.329 in
-
Length Through Bore0.891 in
-
Bore Diameter7/8 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1/2 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
-
Alternative Part NumberH4013X7/8
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
