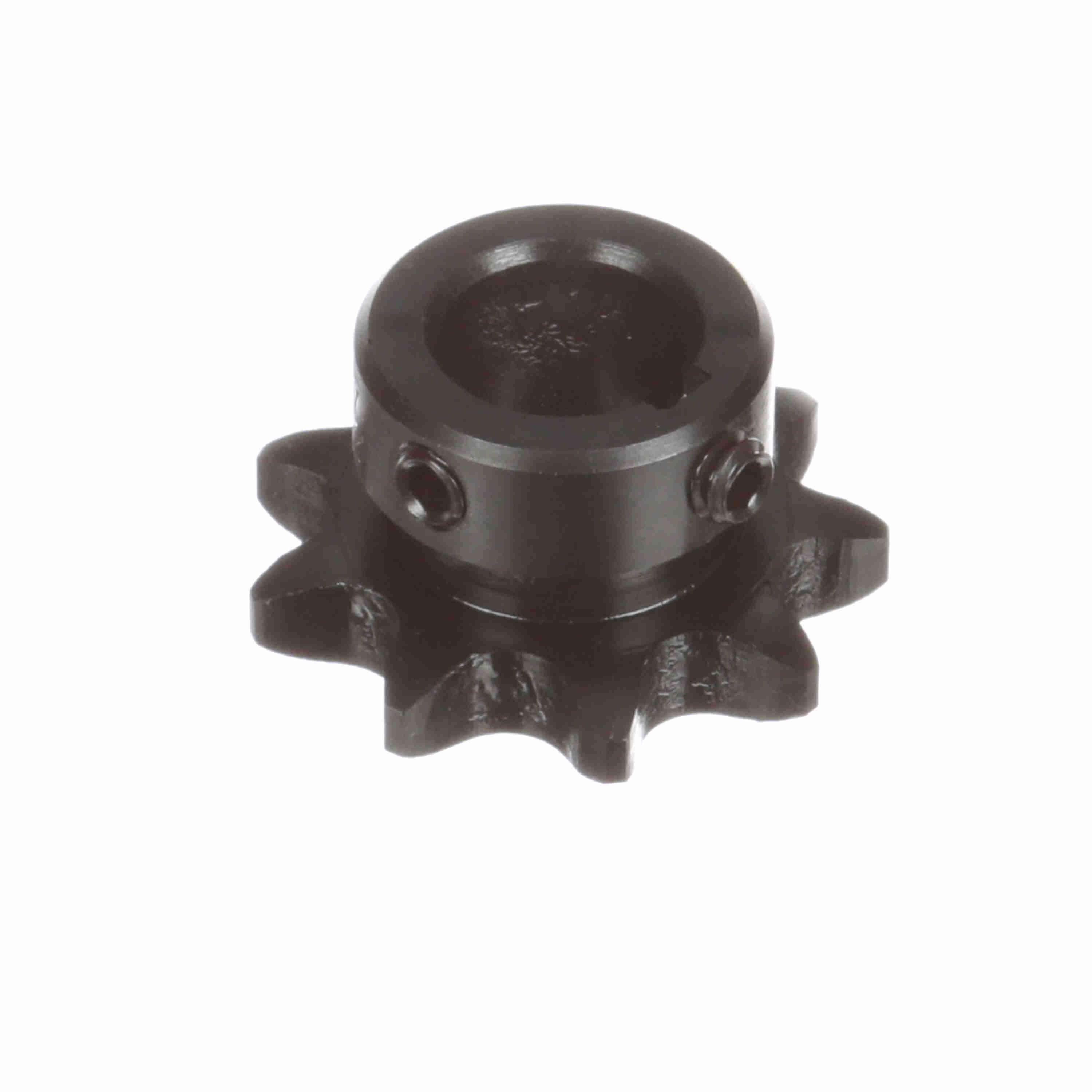

Browning 9-TOOTH #40-1-CHAIN SPROCKETS BRW H-409 X 5/8
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289212767
-
Manufacturer Part Number1127919
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter1.462 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter1.141 in
-
Number of Teeth9
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter1.674 in
-
Length Through Bore0.891 in
-
Bore Diameter5/8 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1/2 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100802572 |
-
Alternative Part NumberH409X5/8
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
