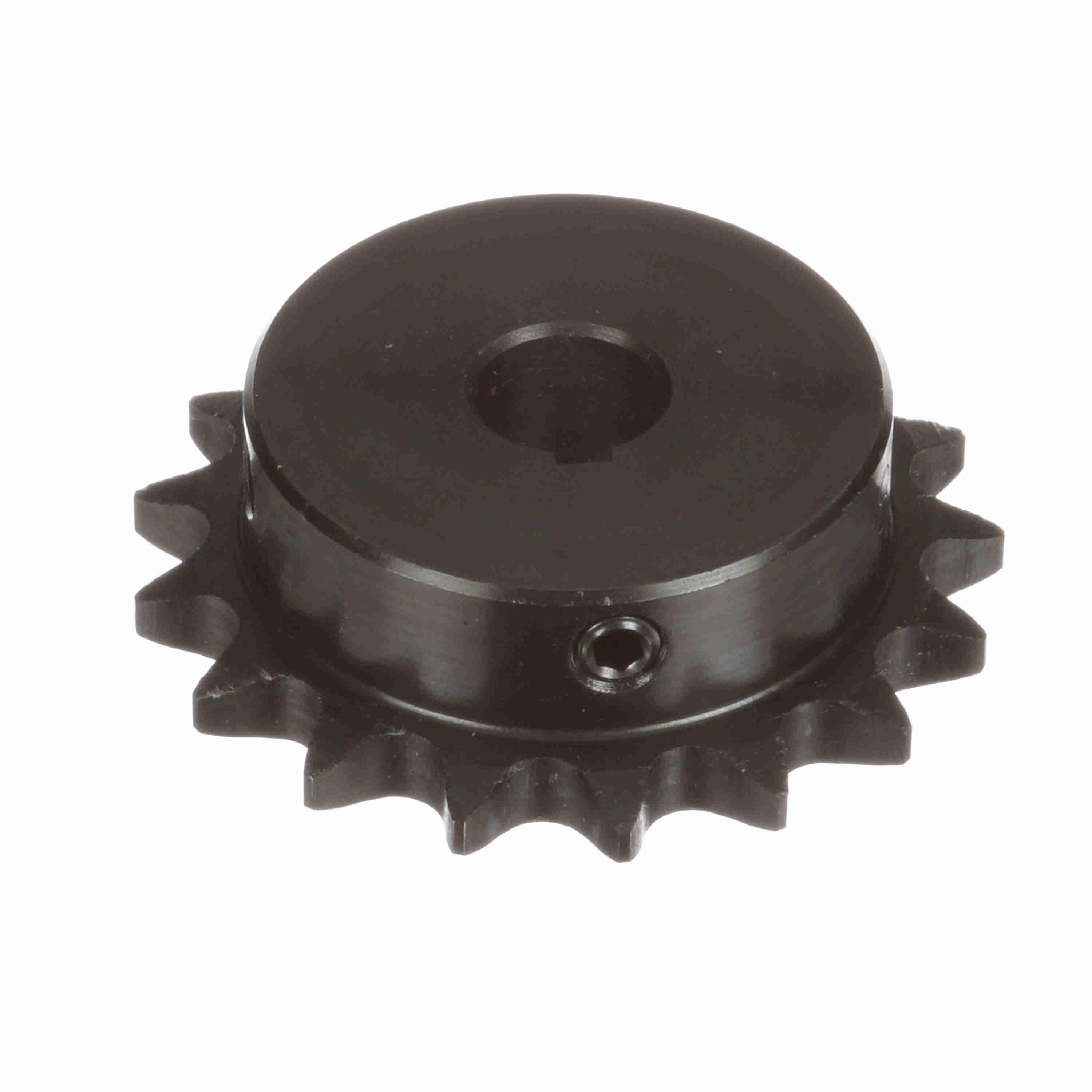

Browning® 1879659 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 5/8 in Dia Bore, 2.975 in OD, #40 Chain, 17 Teeth, 1/2 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289983148
-
Manufacturer Part Number1879659
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter2.721 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter2.188 in
-
Number of Teeth17
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter2.975 in
-
Length Through Bore1 in
-
Bore Diameter5/8 in
- This Product has the Browning Exclusive Twice the Life Guarantee
-
Alternative Part NumberH4017X5/8
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
