Browning 18-T MPB SPROCKETS FOR #50 CHAIN BRW 50-A-16

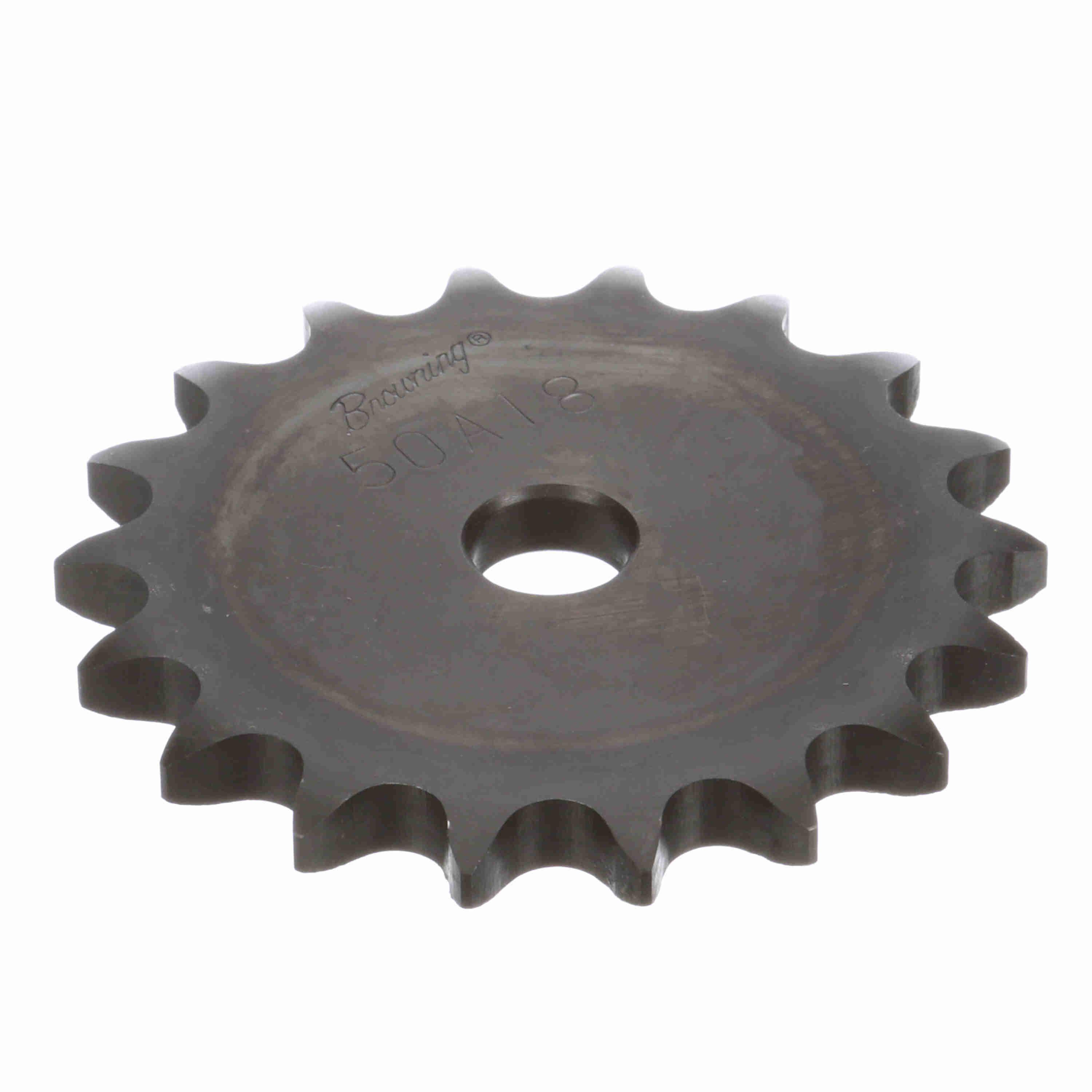

Browning® 1108786 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth and Keyway, 5/8 in Dia Bore, 3.92 in OD, #50 Chain, 18 Teeth, 5/8 in Pitch, Steel
-
BrandBrowning®
-
UPC662289111336
-
Manufacturer Part Number1108786
-
CountryUSA
-
Pitch5/8 in
-
Pitch Diameter3.599 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand Plate Type A
-
Number of Teeth18
-
Outside Diameter3.92 in
-
Bore Diameter5/8 in
- Browning type A steel plate roller chain sprockets are offered in single pitch range of 25-200
-
Alternative Part Number50A18
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
