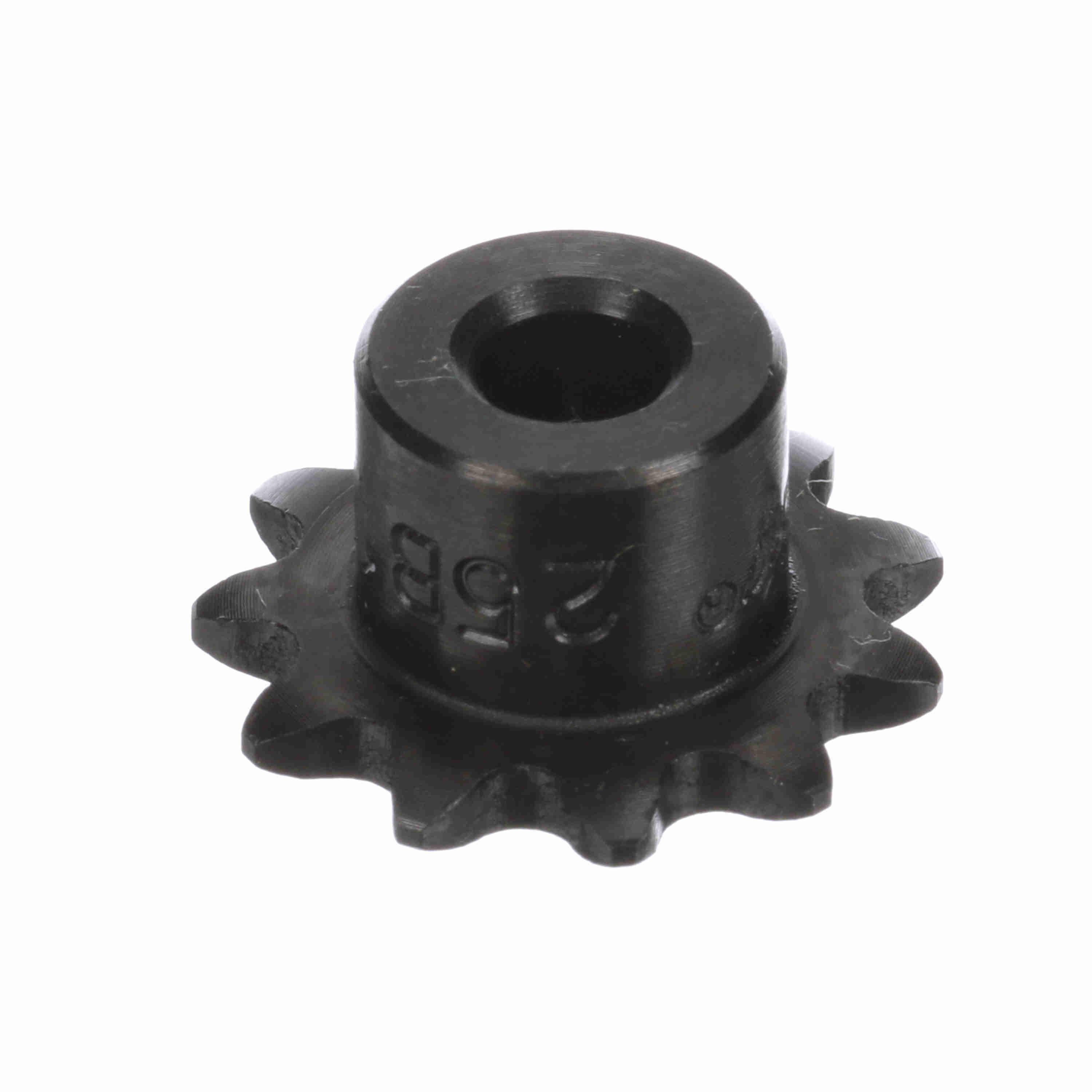

Browning® 1121276 Single Strand Minimum Bore Type B Roller Chain Sprocket, 5/16 in Dia Bore, 1 in OD, #25 Chain, 11 Teeth, 1/4 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289288229
-
Manufacturer Part Number1121276
-
CountryUSA
-
Pitch1/4 in
-
Pitch Diameter0.887 in
-
MaterialSteel
-
Chain Size#25
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter9/16 in
-
Number of Teeth11
-
Outside Diameter1 in
-
Length Through Bore1/2 in
-
Bore Diameter5/16 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- For use with 1/4 in pitch ANSI chain
-
Alternative Part Number25B11
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
