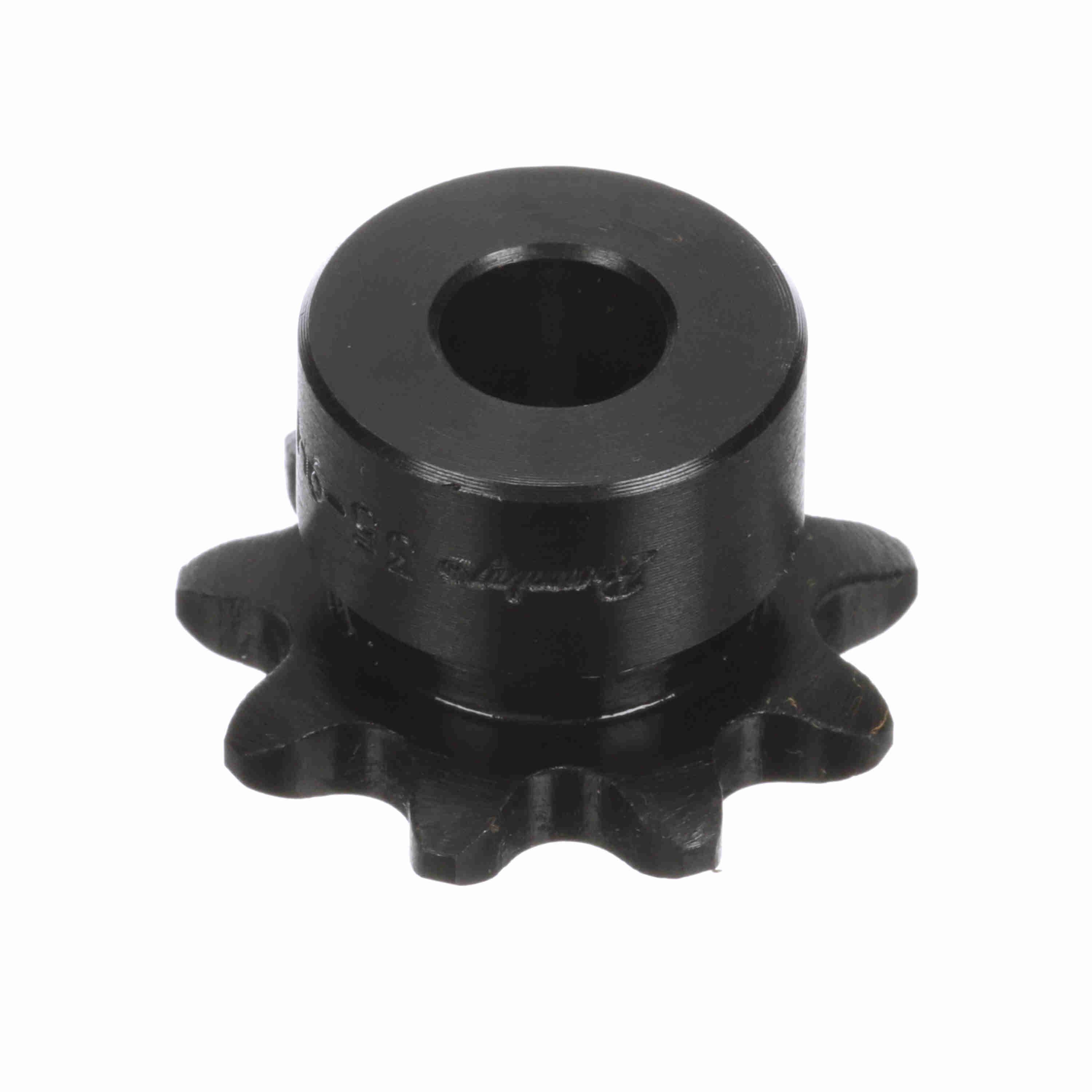

Browning 9-T SPROCKETS FOR #35 CHAIN BRW 35-B-9
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289268436
-
Manufacturer Part Number1121557
-
CountryUSA
-
Pitch3/8 in
-
Pitch Diameter1.096 in
-
MaterialSteel
-
Chain Size#35
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter27/32 in
-
Number of Teeth9
-
Outside Diameter1-1/4 in
-
Length Through Bore3/4 in
-
Bore Diameter3/8 in
- Hub is recessed for chain clearance
- Lasts longer than sprockets made from low carbon steel
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- For use with 3/8 in pitch ANSI chain
-
Alternative Part Number35B9
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
