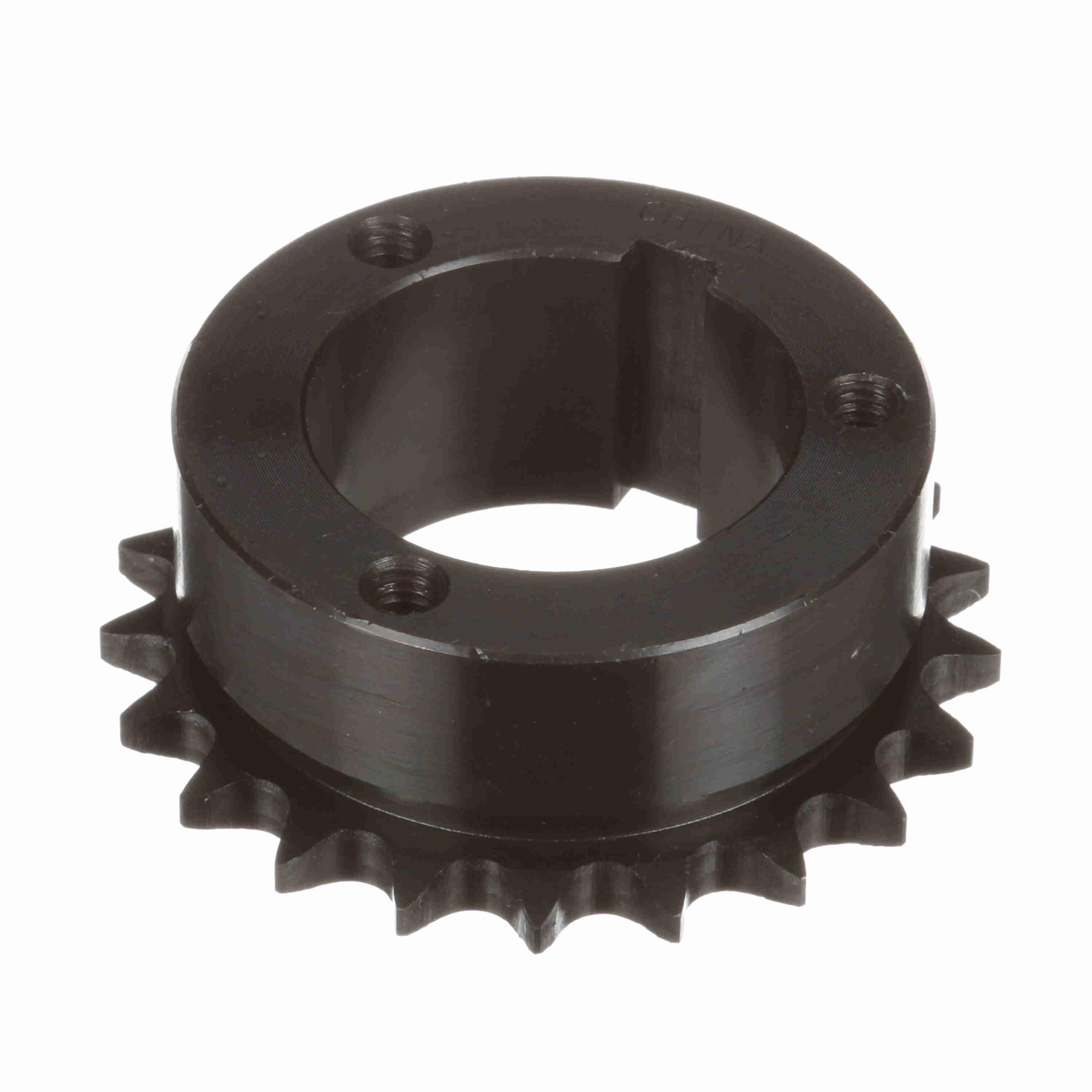

Browning 21-TOOTH P-BUSH #40 CHAIN SPROCKET BRW H-40-P-21
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289164783
-
Manufacturer Part Number1177021
-
CountryUSA
-
Bushing TypeType 4 Split Taper
-
Pitch1/2 in
-
Pitch Diameter3.355 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand
-
Hub Diameter3 in
-
Number of Teeth21
-
Outside Diameter3.617 in
-
Length Through Bore1.938 in
-
Bore Diameter1/2 in
- This product has the Browning® exclusive twice the life guarantee
- Easy installation and removal
- External key higher torque capacity, aligns bolt holes
- Provides key-to-key drive
- Double split barrel improved clamping
- Solid flange true concentricity
- Longer barrel better support on the shaft
- For use with 1/2 in pitch ANSI chain
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
- Hardened Teeth at No Extra Cost - Drive Sizes up to 30 teeth on 35 through 160 Chain
-
Alternative Part NumberH40P21
-
UNSPSC31171900
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
