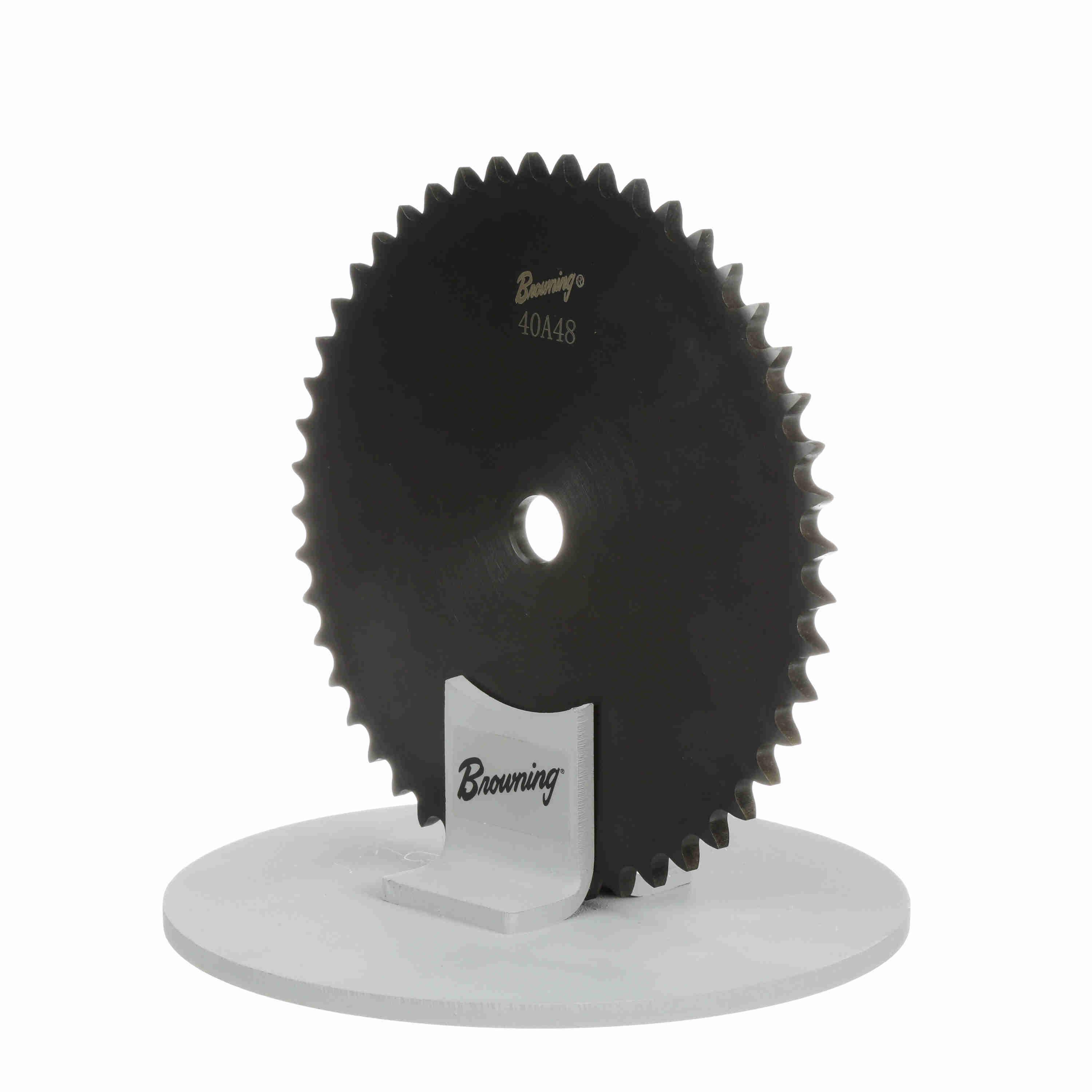

Browning® 1108505 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 23/32 in Dia Bore, 7.929 in OD, #40 Chain, 48 Teeth, 1/2 in Pitch, Steel
Browning® 1108505 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 23/32 in Dia Bore, 7.929 in OD, #40 Chain, 48 Teeth, 1/2 in Pitch, Steel
-
BrandBrowning®
-
UPC662289211159
-
Manufacturer Part Number1108505
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter7.645 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Plate Type A
-
Number of Teeth48
-
Outside Diameter7.929 in
-
Bore Diameter23/32 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 1/2 in pitch ANSI chain
-
Alternative Part Number40A48
-
UNSPSC31171900
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
