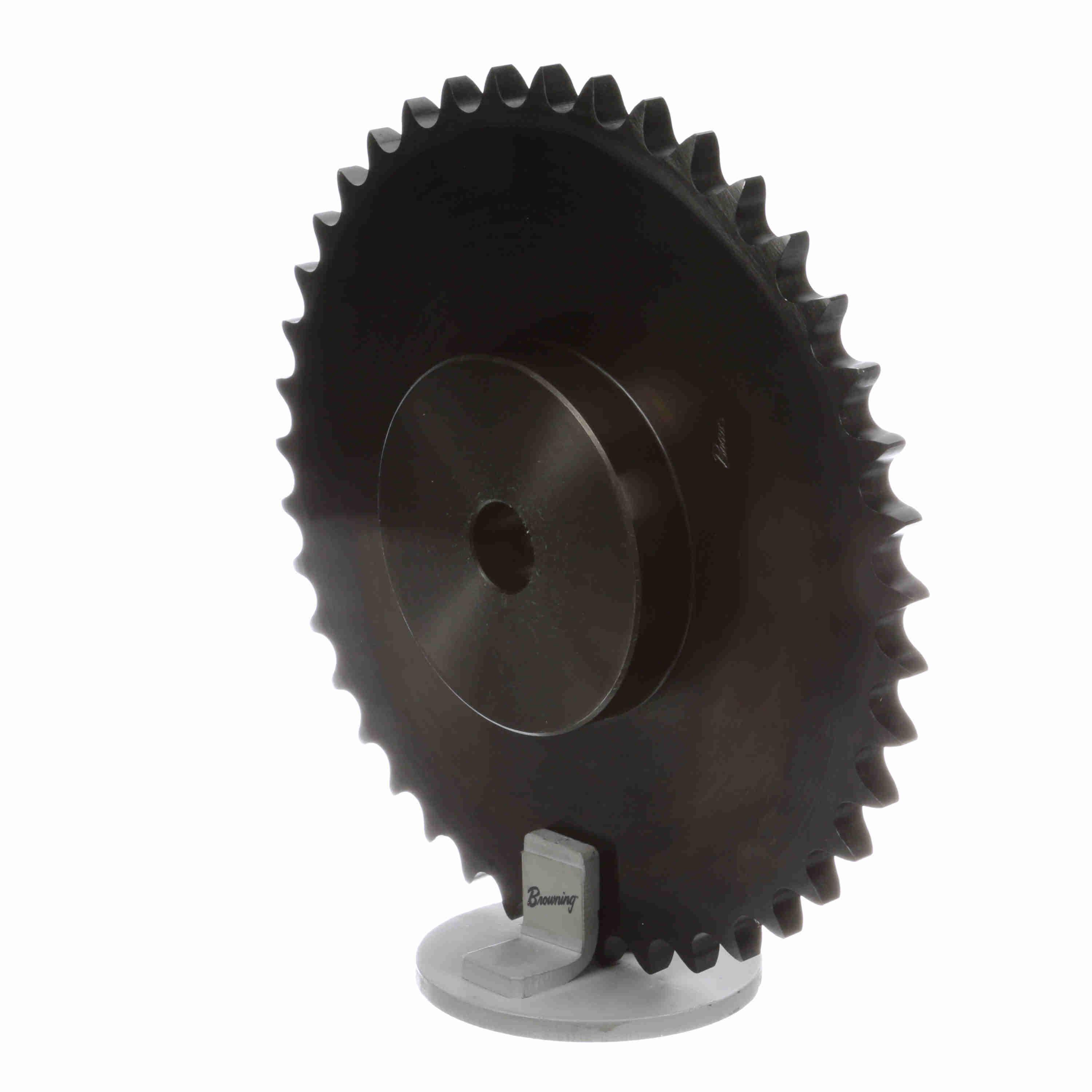

Browning® 1157593 Single Strand Minimum Bore Type B Roller Chain Sprocket With Keyway, 1 in Dia Bore, 10.22 in OD, #60 Chain, 41 Teeth, 3/4 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289550951
-
Manufacturer Part Number1157593
-
CountryUSA
-
Pitch3/4 in
-
Pitch Diameter9.798 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter4-1/4 in
-
Number of Teeth41
-
Keyway Size5/8 x 5/16 in
-
Outside Diameter10.22 in
-
Length Through Bore1-1/4 in
-
Bore Diameter1 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- For use with 3/4 in pitch ANSI chain
-
Alternative Part Number60B41
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
