Browning 40-TOOTH #35-1 CHAIN SPROCKETS BRW 35-A-40

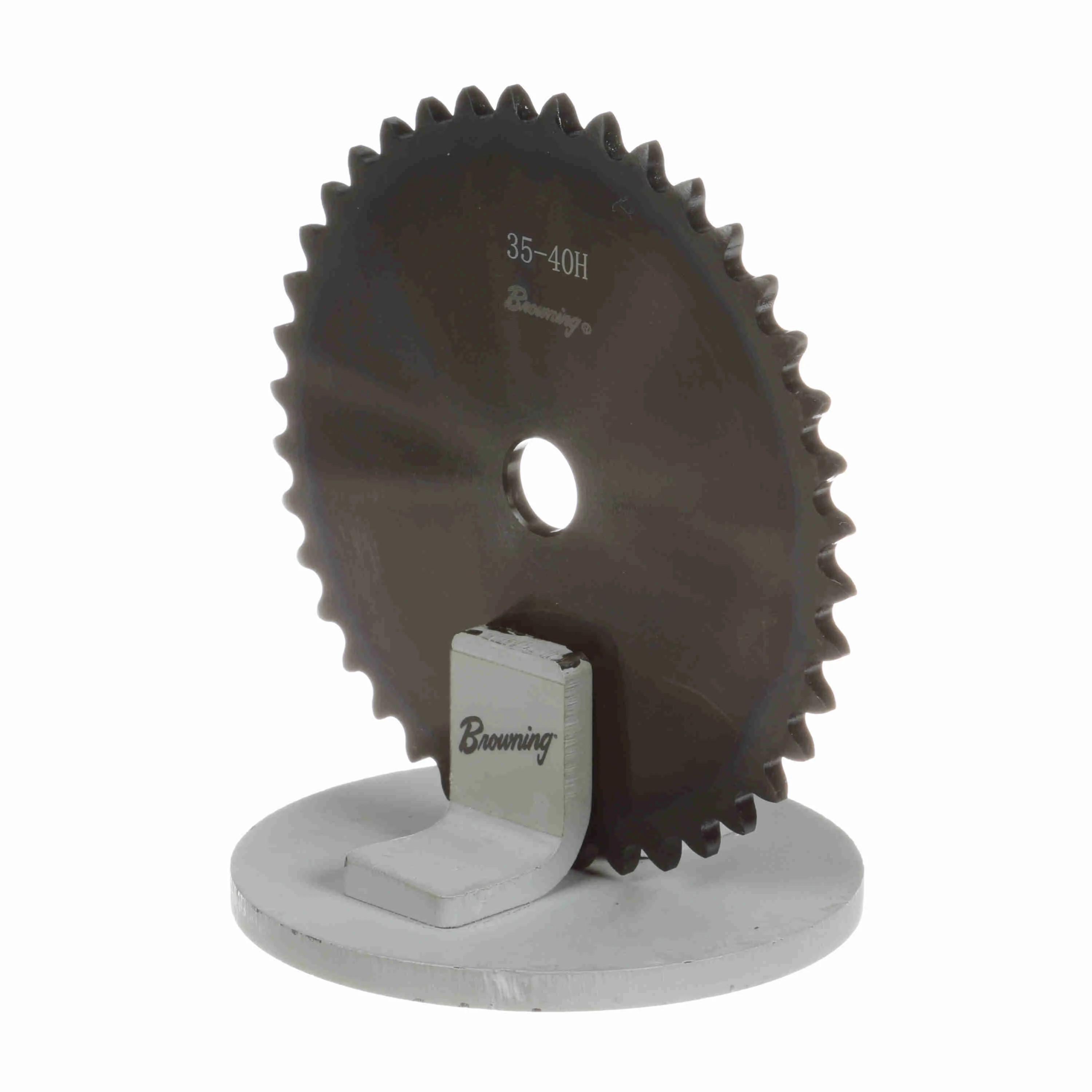

Browning® 1107804 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 19/32 in Dia Bore, 4.99 in OD, #35 Chain, 40 Teeth, 3/8 in Pitch, Steel
-
BrandBrowning®
-
UPC662289110506
-
Manufacturer Part Number1107804
-
CountryUSA
-
Pitch3/8 in
-
Pitch Diameter4.78 in
-
MaterialSteel
-
Chain Size#35
-
TypeSingle Strand Plate Type A
-
Number of Teeth40
-
Outside Diameter4.99 in
-
Length Through Bore0.169 in
-
Bore Diameter19/32 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 3/8 in pitch ANSI chain
-
Alternative Part Number35A40
-
UNSPSC31171900
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
