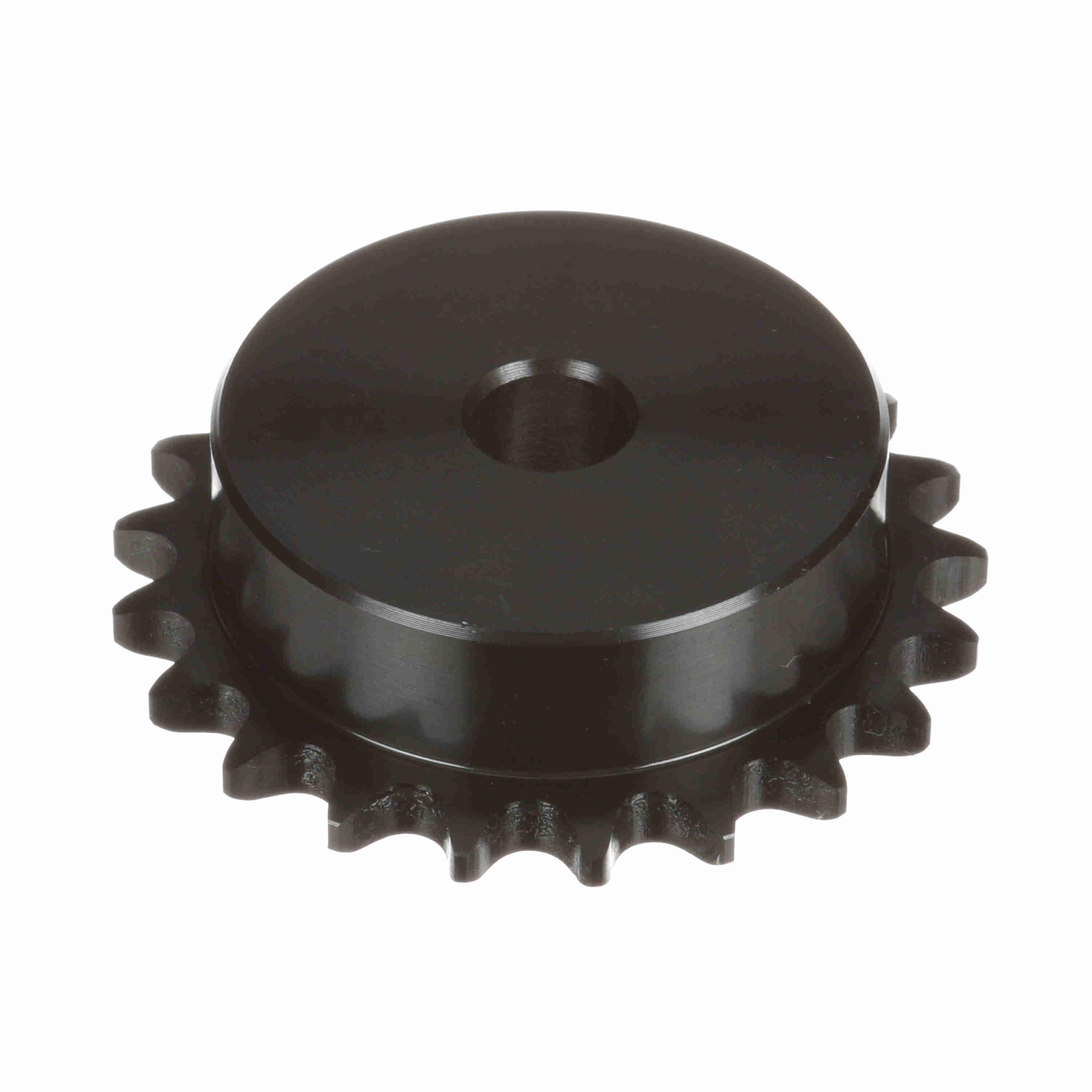

Browning® 1122357 Single Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth, 5/8 in Dia Bore, 3.62 in OD, #40 Chain, 21 Teeth, 1/2 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289189212
-
Manufacturer Part Number1122357
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter3.355 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter2-3/4 in
-
Number of Teeth21
-
Outside Diameter3.62 in
-
Length Through Bore1 in
-
Bore Diameter5/8 in
- When you think Sprockets - Think Browning
- This can be bored to size with keyseat and setscrew for a reasonable extra charge.
- Maximum Bore Shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- For use with 1/2 in pitch ANSI chain
- Made with Minimum bore, no keyseat or setscrew
- This can be bored to size with keyseat and setscrew for a reasonable extra charge
-
Alternative Part Number40B21
-
UNSPSC31171900
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
