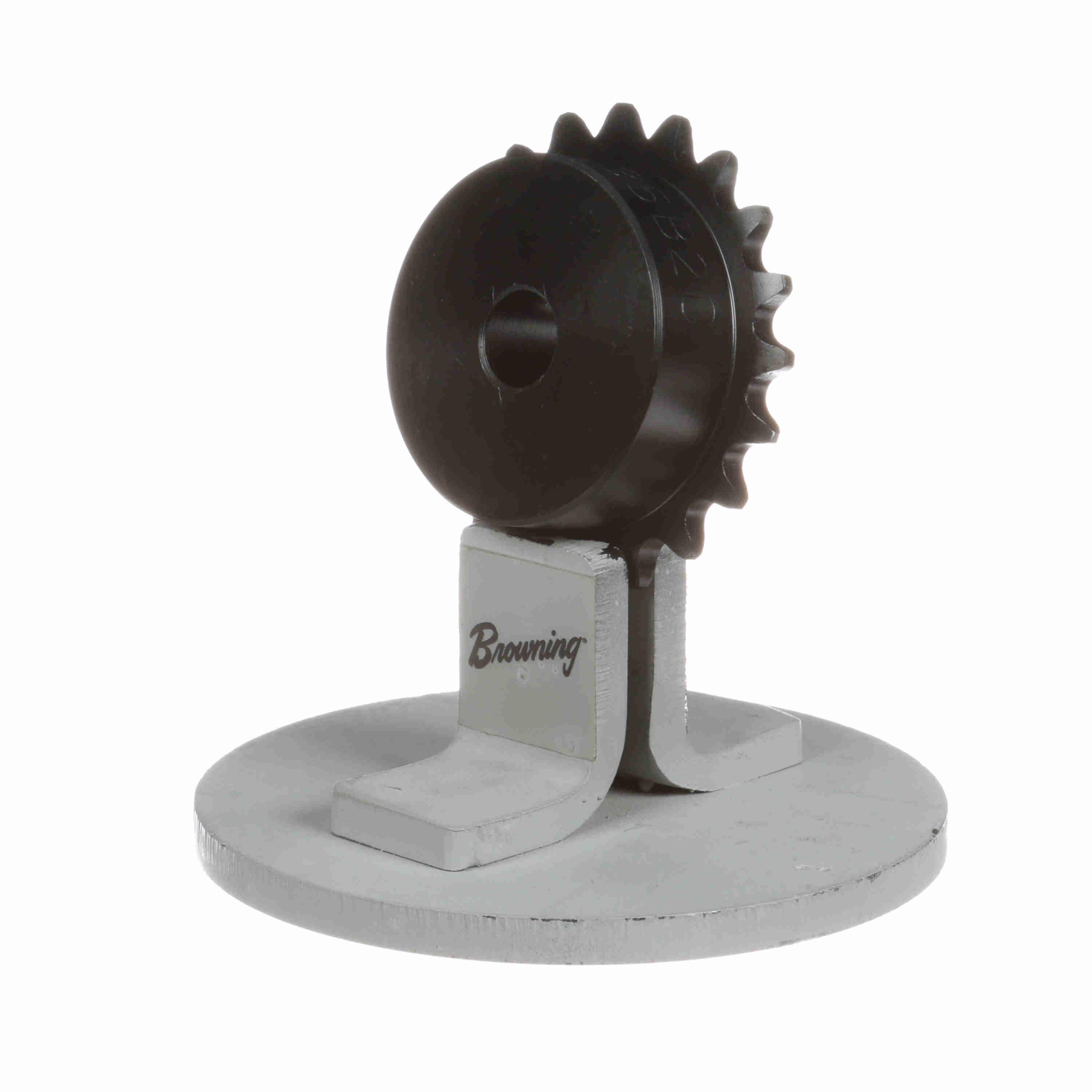

Browning® 1121664 Single Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth and Keyway, 1/2 in Dia Bore, 2.59 in OD, #35 Chain, 20 Teeth, 3/8 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289238569
-
Manufacturer Part Number1121664
-
CountryUSA
-
Pitch3/8 in
-
Pitch Diameter2.397 in
-
MaterialSteel
-
Chain Size#35
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter1-15/16 in
-
Number of Teeth20
-
Keyway Size5/16 x 5/32 in
-
Outside Diameter2.59 in
-
Length Through Bore3/4 in
-
Bore Diameter1/2 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- For use with 3/8 in pitch ANSI chain
- Made with Minimum bore, no keyseat or setscrew
- This can be bored to size with keyseat and setscrew for a reasonable extra charge
-
Alternative Part Number35B20
-
UNSPSC31171900
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
