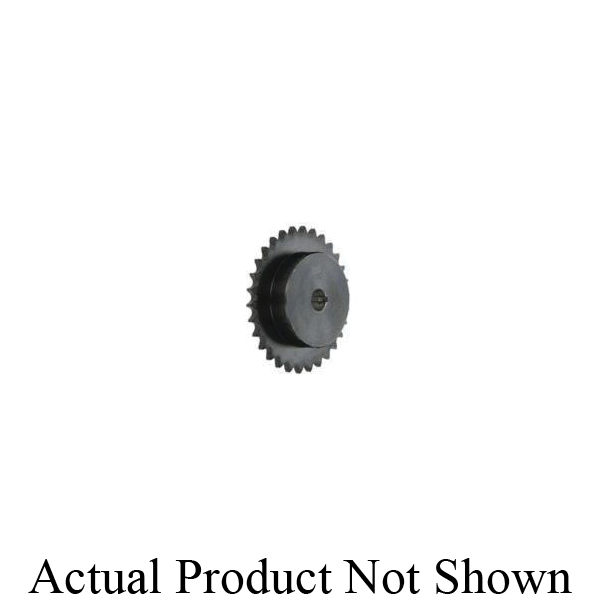

Browning 30-TOOTH #40-1 CHAIN SPROCKETS BRW H-4030 X 1.3/16
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289984084
-
Manufacturer Part Number1880624
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter4.783 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter3.266 in
-
Number of Teeth30
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter5.057 in
-
Length Through Bore1 in
-
Bore Diameter1-3/16 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1/2 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
-
Alternative Part NumberH4030X 1 3/16
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
