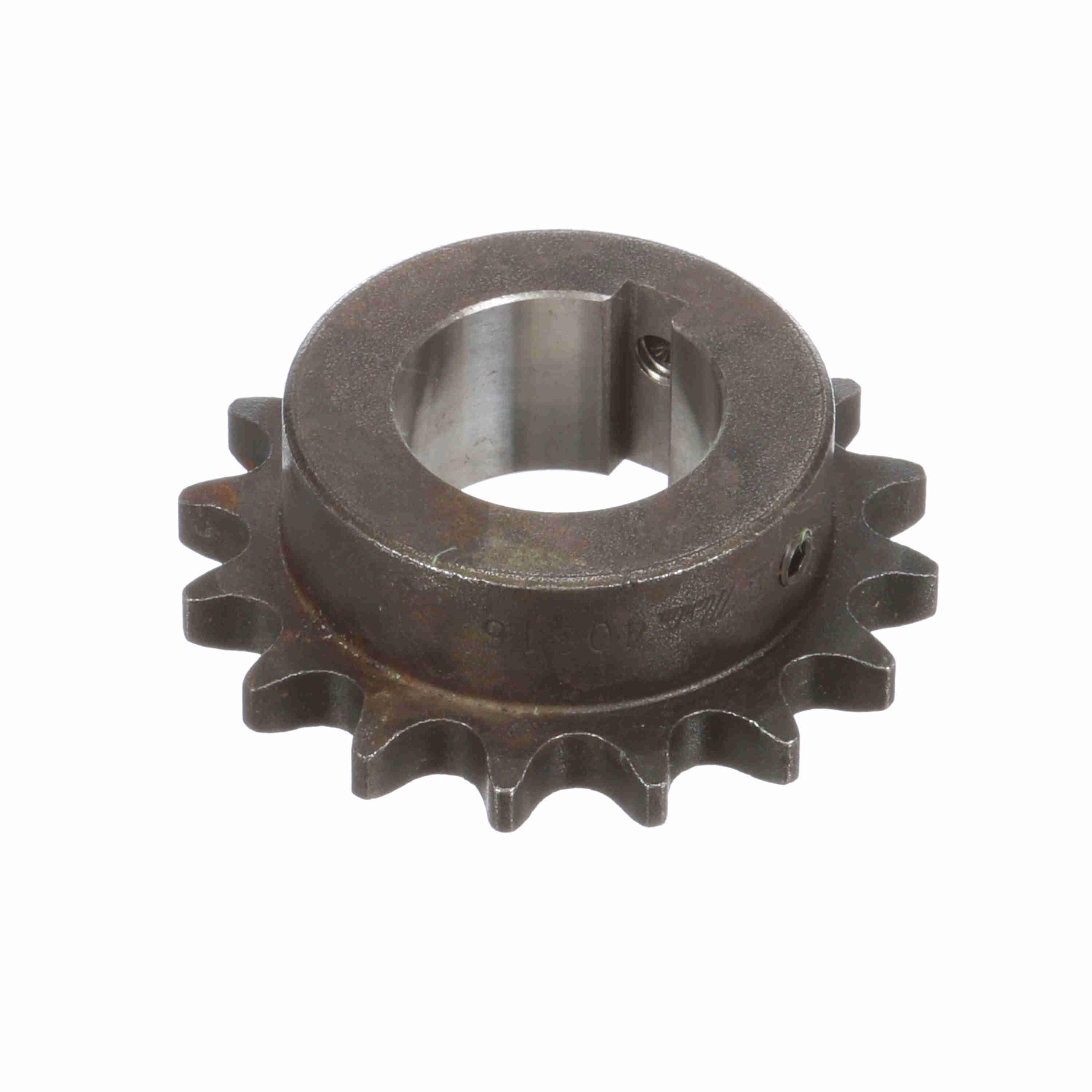

Browning 16-TOOTH #40-1 CHAIN SPROCKETS BRW H-4016 X 1.3/16

0 Ratings
$20.15
In Stock
SKU: BRWH4016X1.3/16
noimage_new

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

In Stock
HCI of Jackson: 4
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    Browning®
  • UPC
    662289983124
  • Manufacturer Part Number
    1879642
  • Country
    USA
Specification
  • Pitch
    1/2 in
  • Pitch Diameter
    2.563 in
  • Material
    Steel
  • Chain Size
    #40
  • Type
    Single Strand Finished Bore Type 1
  • Hub Diameter
    2.078 in
  • Number of Teeth
    16
  • Keyway Size
    1/4 x 1/8 in
  • Outside Diameter
    2.814 in
  • Length Through Bore
    0.891 in
  • Bore Diameter
    1-3/16 in
Features
  • Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
  • In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
  • For use with 1/2 in pitch ANSI chain
  • Additional setscrew at 90 deg to keyway
Additional Information
  • Alternative Part Number
    H4016X 1 3/16
  • UNSPSC
    31171900
  • Package Description
    1/PK
  • Standards/Approvals
    ANSI Specified
  • Warranty
    1 Year
