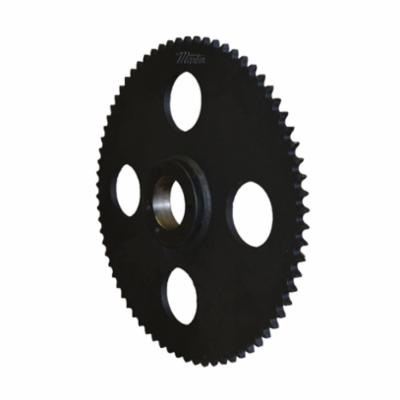

Martin 60-TOOTH J-BUS #140 CHAIN SPROCKET MAI 140-J-60
QD (quick detachable)is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.
-
BrandMartin
-
UPC697950026428
-
Manufacturer Part Number140J60
-
CountryUSA|Canada
-
Bushing TypeType J QD®
-
Pitch1-3/4 in
-
Pitch Diameter33.438 in
-
MaterialSteel
-
Chain Size#140
-
TypeQD Bushed Type C
-
Hub Diameter7-3/4 in
-
Number of Teeth60
-
Outside Diameter34.442 in
-
Length Through Bore4-1/2 in
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
-
UNSPSC31171901
-
Standards/ApprovalsPROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
-
