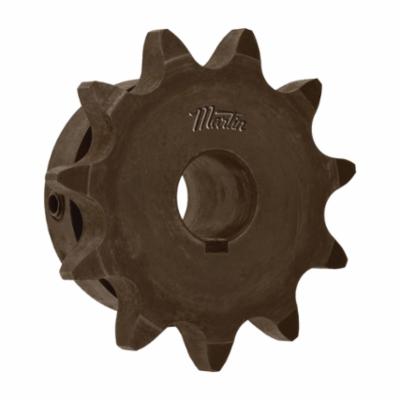

Martin 60BS14 1 1/4 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket With Keyway, 1-1/4 in Dia Bore, 3.736 in OD, #60 Chain, 14 Teeth, 3/4 in Pitch, Steel
These finished bore sprockets are shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.
-
BrandMartin
-
UPC697950015248
-
Manufacturer Part Number60BS14 1 1/4
-
CountryUSA|Canada
-
Pitch3/4 in
-
Pitch Diameter3.371 in
-
MaterialSteel
-
Chain Size#60
-
TypeBored-to-Size Type BS
-
Screw Size5/16-18 x 5/16 in
-
Hub Diameter2.563 in
-
Number of Teeth14
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter3.736 in
-
Length Through Bore1-1/4 in
-
Bore Diameter1-1/4 in
- Keyway is on center line of tooth
- Stock finished bores
- Non-hardened teeth
- Precise machining and processes ensure consistent finish and high quality
- Bores are concentric to pitch line, minimizing run out
- 2 set screws keyed on centerline of tooth
-
UNSPSC31171901
-
Package Description1/PK
-
Standards/ApprovalsPROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
-
