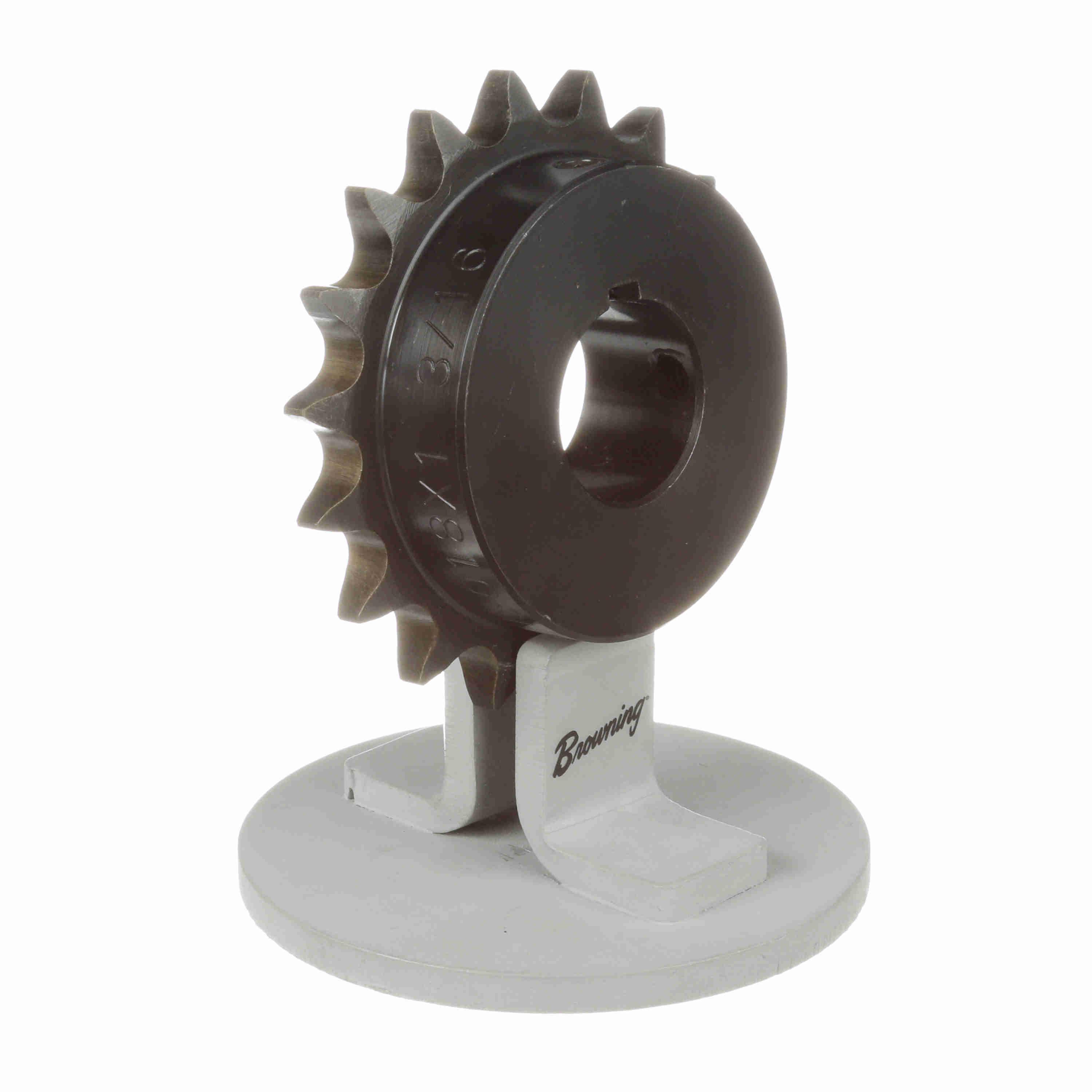

Browning® 1880970 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 7/8 in Dia Bore, 4.32 in OD, #50 Chain, 20 Teeth, 5/8 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289984497
-
Manufacturer Part Number1880970
-
CountryUSA
-
Pitch Diameter3.995 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter3.016 in
-
Number of Teeth20
-
Outside Diameter4.32 in
-
Length Through Bore1.016 in
-
Bore Diameter7/8 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 5/8 in pitch ANSI chain
- Additional setscrew at 90 and 180 deg to keyway
-
Alternative Part NumberH5020X7/8
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
