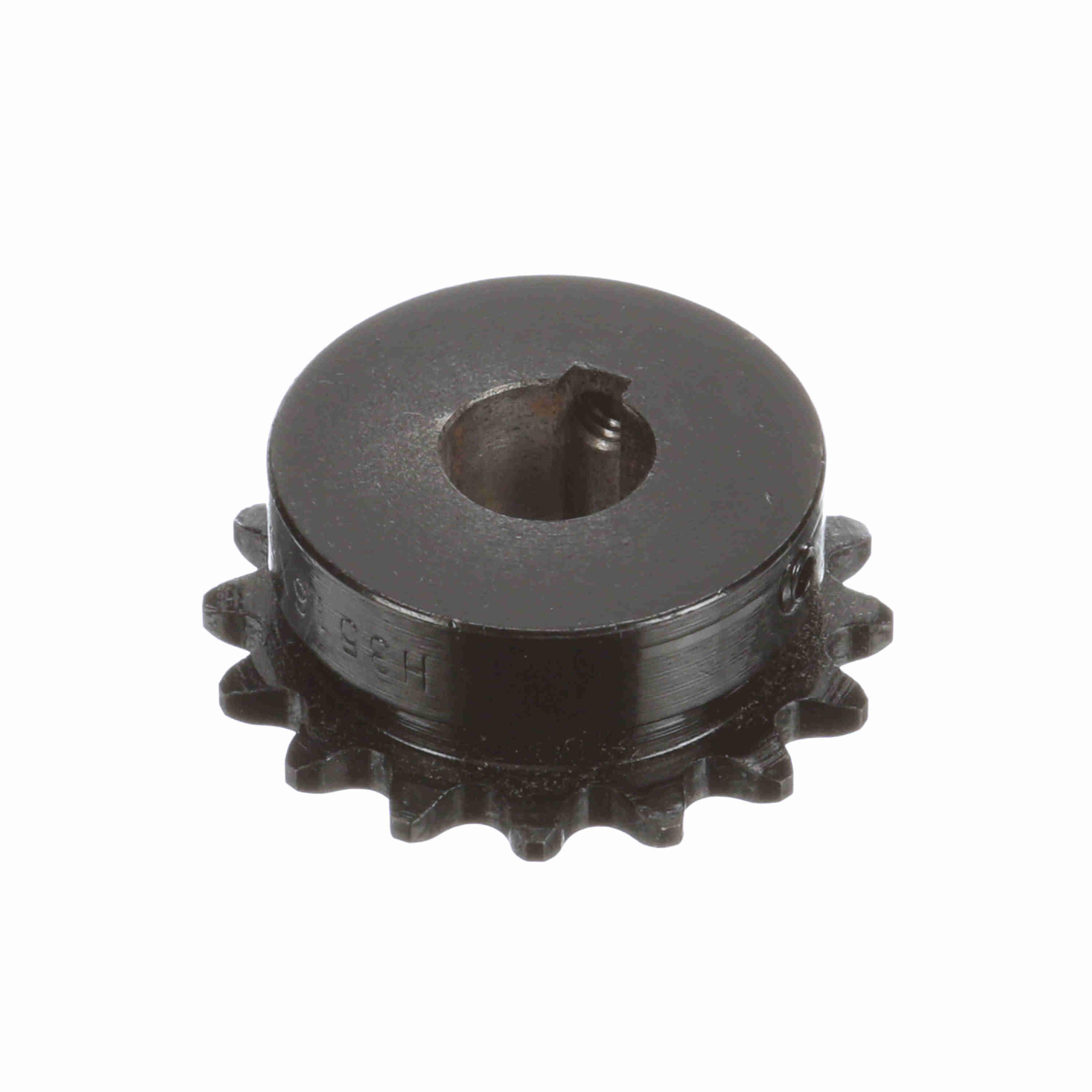

Browning 16-TOOTH #35-1 CHAIN SPROCKETS BRW H-3516 X 5/8
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289282579
-
Manufacturer Part Number1127711
-
CountryUSA
-
Pitch Diameter1.922 in
-
MaterialSteel
-
Chain Size#35
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter1.703 in
-
Number of Teeth16
-
Outside Diameter2.11 in
-
Length Through Bore0.766 in
-
Bore Diameter5/8 in
- This Product has the Browning Exclusive Twice the Life Guarantee
-
Alternative Part NumberH3516X5/8
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
