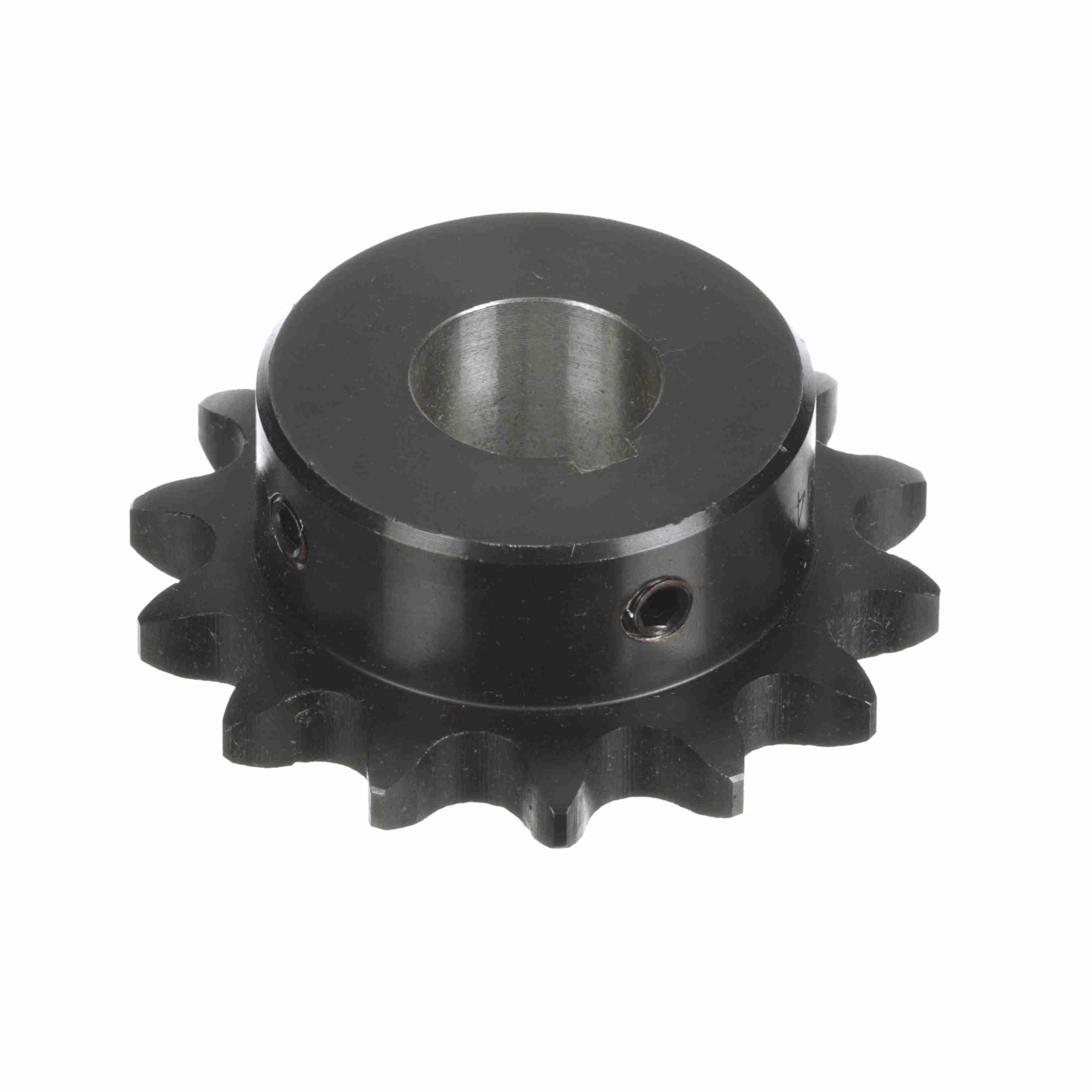

Browning® 1128107 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 3/4 in Dia Bore, 2.49 in OD, #40 Chain, 14 Teeth, 1/2 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289302963
-
Manufacturer Part Number1128107
-
CountryUSA
-
Pitch Diameter2.247 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter1.8906 in
-
Number of Teeth14
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter2.49 in
-
Length Through Bore0.891 in
-
Bore Diameter3/4 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1/2 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
-
Alternative Part NumberH4014X3/4
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
