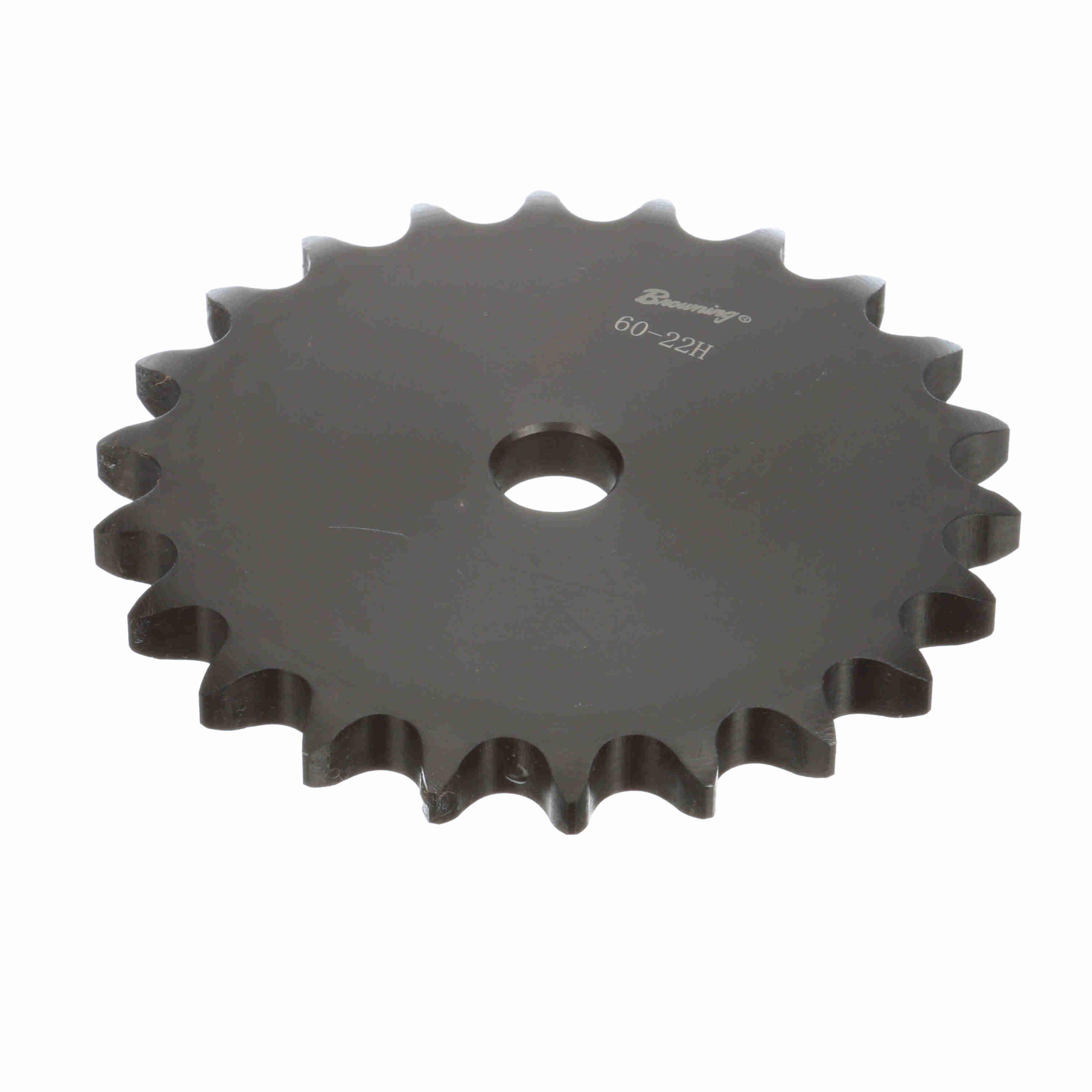

Browning® 1109362 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 3/4 in Dia Bore, 5.67 in OD, #60 Chain, 22 Teeth, 3/4 in Pitch, Steel
Browning® 1109362 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 3/4 in Dia Bore, 5.67 in OD, #60 Chain, 22 Teeth, 3/4 in Pitch, Steel
-
BrandBrowning®
-
UPC662289291861
-
Manufacturer Part Number1109362
-
CountryUSA
-
Pitch3/4 in
-
Pitch Diameter5.27 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand Plate Type A
-
Number of Teeth22
-
Outside Diameter5.67 in
-
Length Through Bore0.459 in
-
Bore Diameter3/4 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 3/4 in pitch ANSI chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
-
Alternative Part Number60A22
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
