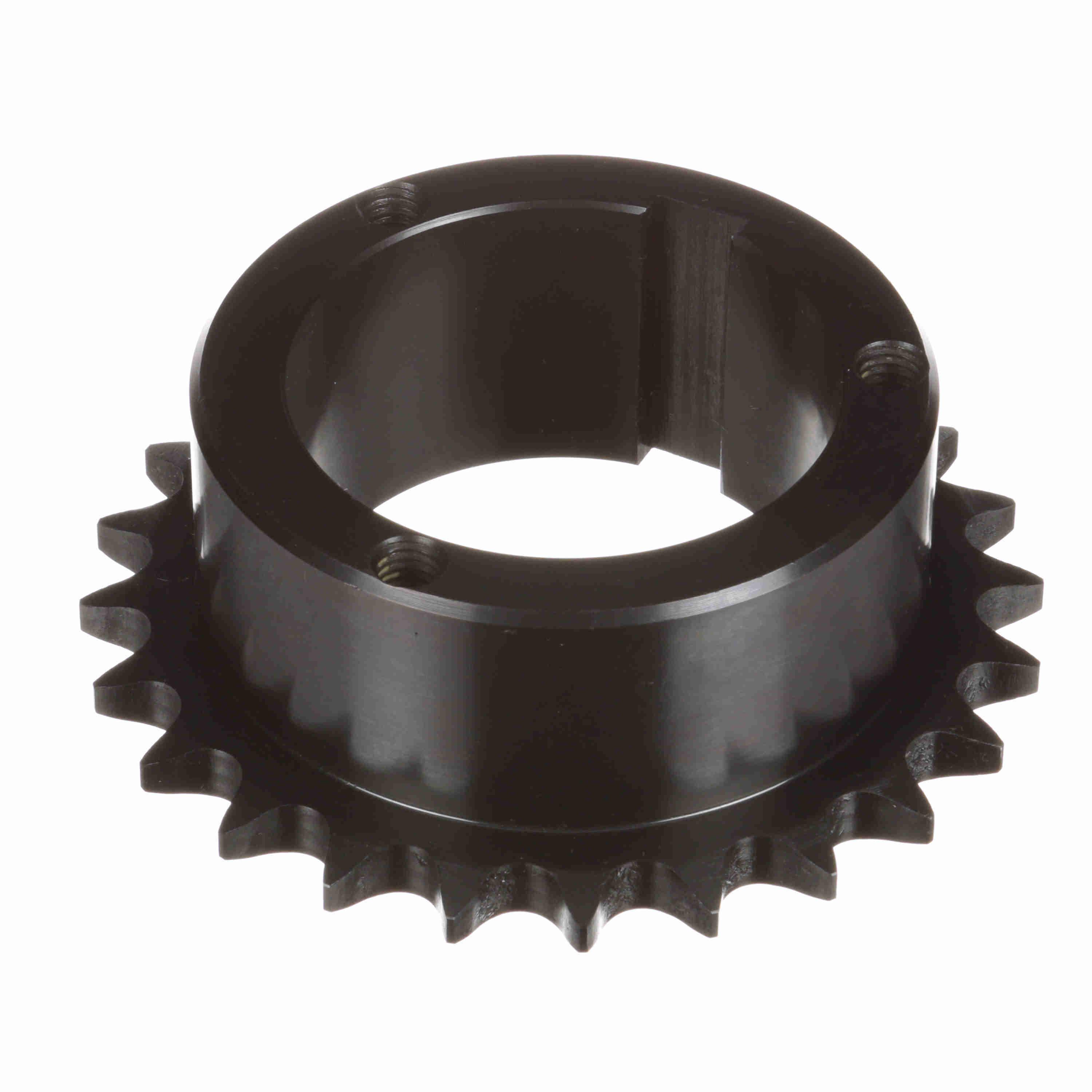

Browning 24-TOOTH Q-BUSH #50 CHAIN SPROCKET BRW H-50-Q-24
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289305292
-
Manufacturer Part Number1177534
-
CountryUSA
-
Pitch Diameter4.788 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand Split Taper Bushed Type 4
-
Hub Diameter4-1/8 in
-
Number of Teeth24
-
Outside Diameter5.122 in
-
Length Through Bore2.8281 in
-
Bore Diameter3/4 in
- This product has the Browning® exclusive twice the life guarantee
- Easy installation and removal
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
- External key higher torque capacity, aligns bolt holes
- Provides key-to-key drive
- Double split barrel improved clamping
- Solid flange true concentricity
- Longer barrel better support on the shaft
- For use with 5/8 in pitch ANSI chain
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
-
Alternative Part NumberH50Q24
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
