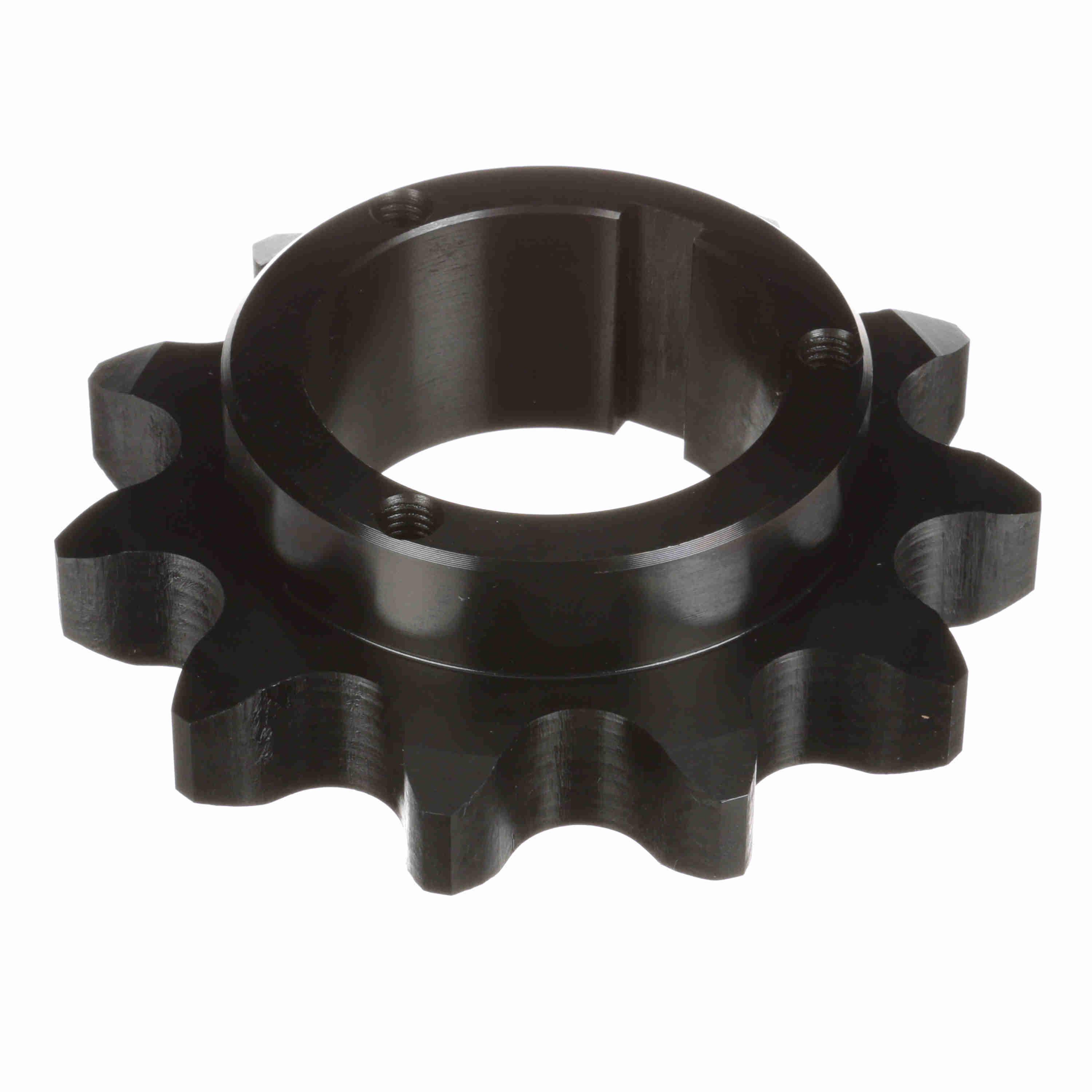

Browning 11-TOOTH Q-BUS #120-CHAIN SPROCKET BRW H-120-Q-11

Name: Browning 11-TOOTH Q-BUS #120-CHAIN SPROCKET BRW H-120-Q-11
Brand: Regal Rexnord
SKU: BRWH120Q11
Price: 266.2 USD
Availability: InStock

0 Ratings

$266.20

SKU: BRWH120Q11

Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.

In Stock

HCI of Jackson: 5

HCI of Dyersburg: 0

HCI of Humboldt: 0

HCI of Union City: 0

HCI of Gallatin: 0

Back to: Single Pitch Roller Chain Sprockets

Main specs

Brand

Browning®
UPC

662289136575
Manufacturer Part Number

1178664
Country

USA

Specification

Pitch Diameter

5.324 in
Material

Steel
Chain Size

#120
Type

Single Strand Split Taper Bushed Type 4
Hub Diameter

4-1/8 in
Number of Teeth

11
Outside Diameter

6.009 in
Length Through Bore

2.8281 in
Bore Diameter

3/4 in

Features

This product has the Browning® exclusive twice the life guarantee
Easy installation and removal
Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
External key higher torque capacity, aligns bolt holes
Provides key-to-key drive
Double split barrel improved clamping
Solid flange true concentricity
Longer barrel better support on the shaft
For use with 1-1/2 in pitch ANSI chain
Split Taper Bushing are available in popular Inch, Metric and Spline bore
