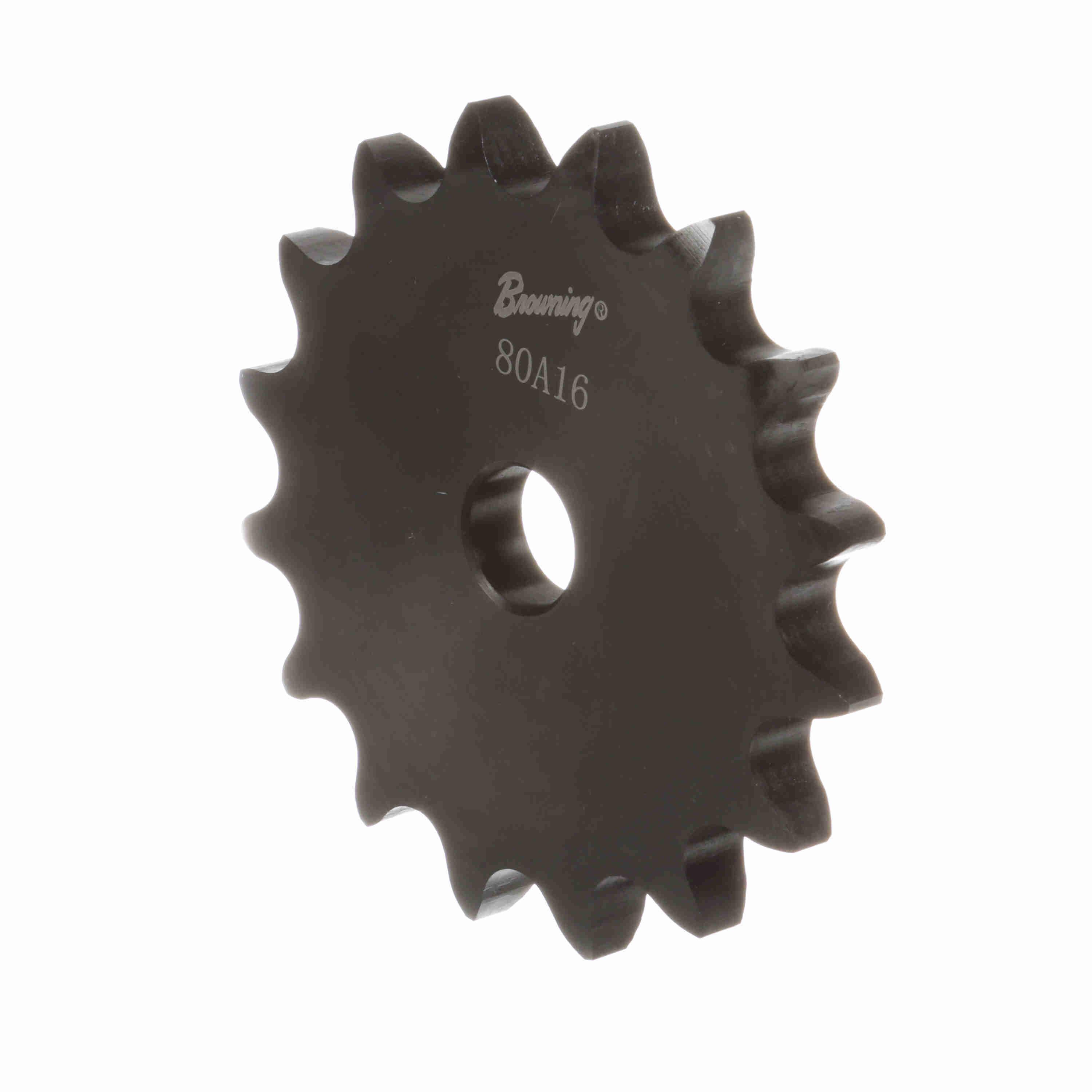

Browning® 1109834 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 15/16 in Dia Bore, 5.63 in OD, #80 Chain, 16 Teeth, 1 in Pitch, Steel
Browning® 1109834 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 15/16 in Dia Bore, 5.63 in OD, #80 Chain, 16 Teeth, 1 in Pitch, Steel
-
BrandBrowning®
-
UPC662289292318
-
Manufacturer Part Number1109834
-
CountryUSA
-
Pitch1 in
-
Pitch Diameter5.126 in
-
MaterialSteel
-
Chain Size#80
-
TypeSingle Strand Plate Type A
-
Number of Teeth16
-
Outside Diameter5.63 in
-
Length Through Bore0.575 in
-
Bore Diameter15/16 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 1 in pitch ANSI chain
-
Alternative Part Number80A16
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
