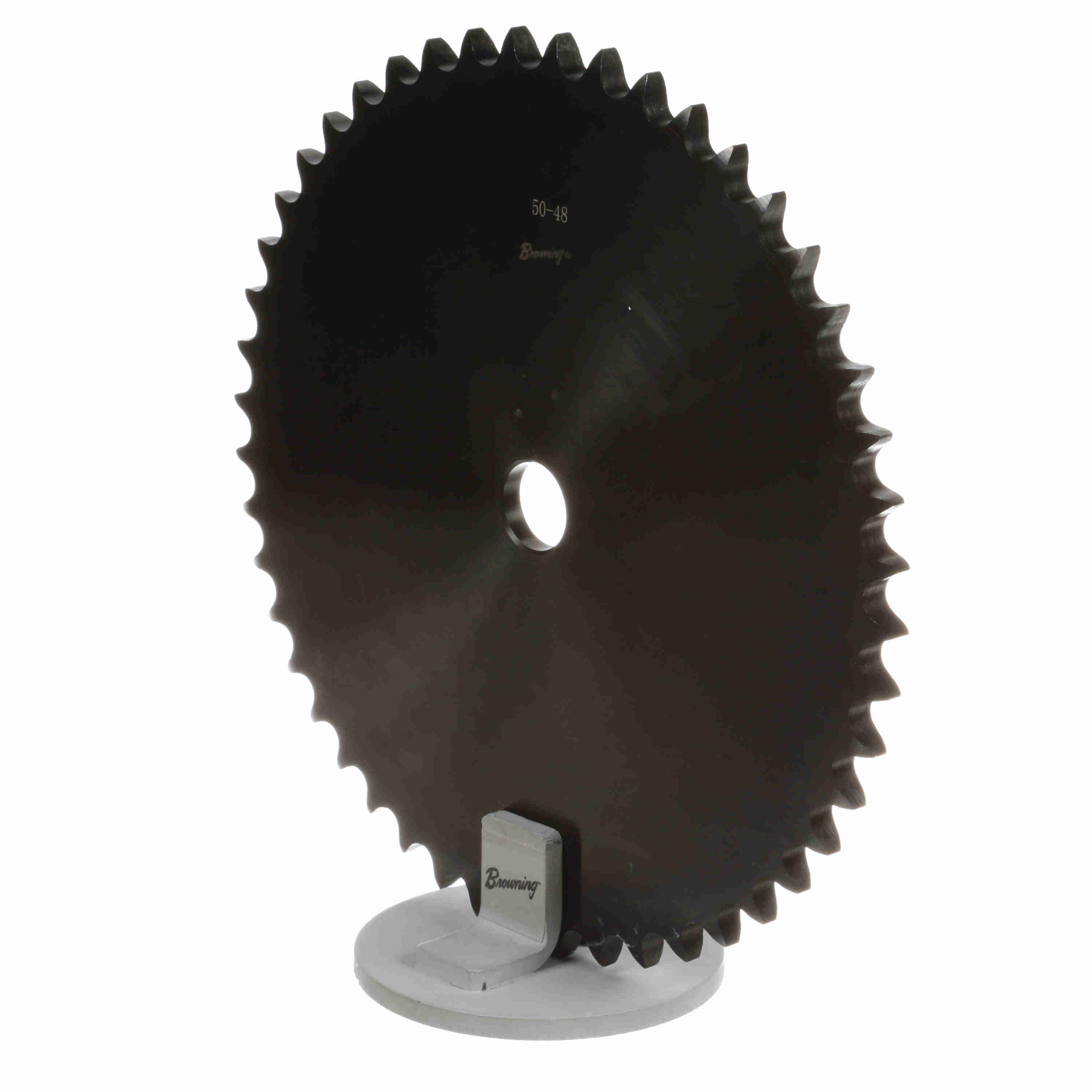

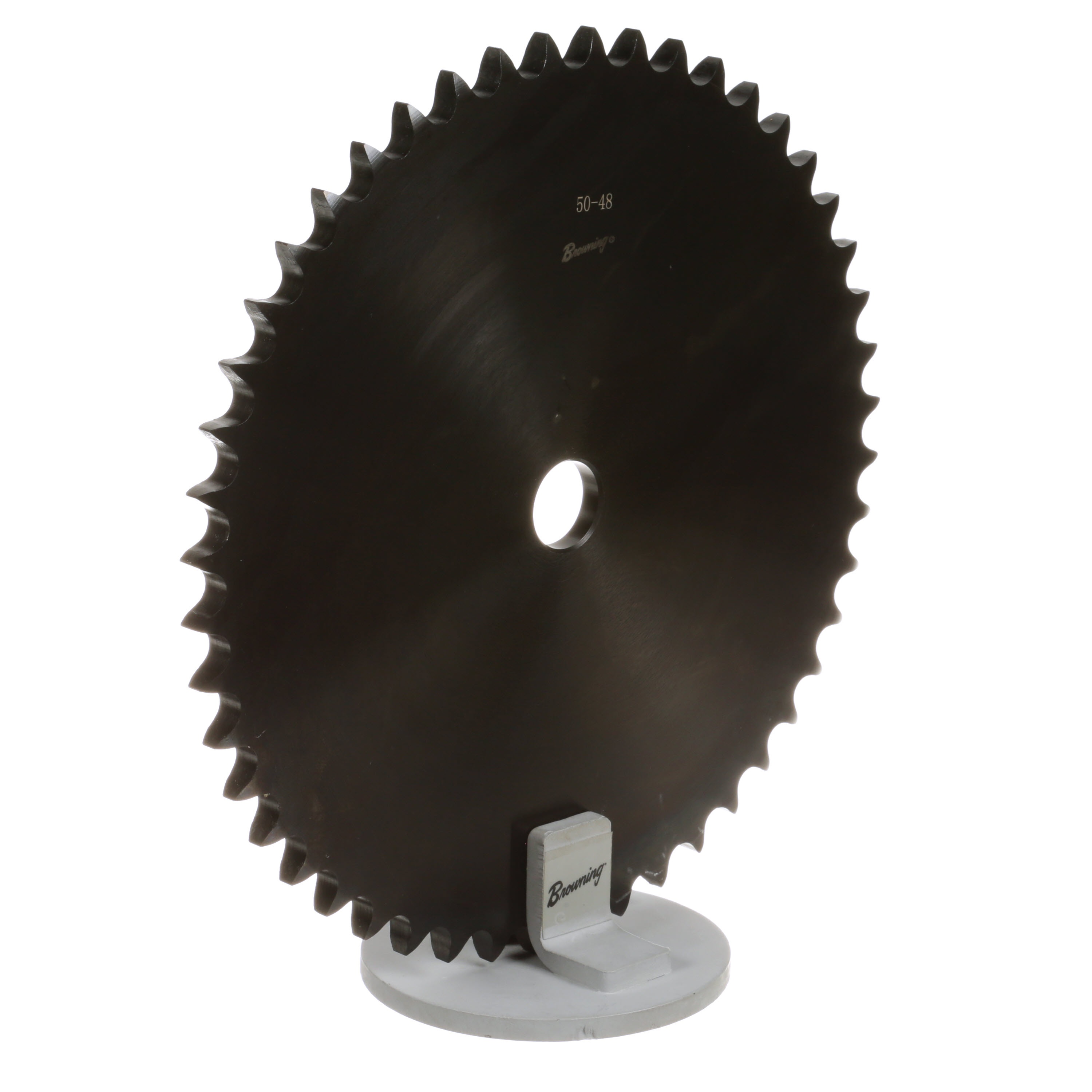

Browning® 1109073 Single Strand Plate Type A Roller Chain Sprocket, 15/16 in Dia Bore, 9.91 in OD, #50 Chain, 48 Teeth, 5/8 in Pitch, Steel
Browning® 1109073 Single Strand Plate Type A Roller Chain Sprocket, 15/16 in Dia Bore, 9.91 in OD, #50 Chain, 48 Teeth, 5/8 in Pitch, Steel
-
BrandBrowning®
-
UPC662289121670
-
Manufacturer Part Number1109073
-
CountryUSA
-
Pitch5/8 in
-
Pitch Diameter9.556 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand Plate Type A
-
Number of Teeth48
-
Outside Diameter9.91 in
-
Length Through Bore0.343 in
-
Bore Diameter15/16 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 5/8 in pitch ANSI chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
-
Alternative Part Number50A48
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
