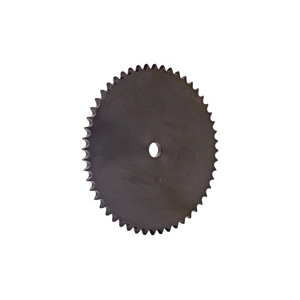

Browning® 1113679 Single Strand Plate Type A Roller Chain Sprocket, 15/16 in Dia Bore, 10.71 in OD, #50 Chain, 52 Teeth, 5/8 in Pitch, Steel
Browning® 1113679 Single Strand Plate Type A Roller Chain Sprocket, 15/16 in Dia Bore, 10.71 in OD, #50 Chain, 52 Teeth, 5/8 in Pitch, Steel
-
BrandBrowning®
-
UPC662289580705
-
Manufacturer Part Number1113679
-
CountryUSA
-
Pitch5/8 in
-
Pitch Diameter10.351 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand Plate Type A
-
Number of Teeth52
-
Outside Diameter10.71 in
-
Length Through Bore0.343 in
-
Bore Diameter15/16 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 5/8 in pitch ANSI chain
-
Alternative Part Number50A52
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
