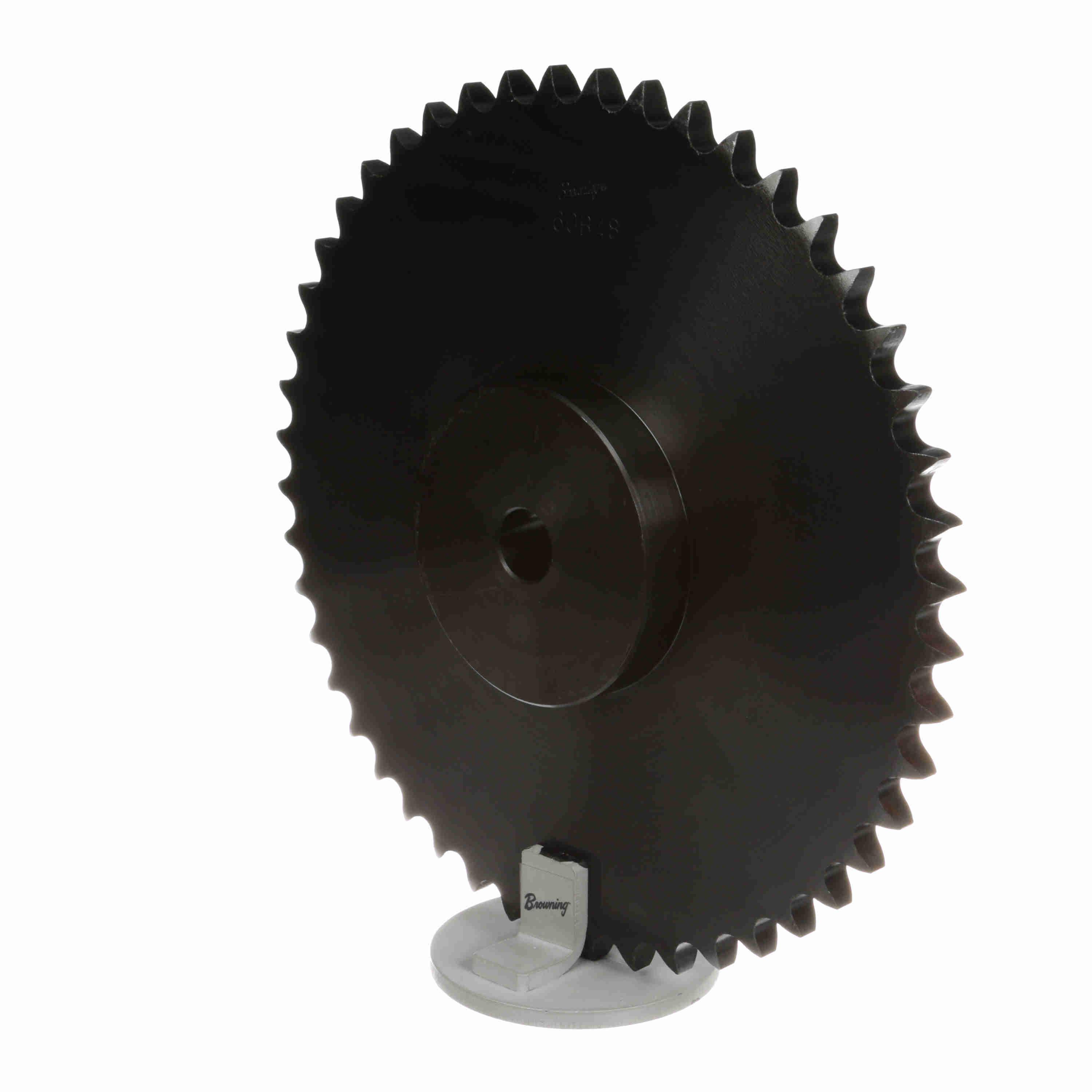

Browning® 1123389 Single Strand Minimum Bore Type B Roller Chain Sprocket, 15/16 in Dia Bore, 11.89 in OD, #60 Chain, 48 Teeth, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289160082
-
Manufacturer Part Number1123389
-
CountryUSA
-
Pitch Diameter11.467 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter4-1/4 in
-
Number of Teeth48
-
Outside Diameter11.89 in
-
Length Through Bore1-1/4 in
-
Bore Diameter15/16 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- For use with 3/4 in pitch ANSI chain
-
Alternative Part Number60B48
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
