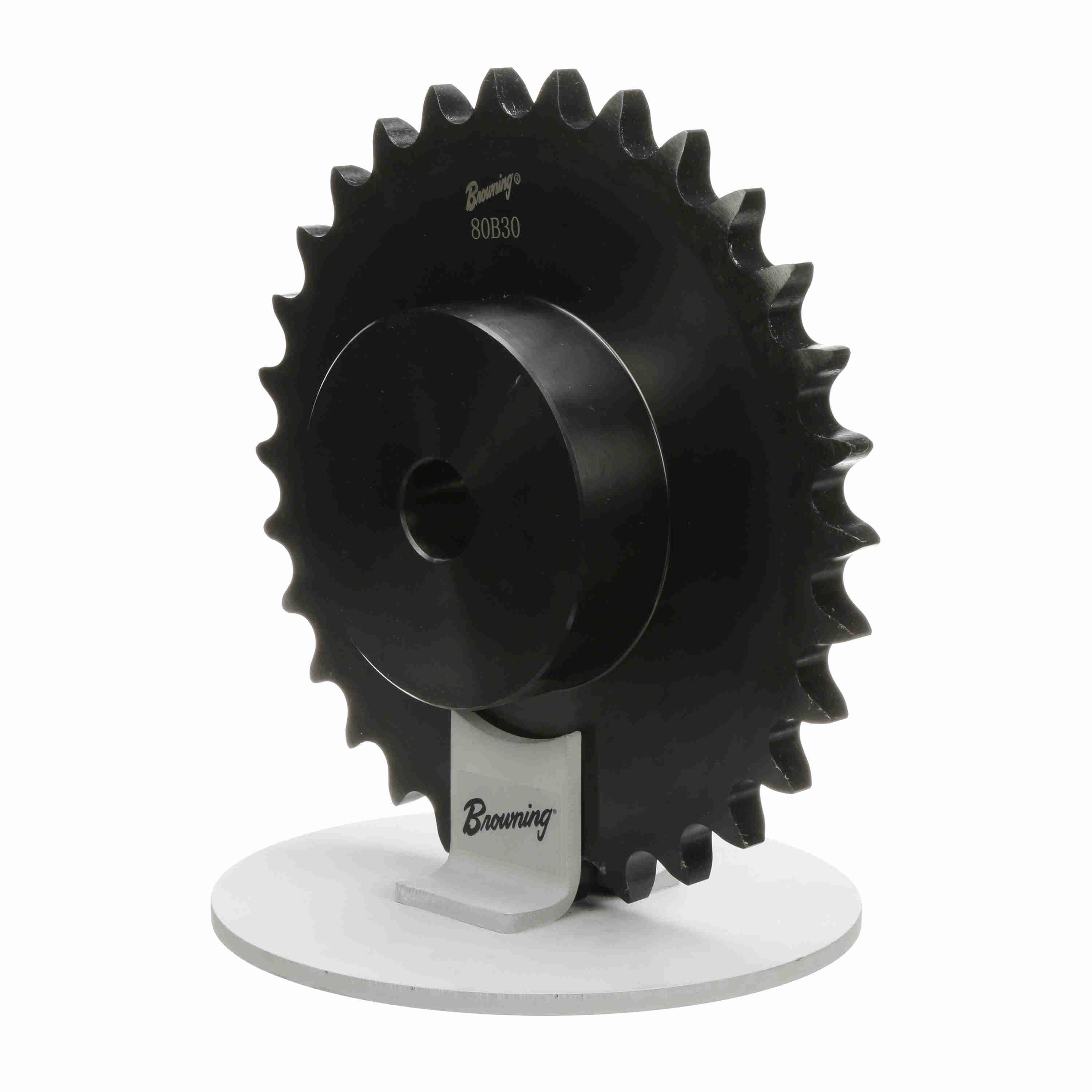

Browning® 1123744 Single Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth, 1-1/4 in Dia Bore, 10.11 in OD, #80 Chain, 30 Teeth, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289260386
-
Manufacturer Part Number1123744
-
CountryUSA
-
Pitch Diameter9.567 in
-
MaterialSteel
-
Chain Size#80
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter4-3/4 in
-
Number of Teeth30
-
Outside Diameter10.11 in
-
Length Through Bore2 in
-
Bore Diameter1-1/4 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- Hub is recessed for chain clearance
- For use with 1 in pitch ANSI chain
-
Alternative Part Number80B30
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
