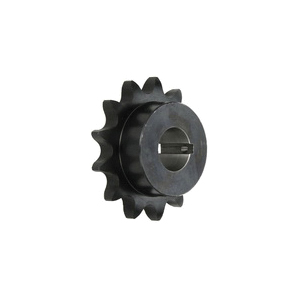

Browning 13-TOOTH #80-1 CHAIN SPROCKETS BRW H-8013 X 1-7/8
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289987474
-
Manufacturer Part Number1883834
-
CountryUSA
-
Pitch Diameter4.179 in
-
MaterialSteel
-
Chain Size#80
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter3.1563 in
-
Number of Teeth13
-
Outside Diameter4.66 in
-
Length Through Bore1-1/2 in
-
Bore Diameter1-7/8 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
-
Alternative Part NumberH8013X 1 7/8
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
