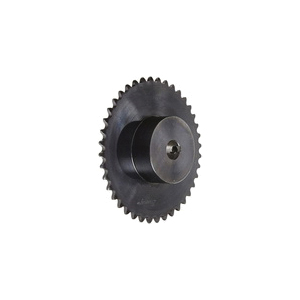

Browning® 1133453 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Keyway, 1-3/16 in Dia Bore, 5.38 in OD, #40 Chain, 32 Teeth, 1/2 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289411566
-
Manufacturer Part Number1133453
-
CountryUSA
-
Pitch Diameter5.101 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter3.266 in
-
Number of Teeth32
-
Outside Diameter5.38 in
-
Length Through Bore1 in
-
Bore Diameter1-3/16 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1/2 in pitch ANSI chain
-
Alternative Part Number4032X 1 3/16
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
