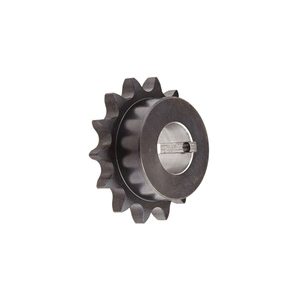

Browning 14-TOOTH #60-1 CHAIN SPROCKETS BRW H-6014 X 1.3/16
BrowningĀ® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowningĀ®
-
UPC662289985531
-
Manufacturer Part Number1882067
-
CountryUSA
-
Pitch Diameter3.37 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter2.578 in
-
Number of Teeth14
-
Outside Diameter3.74 in
-
Length Through Bore1-1/4 in
-
Bore Diameter1-3/16 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 3/4 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
-
Alternative Part NumberH6014X 1 3/16
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
