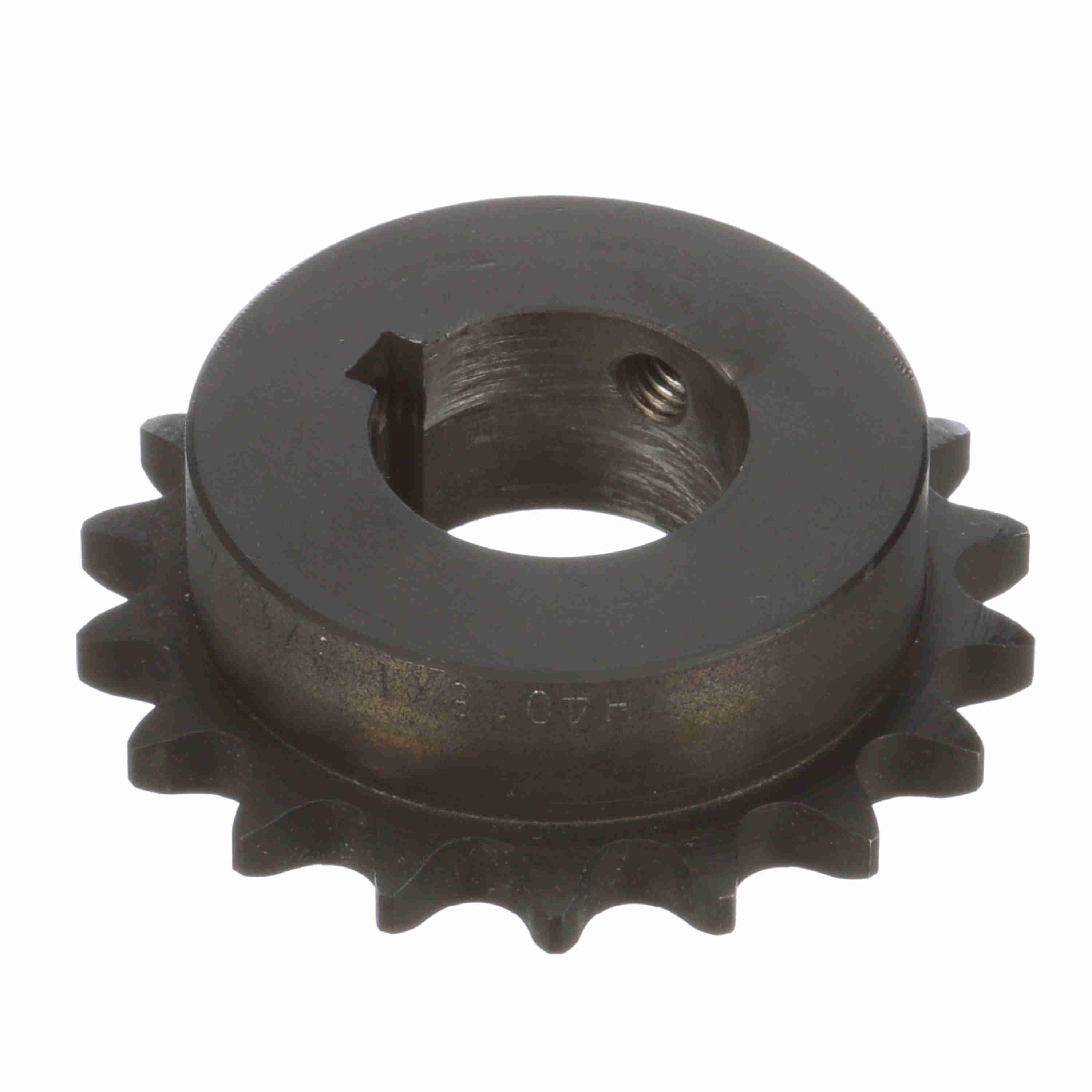

Browning® 1879691 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1-3/16 in Dia Bore, 3.14 in OD, #40 Chain, 18 Teeth, 1/2 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289983179
-
Manufacturer Part Number1879691
-
CountryUSA
-
Pitch Diameter2.879 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter2.391 in
-
Number of Teeth18
-
Outside Diameter3.14 in
-
Length Through Bore1 in
-
Bore Diameter1-3/16 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1/2 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
-
Alternative Part NumberH4018X 1 3/16
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
