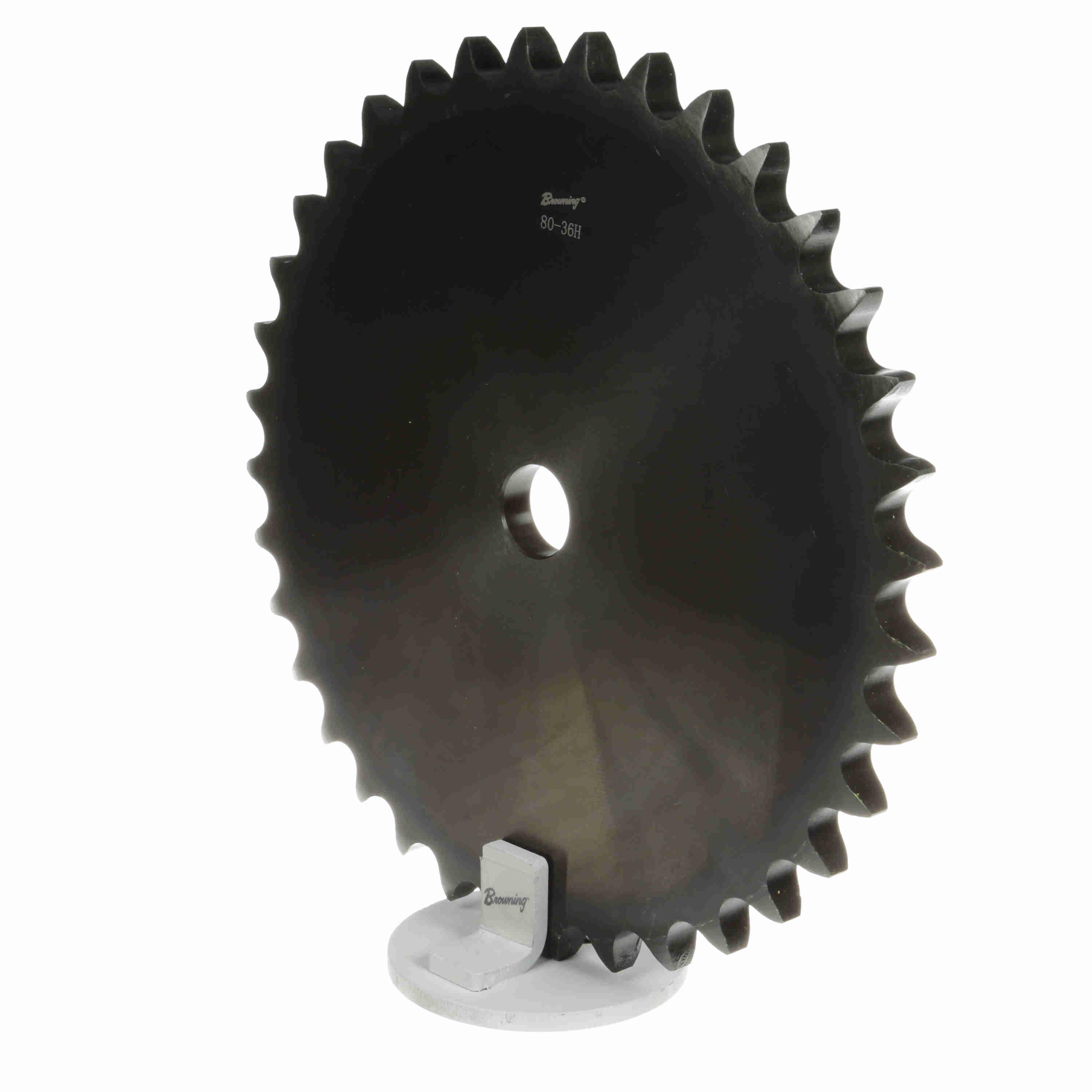

Browning® 1110006 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 1-3/16 in Dia Bore, 12.03 in OD, #80 Chain, 36 Teeth, 1 in Pitch, Steel
Browning® 1110006 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 1-3/16 in Dia Bore, 12.03 in OD, #80 Chain, 36 Teeth, 1 in Pitch, Steel
-
BrandBrowning®
-
UPC662289122486
-
Manufacturer Part Number1110006
-
CountryUSA
-
Pitch1 in
-
Pitch Diameter11.474 in
-
MaterialSteel
-
Chain Size#80
-
TypeSingle Strand Plate Type A
-
Number of Teeth36
-
Outside Diameter12.03 in
-
Length Through Bore0.575 in
-
Bore Diameter1-3/16 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 1 in pitch ANSI chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
-
Alternative Part Number80A36
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
