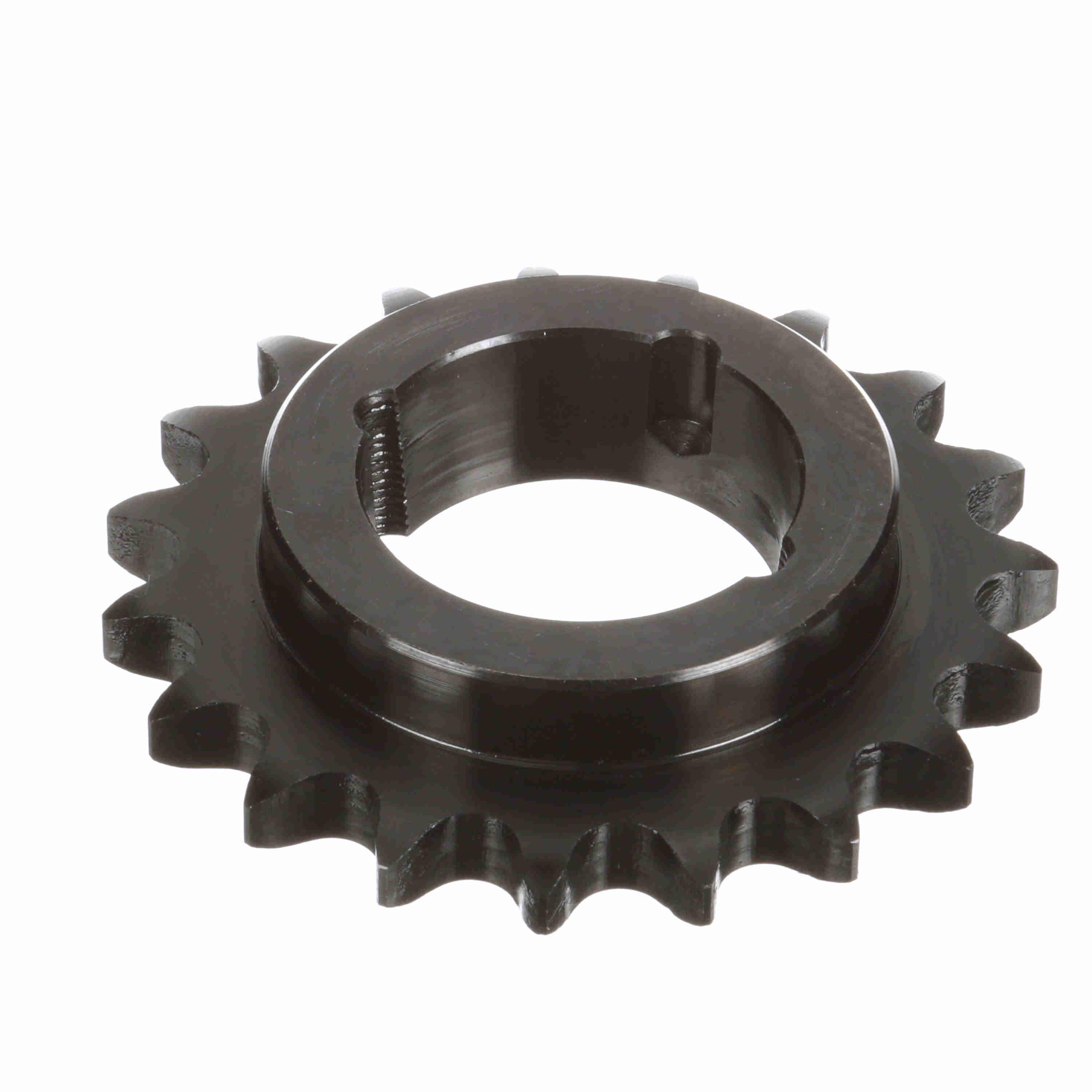

Browning® 3790706 Single Strand Taper Bore Bushed Type 1 Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 4.945 in OD, #60 Chain, 19 Teeth, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289229611
-
Manufacturer Part Number3790706
-
CountryUSA
-
Pitch Diameter4.557 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand Taper Bore Bushed Type 1
-
Hub Diameter3.016 in
-
Number of Teeth19
-
Outside Diameter4.945 in
-
Length Through Bore1 in
-
Bore Diameter1/2 in
-
Alternative Part NumberH60TB19
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
