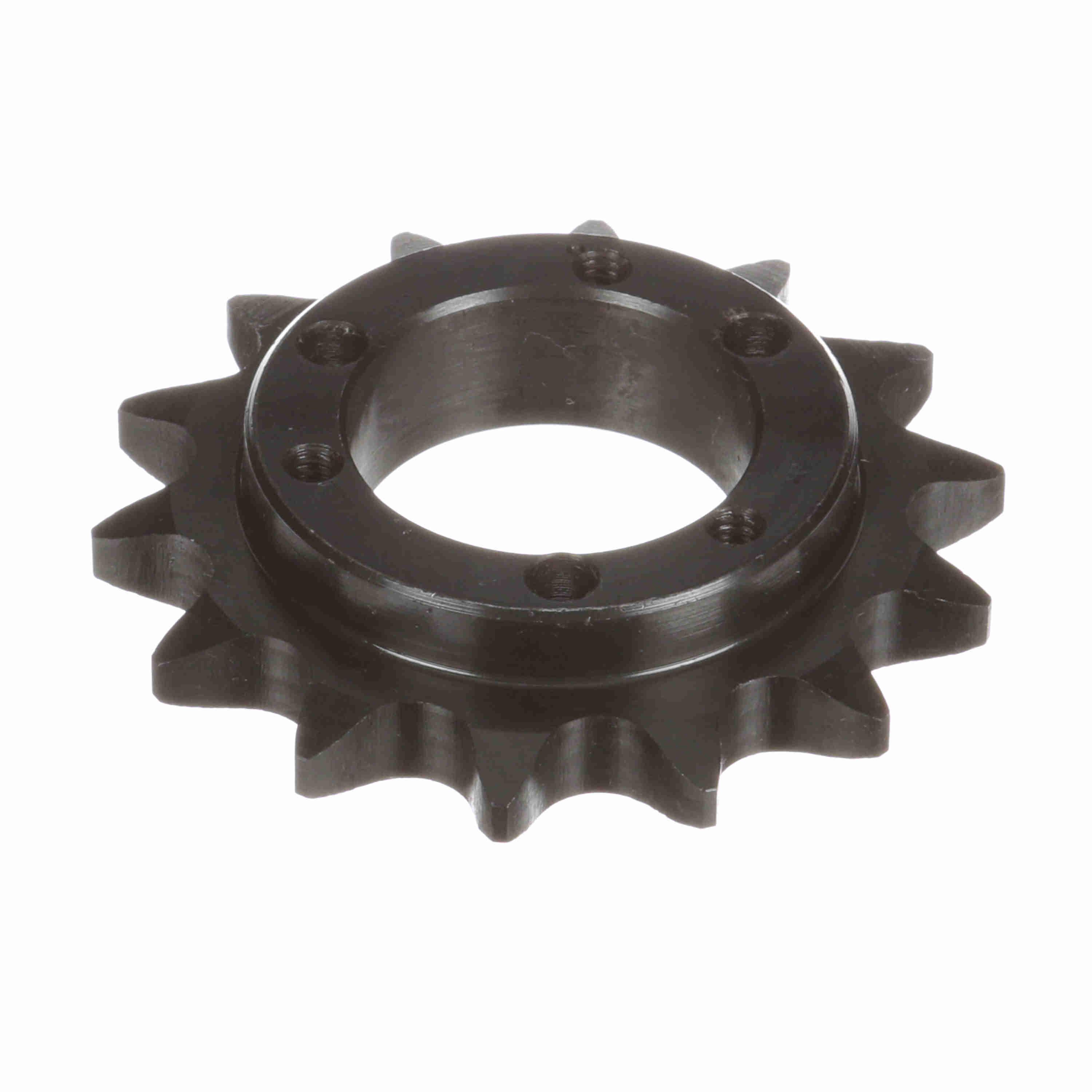

Browning® 3333390 Single Strand QD Bushed Type QD-1 Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 3.113 in OD, #50 Chain, 14 Teeth, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289243488
-
Manufacturer Part Number3333390
-
CountryUSA
-
Pitch Diameter2.809 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand QD Bushed Type QD-1
-
Hub Diameter2.015 in
-
Number of Teeth14
-
Outside Diameter3.113 in
-
Length Through Bore1.3365 in
-
Bore Diameter1/2 in
- This product has the Browning® exclusive twice the life guarantee
- Easy installation and removal
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- Reverse mounting possible
- For use with 5/8 in pitch ANSI chain
-
Alternative Part NumberH50JA14
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
